Linear Stage
AX-HP - Hi-Resolution Precision
★
Guidance System: Precision Cross Roller Guide Features a V-groove rail design with orthogonal rollers. The line-contact mechanism ensures ultra-high precision movement and exceptional load-bearing performance.
★
Transmission: Precision Ball Screw Utilizes high-efficiency rolling contact between the ball nut and screw to ensure superior positioning accuracy and an extended service life. It is engineered for high-speed bidirectional transmission and responsive motion reversal.
★
Material: Aluminum Alloy、Stainless Steel.
★
Model Shown: AX-HP - Hi-Resolution Precision
- Specifications
- Technical Data
- Image Download

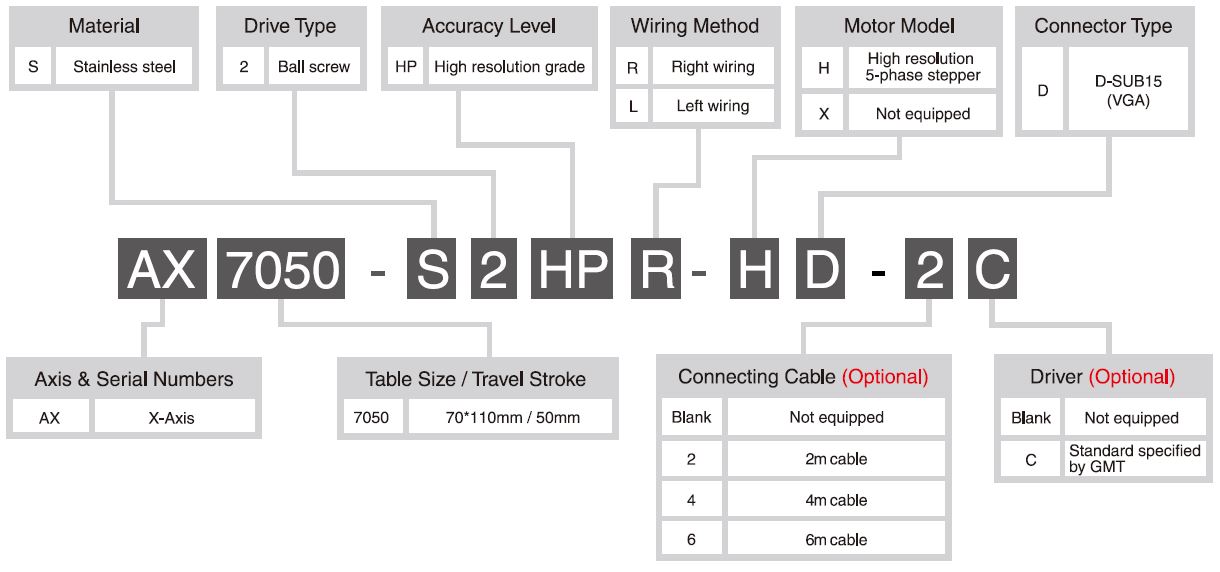

Total of 2 models
| Model | AX60100-50-S2HPR-MD | AX70110-50-S2HPR-MD |
|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry |
| Table Size (mm) | 60*100 | 70*110 |
| Travel Stroke (mm) | ±25 | ±25 |
| Drive Type | Ø6 ball screw, 1mm lead | Ø6 ball screw, 1mm lead |
| Rail | Linear ball guide | Linear ball guide |
| Stage Material | Stainless steel | Stainless steel |
| Surface Treatment | Chemical nickel plating | Chemical nickel plating |
| Main Unit Weight (Kg) | 1.12 | 1.3 |
| Coupling | FSMMS12-5*5 | FSMMS12-5*5 |
| Accuracy Level | HP: High-resolution power type | HP: High-resolution power type |
| Wiring Method | R : Right wiring | R : Right wiring |
| Wiring Method | L : Left wiring | L : Left wiring |
| Resolution(Pulse) (µm)_M | 1 (Full) / 0.5 (Half) | 1 (Full) / 0.5 (Half) |
| Resolution(Pulse) (µm)_J | 3 (Full) / 1 (Half) | 3 (Full) / 1 (Half) |
| Max. Speed(Full Step) (mm/sec) | 10 | 10 |
| Positioning Precision (µm) | 12 | 12 |
| Repeatability Precision(µm) | ± 0.5 | ± 0.5 |
| Load Capacity (Kgf) | 10 | 10 |
| Missed Step (µm) | 1 | 1 |
| Parallelism (µm) | 15 | 15 |
| Dynamic Straightness (µm) | 2 | 2 |
| Dynamic Parallelism (µm) | 10 | 10 |
| Motor Type / Output Shaft Type | M: Five-phase stepper high-resolution motor / 28 dual output shaft | M: Five-phase stepper high-resolution motor / 28 dual output shaft |
| Motor Type / Output Shaft Type | J: Five-phase stepper motor / 28 dual output shaft | J: Five-phase stepper motor / 28 dual output shaft |
| Motor Brand/Model | M: Orientalmotor/PKP523MN07B | M: Orientalmotor/PKP523MN07B |
| Motor Brand/Model | J: Orientalmotor / PKP523N12B | J: Orientalmotor / PKP523N12B |
| Driver brand/model | Orientalmotor / CVD Series - 5 Phase stepping motor (Additional options) | Orientalmotor / CVD Series - 5 Phase stepping motor (Additional options) |
| Connector_Stage side connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS |
| Connector - Controller Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS (optional) | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS (optional) |
| Sensor_Travel Origin Sensor | GMT sensor | GMT sensor |
| Sensor_Stroke Limit Sensor | GMT sensor | GMT sensor |
| Sensor - Motor Proximity Origin Sensor | GMT sensor | GMT sensor |
| Sensor_Power Voltage | 24V ± 10% | 24V ± 10% |
| Sensor Control Output | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA |
| Sensor Output Control | Detection (during sensing): Output transistor OFF (non-conducting) | Detection (during sensing): Output transistor OFF (non-conducting) |
Product Overview
System Configuration Diagram
♦ For selection of the drivers preferred, please refer to the reference table or the catalogue of Motor・Driver.
♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers according to real functional needs.
Axis Definition
GMT has defined different axis as the following figuration according to the movement direction:
Horizontal movement direction is X and Y axis.
Vertical movement direction is Z axis.
Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.
Green arrows present the specified axis movement direction.
Motor•driver Reference Table
Model
AX70110-50-S2PHR
