Liner Stage

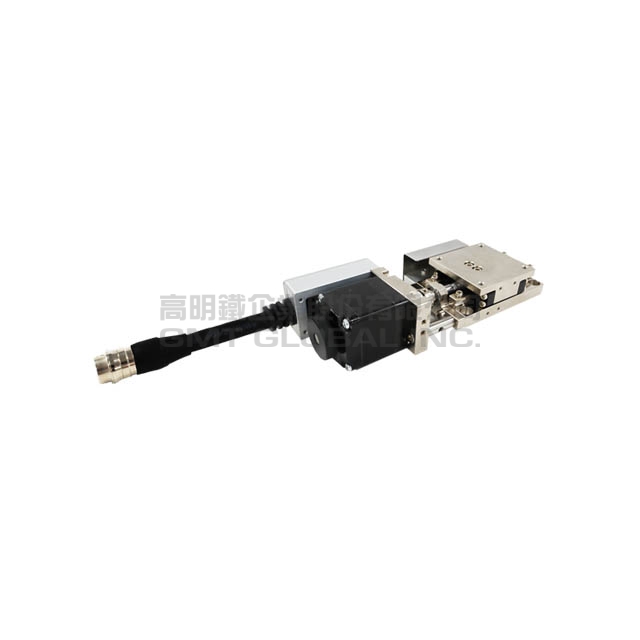

AX80-F Long Stroke | Slim Type
★
Patented Single-Wrap Ball Recirculation System.
★
Low Profile Design: Over 30% height reduction compared to standard long-stroke stages.
★
Extended Service Life
★
Material: Carbon Steel
- Specifications
- Technical Data
- Image Download
Total of 8 models
| Model | AX8015-F2NR | AX8015-F2NL | AX8030-F2NR | AX8030-F2NL | AX8050-F2NR | AX8050-F2NL | AX8075-F2NR | AX8075-F2NL |
|---|---|---|---|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Body width (mm) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Travel Stroke (mm) | 15 | 15 | 30 | 30 | 50 | 50 | 75 | 75 |
| Drive Type | Ø6 ball screw, 1mm lead | Ø6 ball screw, 1mm lead | Ø6 ball screw, 1mm lead | Ø6 ball screw, 1mm lead | Ø6 ball screw, 1mm lead | Ø6 ball screw, 1mm lead | Ø6 ball screw, 1mm lead | Ø6 ball screw, 1mm lead |
| Rail | Linear ball recirculating | Linear ball recirculating | Linear ball recirculating | Linear ball recirculating | Linear ball recirculating | Linear ball recirculating | Linear ball recirculating | Linear ball recirculating |
| Stage Material | carbon steel | carbon steel | carbon steel | carbon steel | carbon steel | carbon steel | carbon steel | carbon steel |
| Surface Treatment | Electroless nickel plating | Electroless nickel plating | Electroless nickel plating | Electroless nickel plating | Electroless nickel plating | Electroless nickel plating | Electroless nickel plating | Electroless nickel plating |
| Accuracy Level | Standard type | Standard type | Standard type | Standard type | Standard type | Standard type | Standard type | Standard type |
| Wiring Method | Right out of bounds | Left exit | Right out of bounds | Left exit | Right out of bounds | Left exit | Right out of bounds | Left exit |
| Maximum speed (mm/sec) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Positioning Precision (µm) | 15 | 15 | 15 | 15 | 15 | 15 | 18 | 18 |
| Repeatability Precision(µm) | ± 1 | ± 1 | ± 1 | ± 1 | ± 1 | ± 1 | ± 1 | ± 1 |
| Load Capacity (Kgf) | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Missed Step (µm) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Parallelism (µm) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Dynamic Straightness (µm) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Dynamic Parallelism (µm) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| motor | GMT / 2MS-N28D32A | GMT / 2MS-N28D32A | GMT / 2MS-N28D32A | GMT / 2MS-N28D32A | GMT / 2MS-N28D32A | GMT / 2MS-N28D32A | GMT / 2MS-N28D32A | GMT / 2MS-N28D32A |
| drive | GMT / GDL22G-D | GMT / GDL22G-D | GMT / GDL22G-D | GMT / GDL22G-D | GMT / GDL22G-D | GMT / GDL22G-D | GMT / GDL22G-D | GMT / GDL22G-D |
| connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS |
Product Overview
System Configuration Diagram
♦ For selection of the drivers preferred, please refer to the reference table or the catalogue of Motor・Driver.
♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers according to real functional needs.
Axis Definition
GMT has defined different axis as the following figuration according to the movement direction:
Horizontal movement direction is X and Y axis.
Vertical movement direction is Z axis.
Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.
Green arrows present the specified axis movement direction.

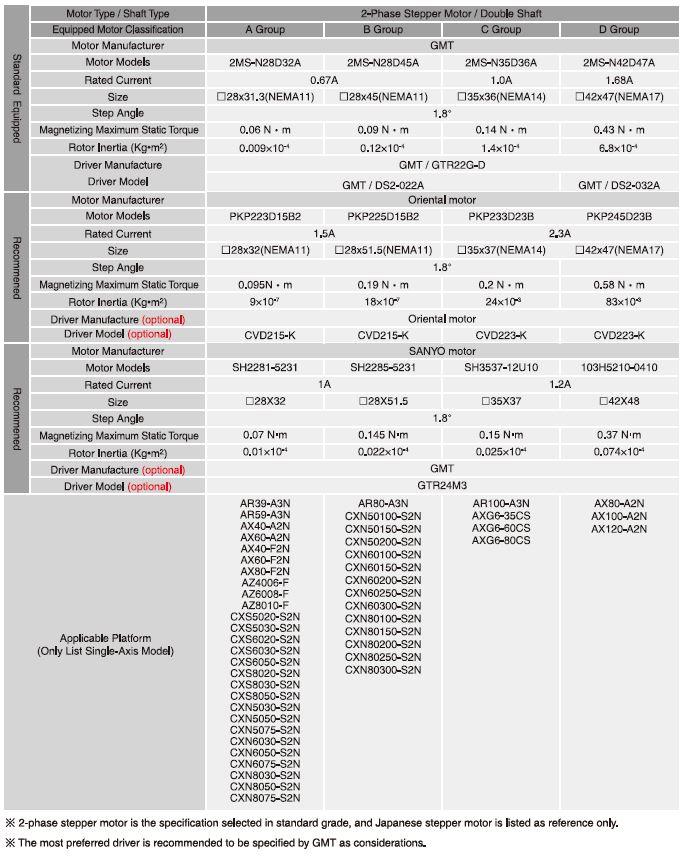

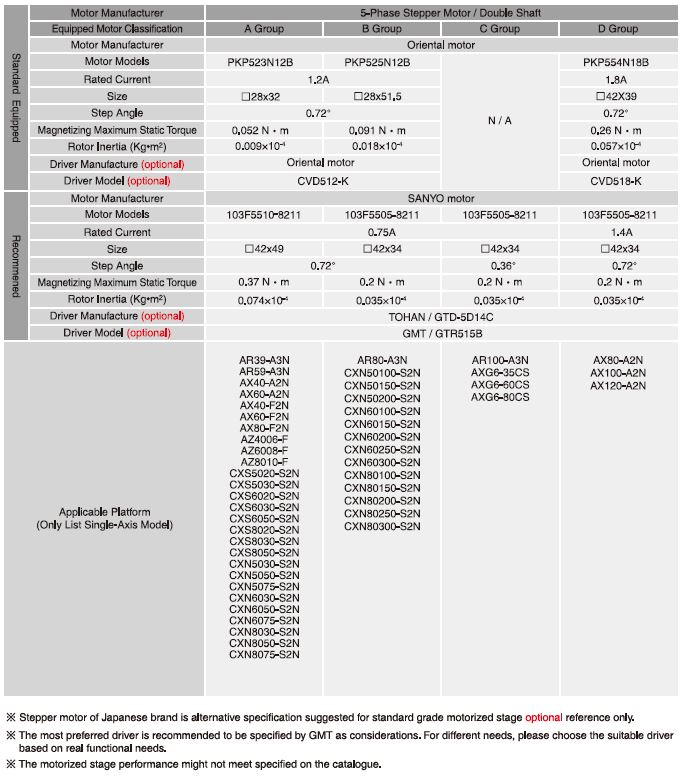

Motor•driver Reference Table
