GS15-W
- Specifications
- Technical Data
- Image Download
| Model | GS15-WN | GS15-WL |
|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry |
| Standard length (mm) | 70 / 110 / 150 / 190 / 230 / 270 / 310 / 350 / 390 / 430 / 470 / 510 / 550 / 590 / 630 / 670 / 710 / 750 / 790 | 70 / 110 / 150 / 190 / 230 / 270 / 310 / 350 / 390 / 430 / 470 / 510 / 550 / 590 / 630 / 670 / 710 / 750 / 790 |
| Countersunk hole spacing (P1) (mm) | 40 | 40 |
| Minimum end distance (P4, P5) (mm) | 4 | 4 |
| Maximum end distance (P4, P5) (mm) | 35 | 35 |
| Maximum length (L3) (mm) | 2000 | 2000 |
| Rail material | Stainless steel/carbon steel | Stainless steel/carbon steel |
| stager type | N: Standard stager | L: Extended stager |
| Combined dimensions H2 (mm) | 16 | 16 |
| Combined dimensions: W3 (mm) | 9 | 9 |
| Stage rail size_W2 (mm) | 42 | 42 |
| Stage rail dimension H1 (mm) | 9.5 | 9.5 |
| Stage rail dimensions_P1 (mm) | 40 | 40 |
| Stage rail dimensions_P4 (mm) | twenty three | twenty three |
| Stage rail dimensions: ØD*Ød*h1 (mm) | 8*4.5*4.5 | 8*4.5*4.5 |
| Stager size_W1 (mm) | 60 | 60 |
| Stager size_L1 (mm) | 55.3 | 74.4 |
| Stager size_L2 (mm) | 38.5 | 57.6 |
| Stager size H3 (mm) | 12 | 12 |
| Stager size_P2 (mm) | 20 | 35 |
| Stager size_P3 (mm) | 45 | 45 |
| Stager size_M*h2 | M4*4.5 | M4*4.5 |
| Rated load_C (N) | 4812 | 6389 |
| Rated load_C0 (N) | 7966 | 11951 |
| Static torque_MR(Nm) | 163.1 | 244.7 |
| Static torque_MP(Nm) | 43.4 | 88.4 |
| Static torque_MY(Nm) | 43.4 | 88.4 |
| Weight_Stager (g) | 134 | 196 |
| Weight of stage rail (g/m) | 2762 | 2762 |
Specification Introduction
Product Structure
Product Character
♦ 4 contact points formed by circulated ball bearings in 45 degrees contact to the guide rail surface to produce an even-loading performance of each side of the guide.
♦ Circulation system is a plastic part designed to reduce friction noise during block running.
♦ End and bottom seals design to prevent dust and foreign objects entering from block running, to extend product usage life.
♦ Steel balls are provided with steel wire retainers to prevent the ball falling.
♦ With stable precision control, the same type of rails could be interchanged, and keep the same smoothness, accuracy, preload, and it is also convenient for assembly and maintenance.
♦ The steel balls used in this series are all stainless steel material.
【Standard width rail】
- Fit to low profile equipment.
- Stainless steel material.
- High rigidity and accuracy.
- Including retainer.
【Wide width rail】
- Suitable for single axis usage.
- High capacity.
- High rigidity and accuracy.
- Stainless steel material.
- Including retainer.
【Carbon steel rail】
- Economical.
- Good anti-rust ability on the surface.
- Same size as stainless steel series.
Mounting Method

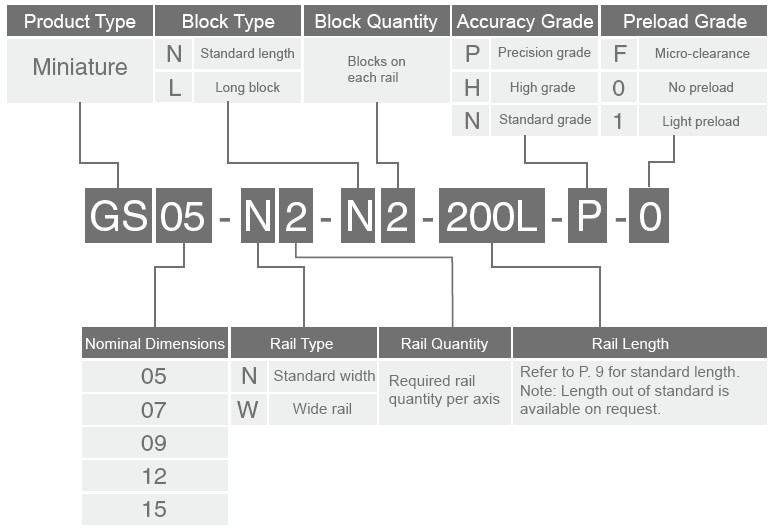

Model
