GS05-W
- Specifications
- Technical Data
- Image Download
| Model | GS05-WN | GS05-WL |
|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry |
| Standard length (mm) | 50 / 70 / 90 / 110 / 130 / 150 / 170 | 50 / 70 / 90 / 110 / 130 / 150 / 170 |
| Countersunk hole spacing (P1) (mm) | 20 | 20 |
| Minimum end distance (P4, P5) (mm) | 4 | 4 |
| Maximum end distance (P4, P5) (mm) | 15 | 15 |
| Maximum length (L3) (mm) | 500 | 500 |
| Rail material | Stainless steel | Stainless steel |
| stager type | N: Standard stager | L: Extended stager |
| Combined dimensions H2 (mm) | 6.5 | 6.5 |
| Combined dimensions: W3 (mm) | 3.5 | 3.5 |
| Stage rail size_W2 (mm) | 10 | 10 |
| Stage rail dimension H1 (mm) | 4 | 4 |
| Stage rail dimensions_P1 (mm) | 20 | 20 |
| Stage rail dimensions: ØD*Ød*h1 (mm) | 5.5*3*1.6 | 5.5*3*1.6 |
| Stager size_W1 (mm) | 17 | 17 |
| Stager size_L1 (mm) | 21.1 | 27.2 |
| Stager size_L2 (mm) | 15.1 | 21.2 |
| Stager size H3 (mm) | 5 | 5 |
| Stager size_P2 (mm) | 6.5 | 11 |
| Stager size_P3 (mm) | 13 | 13 |
| Stager size_M*h2 | M2.5*1.5 | M2.5*1.5 |
| Rated load_C (N) | 451 | 584 |
| Rated load_C0 (N) | 855 | 1249 |
| Static torque_MR(Nm) | 4.4 | 6.5 |
| Static torque_MP(Nm) | 2.1 | 3.9 |
| Static torque_MY(Nm) | 2.1 | 3.9 |
| Weight_Stager (g) | 6 | 8 |
| Weight of stage rail (g/m) | 274 | 274 |
Specification Introduction

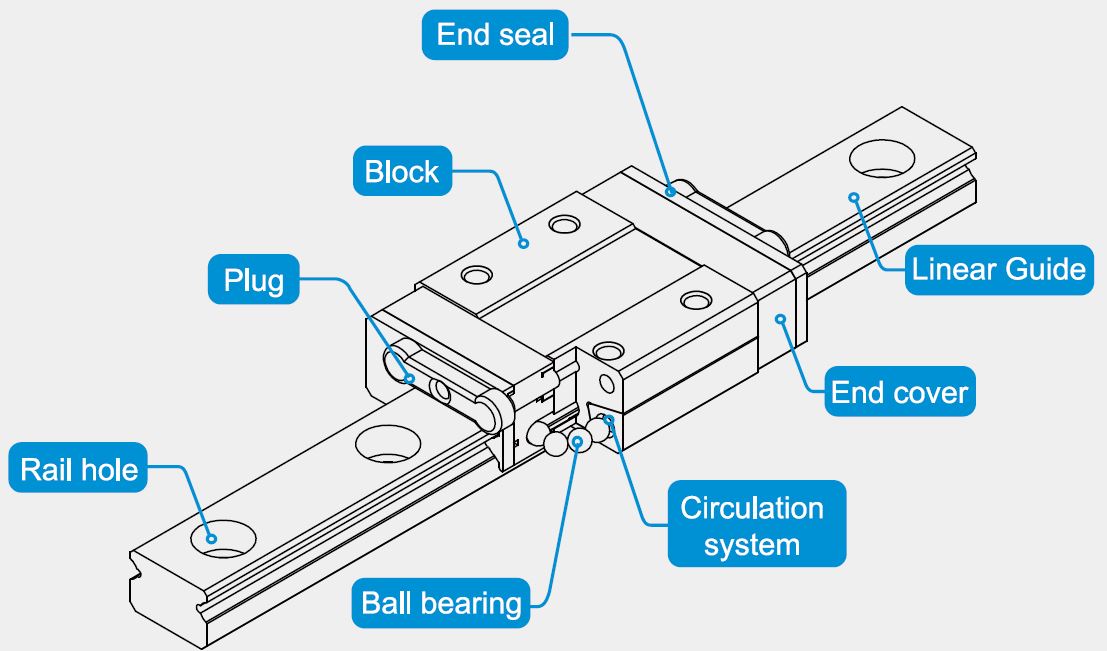

Product Structure
Product Character
♦ 4 contact points formed by circulated ball bearings in 45 degrees contact to the guide rail surface to produce an even-loading performance of each side of the guide.
♦ Circulation system is a plastic part designed to reduce friction noise during block running.
♦ End and bottom seals design to prevent dust and foreign objects entering from block running, to extend product usage life.
♦ Steel balls are provided with steel wire retainers to prevent the ball falling.
♦ With stable precision control, the same type of rails could be interchanged, and keep the same smoothness, accuracy, preload, and it is also convenient for assembly and maintenance.
♦ The steel balls used in this series are all stainless steel material.
【Standard width rail】
- Fit to low profile equipment.
- Stainless steel material.
- High rigidity and accuracy.
- Including retainer.
【Wide width rail】
- Suitable for single axis usage.
- High capacity.
- High rigidity and accuracy.
- Stainless steel material.
- Including retainer.
【Carbon steel rail】
- Economical.
- Good anti-rust ability on the surface.
- Same size as stainless steel series.

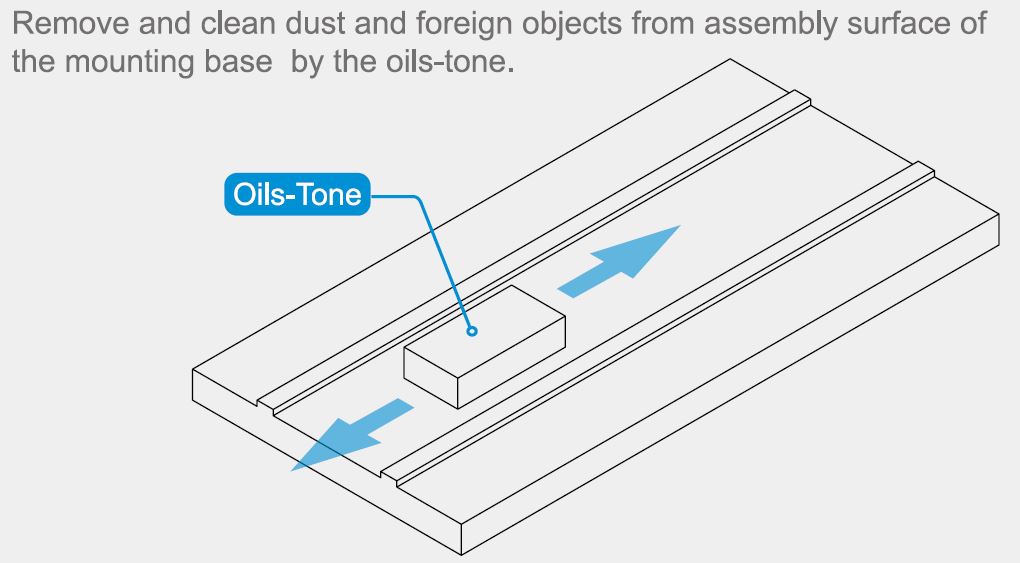

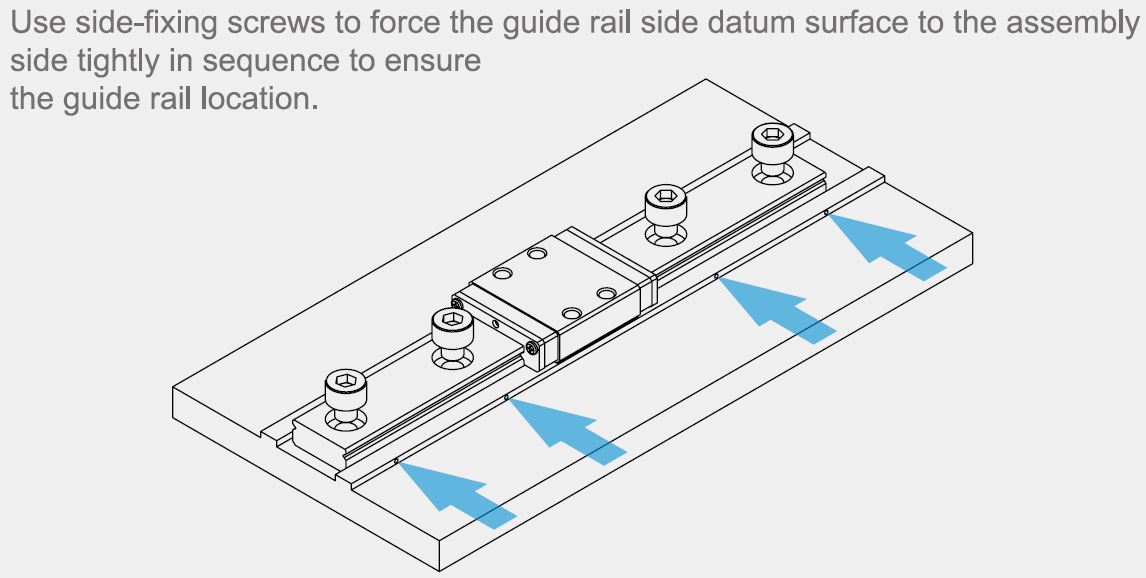

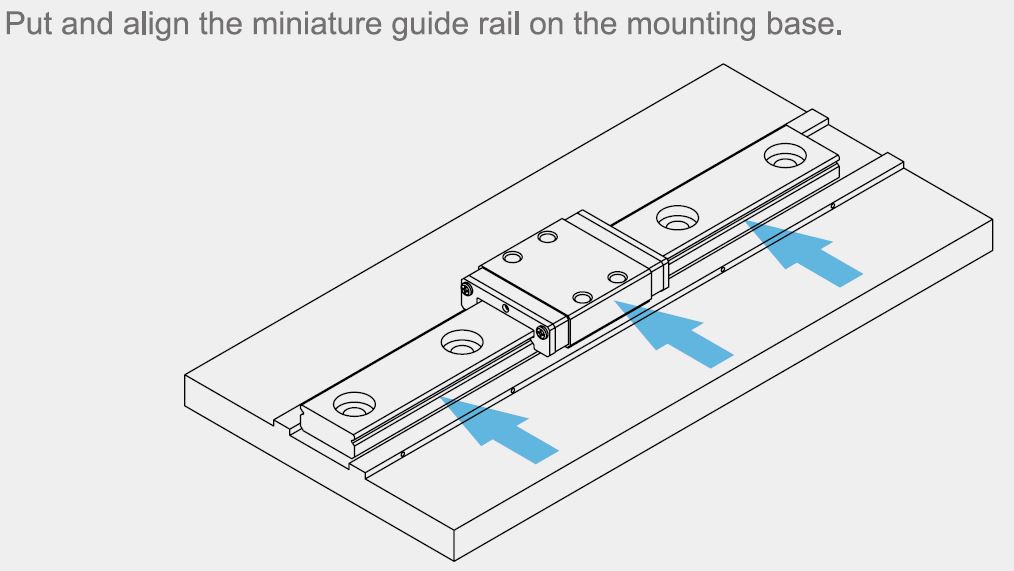

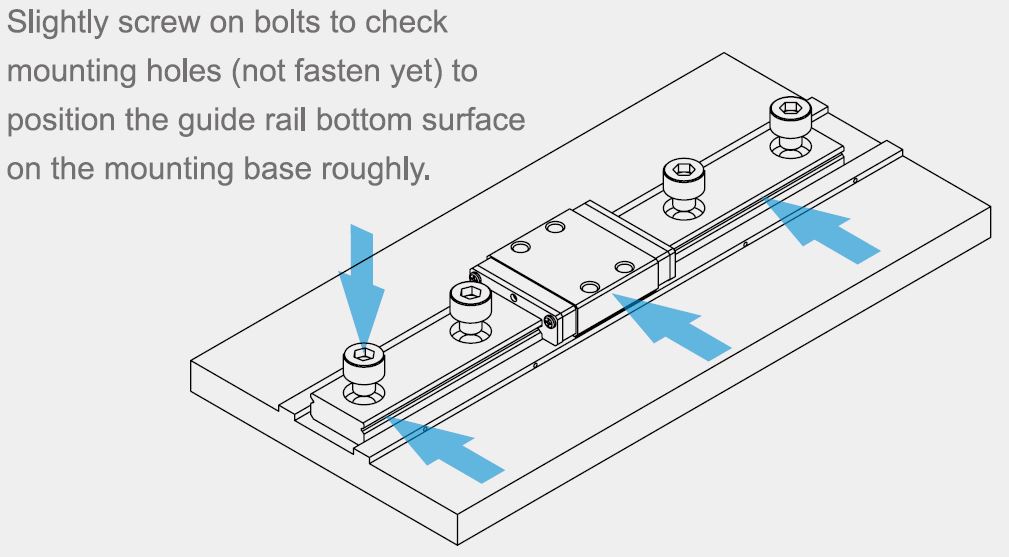

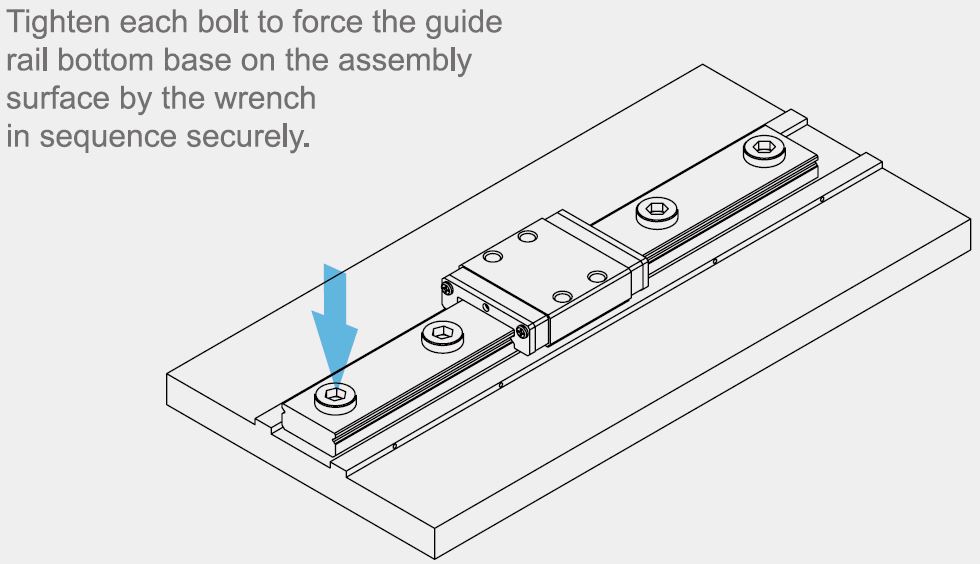

Mounting Method
