Precision inner guide pillars, guide sleeves, and cover plates for stripper plates.
All Precision guide post and guide sleeve cover plate for stripper plate Precision stripper guide post High rigidity stripper plate guide post Precision stripper guide sleeve Oil-free guide sleeve Sub-precision stripper plate guide post sleeve

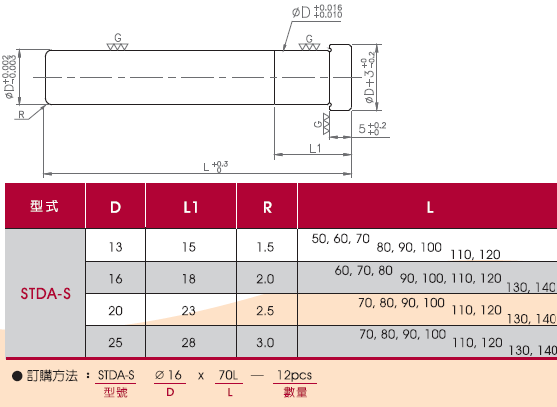

STDA-S

STDA-S
★Sub-precision stripper guide post★Sub-precision shoulder-type guide post★Material: SUJ2 ★Hardness: HRC60~62
  • Specifications
  • Technical Data
  • Image Download
Total of 33 models
Model STDAS1350 STDAS1360 STDAS1370 STDAS1380 STDAS1390 STDAS13100 STDAS13110 STDAS13120 STDAS1660 STDAS1670 STDAS1680 STDAS1690 STDAS16100 STDAS16110 STDAS16120 STDAS16130 STDAS16140 STDAS2070 STDAS2080 STDAS2090 STDAS20100 STDAS20110 STDAS20120 STDAS20130 STDAS20140 STDAS2570 STDAS2580 STDAS2590 STDAS25100 STDAS25110 STDAS25120 STDAS25130 STDAS25140
Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry
Type Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post Sub-precision shoulder-shaped guide post
Material SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2
hardness HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62
outer diameter of guide post ØD (mm) 13 13 13 13 13 13 13 13 16 16 16 16 16 16 16 16 16 20 20 20 20 20 20 20 20 25 25 25 25 25 25 25 25
L1(mm) 15 15 15 15 15 15 15 15 18 18 18 18 18 18 18 18 18 twenty three twenty three twenty three twenty three twenty three twenty three twenty three twenty three 28 28 28 28 28 28 28 28
R(mm) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2 2 2 2 2 2 2 2 2 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 3 3 3 3 3 3 3 3
L(mm) 50 60 70 80 90 100 110 120 60 70 80 90 100 110 120 130 140 70 80 90 100 110 120 130 140 70 80 90 100 110 120 130 140
Product Specifications

Model

STDAS1350
STDAS1360
STDAS1370
STDAS1380
STDAS1390
STDAS13100
STDAS13110
STDAS13120
STDAS1660
STDAS1670
STDAS1680
STDAS1690
STDAS16100
STDAS16110
STDAS16120
STDAS16130
STDAS16140
STDAS2070
STDAS2080
STDAS2090
STDAS20100
STDAS20110
STDAS20120
STDAS20130
STDAS20140
STDAS2570
STDAS2580
STDAS2590
STDAS25100
STDAS25110
STDAS25120
STDAS25130
STDAS25140
Specifications
Type
Material
hardness
outer diameter of guide post ØD (mm)
L1(mm)
R(mm)
L(mm)
