Precision inner guide pillars, guide sleeves, and cover plates for stripper plates.
STAA-S
★Sub-precision stripper plate guide post★Sub-precision straight guide post★Material: SUJ2 ★Hardness: HRC60~62
- Specifications
- Technical Data
- Image Download
Total of 33 models
| Model | STAAS1350 | STAAS1360 | STAAS1370 | STAAS1380 | STAAS1390 | STAAS13100 | STAAS13110 | STAAS13120 | STAAS1660 | STAAS1670 | STAAS1680 | STAAS1690 | STAAS16100 | STAAS16110 | STAAS16120 | STAAS16130 | STAAS16140 | STAAS2070 | STAAS2080 | STAAS2090 | STAAS20100 | STAAS20110 | STAAS20120 | STAAS20130 | STAAS20140 | STAAS2570 | STAAS2580 | STAAS2590 | STAAS25100 | STAAS25110 | STAAS25120 | STAAS25130 | STAAS25140 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Type | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post | Sub-precision straight guide post |
| Material | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 |
| hardness | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 | HRC60~62 |

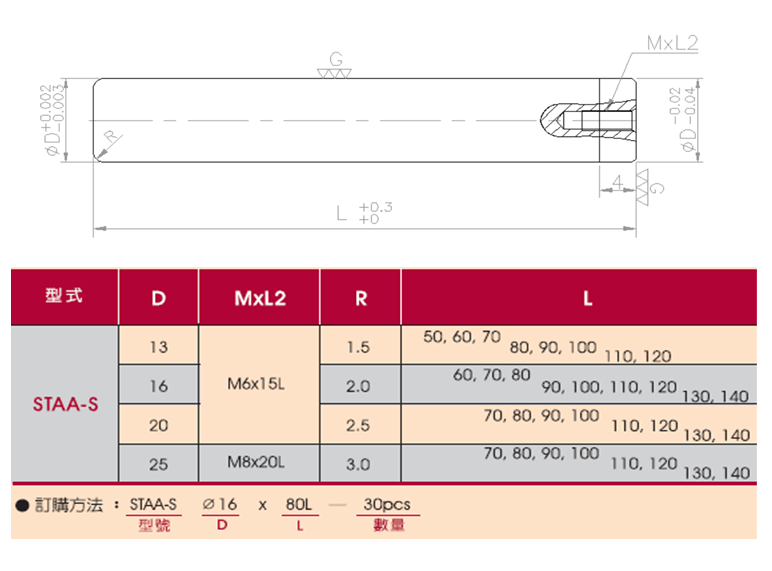

| outer diameter of guide post ØD (mm) | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| MxL2(mm) | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M6x15L | M8x20L | M8x20L | M8x20L | M8x20L | M8x20L | M8x20L | M8x20L | M8x20L |
| R(mm) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| L(mm) | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 |
Product Specifications
Model
STAAS1350
STAAS1360
STAAS1370
STAAS1380
STAAS1390
STAAS13100
STAAS13110
STAAS13120
STAAS1660
STAAS1670
STAAS1680
STAAS1690
STAAS16100
STAAS16110
STAAS16120
STAAS16130
STAAS16140
STAAS2070
STAAS2080
STAAS2090
STAAS20100
STAAS20110
STAAS20120
STAAS20130
STAAS20140
STAAS2570
STAAS2580
STAAS2590
STAAS25100
STAAS25110
STAAS25120
STAAS25130
STAAS25140
