Precision inner guide pillars, guide sleeves, and cover plates for stripper plates.
All Precision guide post and guide sleeve cover plate for stripper plate Precision stripper guide post High rigidity stripper plate guide post Precision stripper guide sleeve Oil-free guide sleeve Sub-precision stripper plate guide post sleeve

GMAB-S

GMAB-S

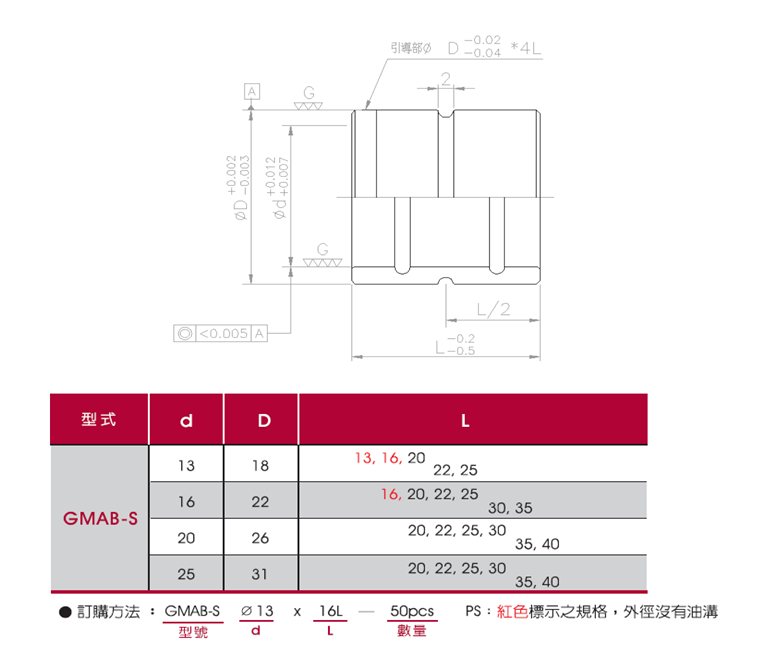

★Sub-precision stripper guide bushing★Sub-precision straight guide bushing★(Specifications marked in red, no oil groove on the outer diameter) ★Material: SUJ2 ★Hardness: HRC60~62
  • Specifications
  • Technical Data
  • Image Download
Total of 23 models
Model GMABS1313 GMABS1316 GMABS1320 GMABS1322 GMABS1325 GMABS1616 GMABS1620 GMABS1622 GMABS1625 GMABS1630 GMABS1635 GMABS2020 GMABS2022 GMABS2025 GMABS2030 GMABS2035 GMABS2040 GMABS2520 GMABS2522 GMABS2525 GMABS2530 GMABS2535 GMABS2540
Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry
Type Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve Sub-precision straight guide sleeve
Material SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2
hardness HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62
Guide sleeve inner diameter Ød (mm) 13 13 13 13 13 16 16 16 16 16 16 20 20 20 20 20 20 25 25 25 25 25 25
ØD(mm) 18 18 18 18 18 twenty two twenty two twenty two twenty two twenty two twenty two 26 26 26 26 26 26 31 31 31 31 31 31
L(mm) 13 16 20 twenty two 25 16 20 twenty two 25 30 35 20 twenty two 25 30 35 40 20 twenty two 25 30 35 40
Outer diameter oil groove none none have have have none have have have have have have have have have have have have have have have have have
Product Specifications

Model

GMABS1313
GMABS1316
GMABS1320
GMABS1322
GMABS1325
GMABS1616
GMABS1620
GMABS1622
GMABS1625
GMABS1630
GMABS1635
GMABS2020
GMABS2022
GMABS2025
GMABS2030
GMABS2035
GMABS2040
GMABS2520
GMABS2522
GMABS2525
GMABS2530
GMABS2535
GMABS2540
Specifications
Type
Material
hardness
Guide sleeve inner diameter Ød (mm)
ØD(mm)
L(mm)
Outer diameter oil groove
