Precision inner guide pillars, guide sleeves, and cover plates for stripper plates.
All Precision guide post and guide sleeve cover plate for stripper plate Precision stripper guide post High rigidity stripper plate guide post Precision stripper guide sleeve Oil-free guide sleeve Sub-precision stripper plate guide post sleeve

GMAA-S

GMAA-S

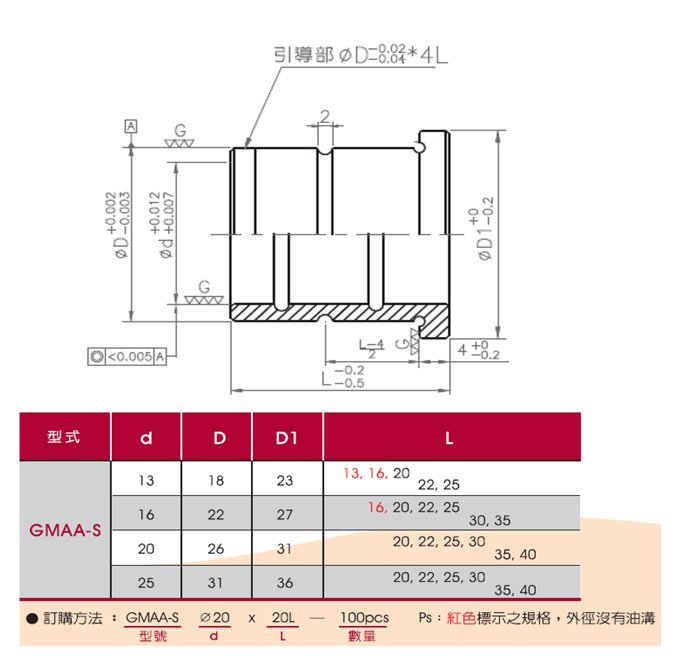

★Sub-precision stripper guide bushing★Sub-precision shoulder-type guide bushing★(Specifications marked in red, no oil groove on the outer diameter) ★Material: SUJ2 ★Hardness: HRC60~62
  • Specifications
  • Technical Data
  • Image Download
Total of 23 models
Model GMAAS1313 GMAAS1316 GMAAS1320 GMAAS1322 GMAAS1325 GMAAS1616 GMAAS1620 GMAAS1622 GMAAS1625 GMAAS1630 GMAAS1635 GMAAS2020 GMAAS2022 GMAAS2025 GMAAS2030 GMAAS2035 GMAAS2040 GMAAS2520 GMAAS2522 GMAAS2525 GMAAS2530 GMAAS2535 GMAAS2540
Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry
Type Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve Sub-precision shoulder-shaped guide sleeve
Material SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2
hardness HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62 HRC60~62
Guide sleeve inner diameter Ød (mm) 13 13 13 13 13 16 16 16 16 16 16 20 20 20 20 20 20 25 25 25 25 25 25
ØD(mm) 18 18 18 18 18 twenty two twenty two twenty two twenty two twenty two twenty two 26 26 26 26 26 26 31 31 31 31 31 31
ØD1(mm) twenty three twenty three twenty three twenty three twenty three 27 27 27 27 27 27 31 31 31 31 31 31 36 36 36 36 36 36
L(mm) 13 16 20 twenty two 25 16 20 twenty two 25 30 35 20 twenty two 25 30 35 40 20 twenty two 25 30 35 40
Outer diameter oil groove none none have have have none have have have have have have have have have have have have have have have have have
Product Specifications

Model

GMAAS1313
GMAAS1316
GMAAS1320
GMAAS1322
GMAAS1325
GMAAS1616
GMAAS1620
GMAAS1622
GMAAS1625
GMAAS1630
GMAAS1635
GMAAS2020
GMAAS2022
GMAAS2025
GMAAS2030
GMAAS2035
GMAAS2040
GMAAS2520
GMAAS2522
GMAAS2525
GMAAS2530
GMAAS2535
GMAAS2540
Specifications
Type
Material
hardness
Guide sleeve inner diameter Ød (mm)
ØD(mm)
ØD1(mm)
L(mm)
Outer diameter oil groove
