Mold base parts
STY
★Guide sleeve accessories★Guide sleeve pressure plate★Material: S50C + electroplating treatment
- Specifications
- Technical Data
- Image Download
Total of 3 models

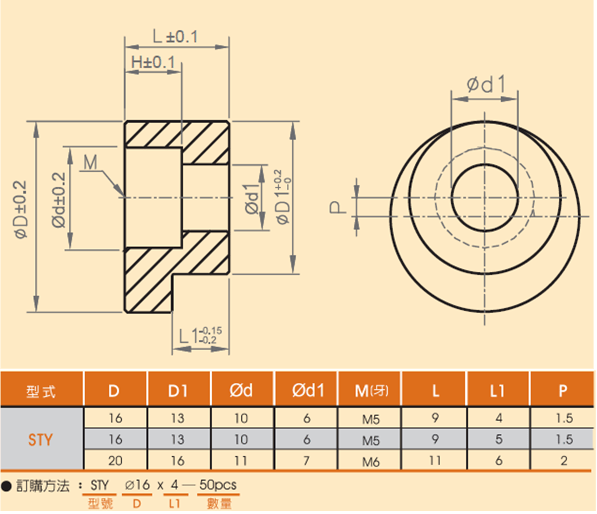

| Model | STY1694 | STY1695 | STY20116 |
|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| name | Guide sleeve pressure plate | Guide sleeve pressure plate | Guide sleeve pressure plate |
| Material | S50C+ Electroplating Treatment | S50C+ Electroplating Treatment | S50C+ Electroplating Treatment |
| ØD(mm) | 16 | 16 | 20 |
| ØD1(mm) | 13 | 13 | 16 |
| M (teeth) | M5 | M5 | M6 |
| M (teeth) | 10 | 10 | 11 |
| Ød1(mm) | 6 | 6 | 7 |
| L(mm) | 9 | 9 | 11 |
| L1(mm) | 4 | 5 | 6 |
| P(mm) | 1.5 | 1.5 | 2 |
