Precision inner guide pillars, guide sleeves, and cover plates for stripper plates.
GMFA

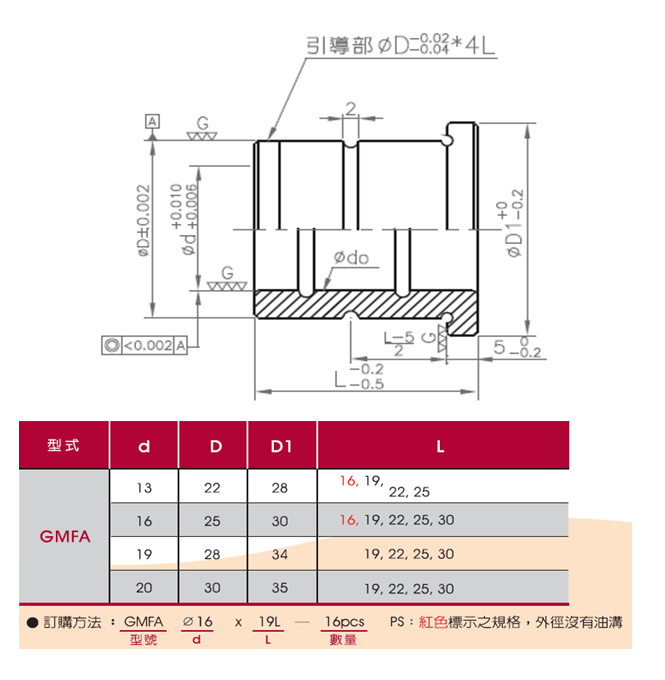

★Precision Grade Stripper Plate Guide Bushing★Precision Grade Shoulder-Type Guide Bushing★(Specifications marked in red, outer diameter without oil grooves) ★Material: SUJ2 ★Hardness: HRC60~62+ Cryogenic
- Specifications
- Technical Data
- Image Download
Total of 17 models
| Model | GMFA1316 | GMFA1319 | GMFA1322 | GMFA1325 | GMFA1616 | GMFA1619 | GMFA1622 | GMFA1625 | GMFA1630 | GMFA1919 | GMFA1922 | GMFA1925 | GMFA1930 | GMFA2019 | GMFA2022 | GMFA2025 | GMFA2030 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Type | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve | Precision-grade shoulder guide sleeve |
| Material | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 |
| hardness | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic |
| Guide sleeve inner diameter Ød (mm) | 13 | 13 | 13 | 13 | 16 | 16 | 16 | 16 | 16 | 19 | 19 | 19 | 19 | 20 | 20 | 20 | 20 |
| ØD(mm) | twenty two | twenty two | twenty two | twenty two | 25 | 25 | 25 | 25 | 25 | 28 | 28 | 28 | 28 | 30 | 30 | 30 | 30 |
| ØD1(mm) | 28 | 28 | 28 | 28 | 30 | 30 | 30 | 30 | 30 | 34 | 34 | 34 | 34 | 35 | 35 | 35 | 35 |
| L(mm) | 16 | 19 | twenty two | 25 | 16 | 19 | twenty two | 25 | 30 | 19 | twenty two | 25 | 30 | 19 | twenty two | 25 | 30 |
| Outer diameter oil groove | none | have | have | have | none | have | have | have | have | have | have | have | have | have | have | have | have |
Product Specifications
Model
GMFA1316
GMFA1319
GMFA1322
GMFA1325
GMFA1616
GMFA1619
GMFA1622
GMFA1625
GMFA1630
GMFA1919
GMFA1922
GMFA1925
GMFA1930
GMFA2019
GMFA2022
GMFA2025
GMFA2030
