Precision inner guide pillars, guide sleeves, and cover plates for stripper plates.
GMBB
★Precision stripper guide bushing★Precision straight ball guide bushing★Material: SUJ2 ★Hardness: HRC60~62+ Cryogenic
- Specifications
- Technical Data
- Image Download
Total of 9 models
| Model | GMBB1320 | GMBB1325 | GMBB1330 | GMBB1625 | GMBB1630 | GMBB1635 | GMBB2030 | GMBB2035 | GMBB2040 |
|---|---|---|---|---|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Type | Precision straight ball guide sleeve | Precision straight ball guide sleeve | Precision straight ball guide sleeve | Precision straight ball guide sleeve | Precision straight ball guide sleeve | Precision straight ball guide sleeve | Precision straight ball guide sleeve | Precision straight ball guide sleeve | Precision straight ball guide sleeve |
| Material | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 |
| hardness | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic |

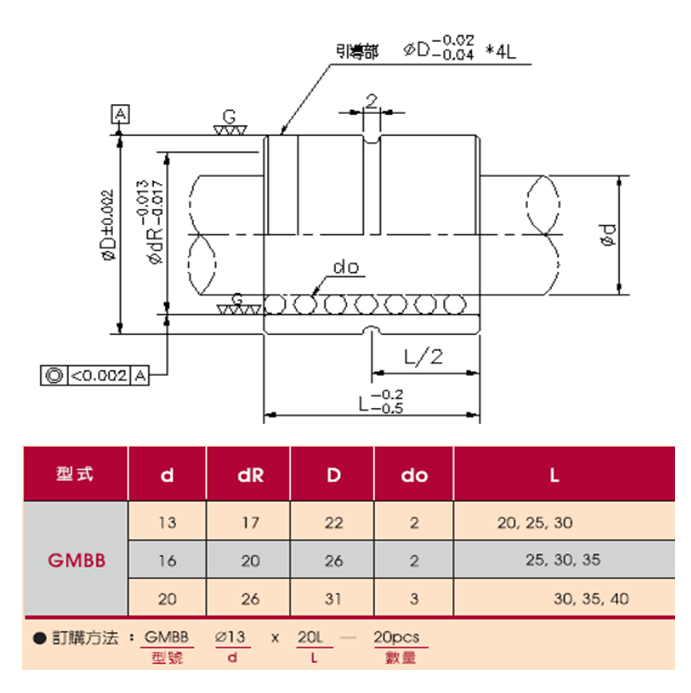

| outer diameter of guide post Ød (mm) | 13 | 13 | 13 | 16 | 16 | 16 | 20 | 20 | 20 |
| ØdR(mm) | 17 | 17 | 17 | 20 | 20 | 20 | 26 | 26 | 26 |
| ØD(mm) | twenty two | twenty two | twenty two | 26 | 26 | 26 | 31 | 31 | 31 |
| Ødo(mm) | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 |
| L(mm) | 20 | 25 | 30 | 25 | 30 | 35 | 30 | 35 | 40 |
Product Specifications
Model
GMBB1320
GMBB1325
GMBB1330
GMBB1625
GMBB1630
GMBB1635
GMBB2030
GMBB2035
GMBB2040
