Precision inner guide pillars, guide sleeves, and cover plates for stripper plates.
GMBA
★Precision stripper guide bushing★Precision shoulder-type ball guide bushing★Material: SUJ2 ★Hardness: HRC60~62+ Cryogenic
- Specifications
- Technical Data
- Image Download
Total of 9 models

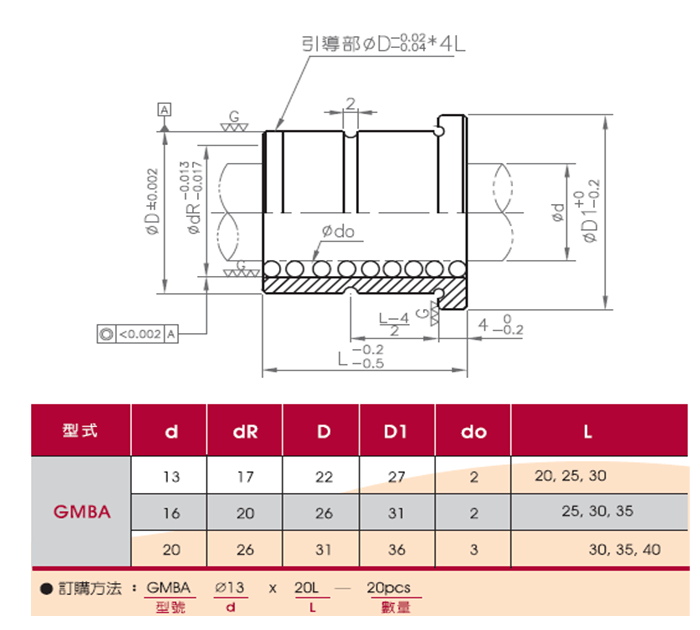

| Model | GMBA1320 | GMBA1325 | GMBA1330 | GMBA1625 | GMBA1630 | GMBA1635 | GMBA2030 | GMBA2035 | GMBA2040 |
|---|---|---|---|---|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Type | Precision-grade shoulder-type ball guide bushing | Precision-grade shoulder-type ball guide bushing | Precision-grade shoulder-type ball guide bushing | Precision-grade shoulder-type ball guide bushing | Precision-grade shoulder-type ball guide bushing | Precision-grade shoulder-type ball guide bushing | Precision-grade shoulder-type ball guide bushing | Precision-grade shoulder-type ball guide bushing | Precision-grade shoulder-type ball guide bushing |
| Material | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 | SUJ2 |
| hardness | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic | HRC60~62+ Cryogenic |
| outer diameter of guide post Ød (mm) | 13 | 13 | 13 | 16 | 16 | 16 | 20 | 20 | 20 |
| ØdR(mm) | 17 | 17 | 17 | 20 | 20 | 20 | 26 | 26 | 26 |
| ØD(mm) | twenty two | twenty two | twenty two | 26 | 26 | 26 | 31 | 31 | 31 |
| ØD1(mm) | 27 | 27 | 27 | 31 | 31 | 31 | 36 | 36 | 36 |
| Ødo(mm) | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 |
| L(mm) | 20 | 25 | 30 | 25 | 30 | 35 | 30 | 35 | 40 |
Product Specifications
Model
GMBA1320
GMBA1325
GMBA1330
GMBA1625
GMBA1630
GMBA1635
GMBA2030
GMBA2035
GMBA2040
