Precision inner guide pillars, guide sleeves, and cover plates for stripper plates.
All Precision guide post and guide sleeve cover plate for stripper plate Precision stripper guide post High rigidity stripper plate guide post Precision stripper guide sleeve Oil-free guide sleeve Sub-precision stripper plate guide post sleeve

GMAA-V

GMAA-V

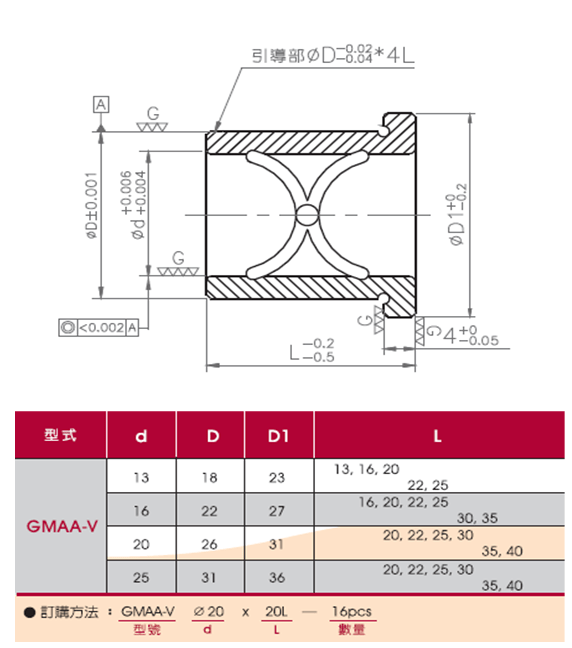

★Precision-grade stripper guide bushing★Precision-grade shoulder-type guide bushing★Material: SUJ2 ★Hardness: HRC60~62+ Cryogenic
  • Specifications
  • Technical Data
  • Image Download
Total of 23 models
Model GMAAV1313 GMAAV1316 GMAAV1320 GMAAV1322 GMAAV1325 GMAAV1616 GMAAV1620 GMAAV1622 GMAAV1625 GMAAV1630 GMAAV1635 GMAAV2020 GMAAV2022 GMAAV2025 GMAAV2030 GMAAV2035 GMAAV2040 GMAAV2520 GMAAV2522 GMAAV2525 GMAAV2530 GMAAV2535 GMAAV2540
Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry
Type Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve
Material SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2
hardness HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool HRC60~62+ Ultra-cool
Guide sleeve inner diameter Ød (mm) 13 13 13 13 13 16 16 16 16 16 16 20 20 20 20 20 20 25 25 25 25 25 25
ØD(mm) 18 18 18 18 18 twenty two twenty two twenty two twenty two twenty two twenty two 26 26 26 26 26 26 31 31 31 31 31 31
H(mm) twenty three twenty three twenty three twenty three twenty three 27 27 27 27 27 27 31 31 31 31 31 31 36 36 36 36 36 36
L(mm) 13 16 20 twenty two 25 16 20 twenty two 25 30 35 20 twenty two 25 30 35 40 20 twenty two 25 30 35 40
Product Specifications

Model

GMAAV1313
GMAAV1316
GMAAV1320
GMAAV1322
GMAAV1325
GMAAV1616
GMAAV1620
GMAAV1622
GMAAV1625
GMAAV1630
GMAAV1635
GMAAV2020
GMAAV2022
GMAAV2025
GMAAV2030
GMAAV2035
GMAAV2040
GMAAV2520
GMAAV2522
GMAAV2525
GMAAV2530
GMAAV2535
GMAAV2540
Specifications
Type
Material
hardness
Guide sleeve inner diameter Ød (mm)
ØD(mm)
H(mm)
L(mm)
