Precision inner guide pillars, guide sleeves, and cover plates for stripper plates.
All Precision guide post and guide sleeve cover plate for stripper plate Precision stripper guide post High rigidity stripper plate guide post Precision stripper guide sleeve Oil-free guide sleeve Sub-precision stripper plate guide post sleeve

GMAA

GMAA

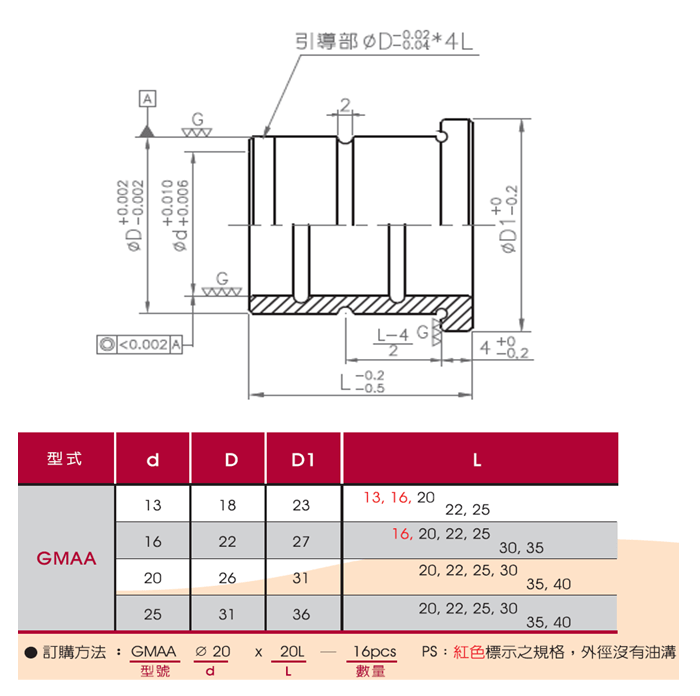

★Precision Grade Stripper Plate Guide Bushing★Precision Grade Shoulder-Type Guide Bushing★(Specifications marked in red, outer diameter without oil grooves) ★Material: SUJ2 ★Hardness: HRC60~62+ Cryogenic
  • Specifications
  • Technical Data
  • Image Download
Total of 23 models
Model GMAA1313 GMAA1316 GMAA1320 GMAA1322 GMAA1325 GMAA1616 GMAA1620 GMAA1622 GMAA1625 GMAA1630 GMAA1635 GMAA2020 GMAA2022 GMAA2025 GMAA2030 GMAA2035 GMAA2040 GMAA2520 GMAA2522 GMAA2525 GMAA2530 GMAA2535 GMAA2540
Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry
Type Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve Precision-grade shoulder guide sleeve
Material SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2 SUJ2
hardness HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic HRC60~62+ Cryogenic
Guide sleeve inner diameter Ød (mm) 13 13 13 13 13 16 16 16 16 16 16 20 20 20 20 20 20 25 25 25 25 25 25
ØD(mm) 18 18 18 18 18 twenty two twenty two twenty two twenty two twenty two twenty two 26 26 26 26 26 26 31 31 31 31 31 31
ØD1(mm) twenty three twenty three twenty three twenty three twenty three 27 27 27 27 27 27 31 31 31 31 31 31 36 36 36 36 36 36
L(mm) 13 16 20 twenty two 25 16 20 twenty two 25 30 35 20 twenty two 25 30 35 40 20 twenty two 25 30 35 40
Outer diameter oil groove none none have have have none have have have have have have have have have have have have have have have have have
Product Specifications

Model

GMAA1313
GMAA1316
GMAA1320
GMAA1322
GMAA1325
GMAA1616
GMAA1620
GMAA1622
GMAA1625
GMAA1630
GMAA1635
GMAA2020
GMAA2022
GMAA2025
GMAA2030
GMAA2035
GMAA2040
GMAA2520
GMAA2522
GMAA2525
GMAA2530
GMAA2535
GMAA2540
Specifications
Type
Material
hardness
Guide sleeve inner diameter Ød (mm)
ØD(mm)
ØD1(mm)
L(mm)
Outer diameter oil groove
