Name: Stamping specification die base
Brand: GMT BLOBAL INC.
SKU: null

Specifications
Technical Data
Image Download

Total of 10 models

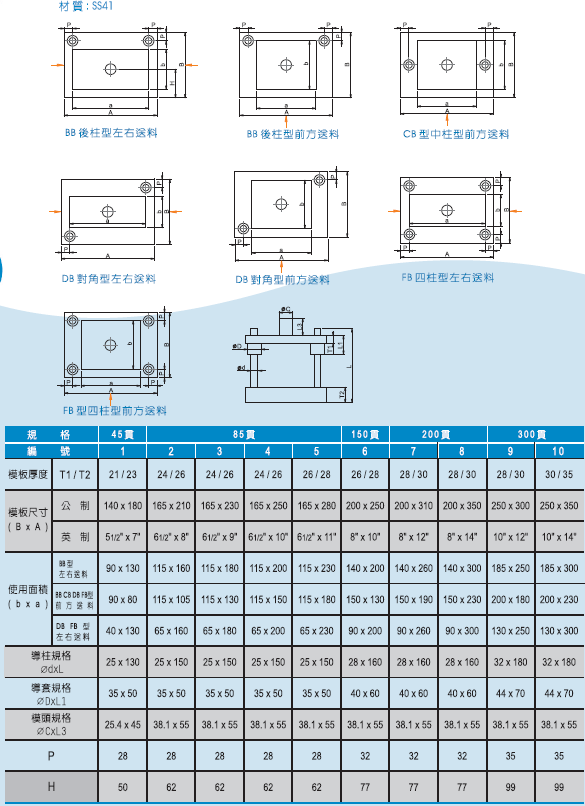

Model	BB-1	BB-2	BB-3	BB-4	BB-5	BB-6	BB-7	BB-8	BB-9	BB-10
Inquiry	Add To Inquiry	Add To Inquiry	Add To Inquiry	Add To Inquiry	Add To Inquiry	Add To Inquiry	Add To Inquiry	Add To Inquiry	Add To Inquiry	Add To Inquiry
Specification	45 strings	85 strings	85 strings	85 strings	85 strings	150 strings	200 strings	200 strings	300 strings	300 strings
Material	SS41	SS41	SS41	SS41	SS41	SS41	SS41	SS41	SS41	SS41
Template thickness T1/T2	21/23	24/26	24/26	24/26	26/28	26/28	28/30	28/30	28/30	30/35
Template size - Metric (B x A) mm	140 x 180	165 x 210	165 x 230	165 x 250	165 x 280	200 x 250	200 x 310	200 x 350	250 x 300	250 x 350
Template dimensions - Imperial (BxA)	5 1/2" x 7"	6 1/2" x 8"	6 1/2" x 9"	6 1/2" x 10"	6 1/2" x 11"	8" x 10"	8" x 12"	8" x 14"	10" x 12"	10" x 14"
BB type left and right feeding area (b x a) mm	90 x 130	115 x 160	115 x 180	115 x 200	115 x 230	140 x 200	140 x 260	140 x 300	185 x 250	185 x 300
BB, CB, DB, FB type front feeding area (b x a) mm	90 x 80	115 x 105	115 x 130	115 x 150	115 x 180	150 x 130	150 x 190	150 x 230	200 x 180	200 x 230
DB.FB type left and right feeding area (b x a) mm	40 x 130	65 x 160	65 x 180	65 x 200	65 x 230	90 x 200	90 x 260	90 x 300	130 x 250	130 x 300
Guide post specifications (Ød x L) mm	25 x 130	25 x 150	25 x 150	25 x 150	25 x 150	28 x 160	28 x 160	28 x 160	32 x 180	32 x 180
Guide sleeve specifications (ØDⅹL1) mm	35 x 50	35 x 50	35 x 50	35 x 50	35 x 50	40 x 60	40 x 60	40 x 60	44 x 70	44 x 70
Die head specifications (ØCⅹL3) mm	25.4 x 45	38.1 x 55	38.1 x 55	38.1 x 55	38.1 x 55	38.1 x 55	38.1 x 55	38.1 x 55	38.1 x 55	38.1 x 55
P(mm)	28	28	28	28	28	32	32	32	35	35
H(mm)	50	62	62	62	62	77	77	77	99	99

Product Specifications

Model

BB-1

BB-2

BB-3

BB-4

BB-5

BB-6

BB-7

BB-8

BB-9

BB-10
