Precision inner guide pillars, guide sleeves, and cover plates for stripper plates.
GMGA

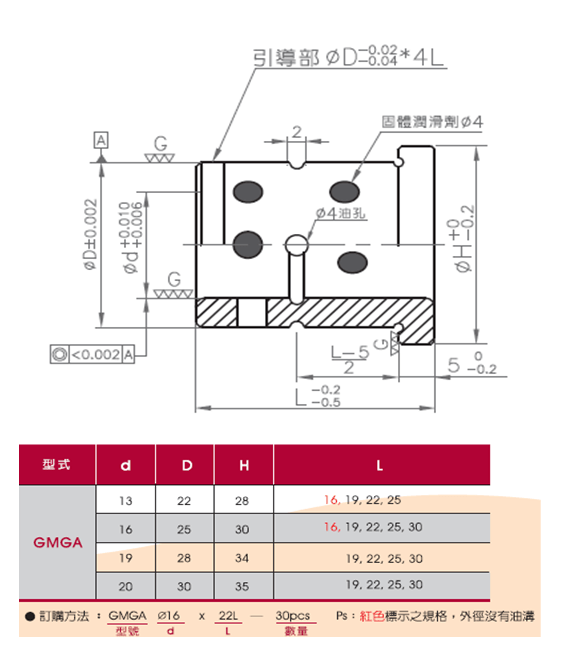

★Precision Grade Stripper Plate Guide Bushing★Precision Grade Shoulder-Type Oil-Free Guide Bushing★(Specifications marked in red, no oil groove on the outer diameter) ★Material: Copper Alloy + MoS2 Embedded
- Specifications
- Technical Data
- Image Download
Total of 17 models
| Model | GMGA1316 | GMGA1319 | GMGA1322 | GMGA1325 | GMGA1616 | GMGA1619 | GMGA1622 | GMGA1625 | GMGA1630 | GMGA1919 | GMGA1922 | GMGA1925 | GMGA1930 | GMGA2019 | GMGA2022 | GMGA2025 | GMGA2030 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Type | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing | Precision-grade shoulder-type oil-free guide bushing |
| Material | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding | Copper alloy + MoS2 embedding |
| Guide sleeve inner diameter Ød (mm) | 13 | 13 | 13 | 13 | 16 | 16 | 16 | 16 | 16 | 19 | 19 | 19 | 19 | 20 | 20 | 20 | 20 |
| ØD(mm) | twenty two | twenty two | twenty two | twenty two | 25 | 25 | 25 | 25 | 25 | 28 | 28 | 28 | 28 | 30 | 30 | 30 | 30 |
| ØD1(mm) | 28 | 28 | 28 | 28 | 30 | 30 | 30 | 30 | 30 | 34 | 34 | 34 | 34 | 35 | 35 | 35 | 35 |
| L(mm) | 16 | 19 | twenty two | 25 | 16 | 19 | twenty two | 25 | 30 | 19 | twenty two | 25 | 30 | 19 | twenty two | 25 | 30 |
| Outer diameter oil groove | none | have | have | have | none | have | have | have | have | have | have | have | have | have | have | have | have |
Product Specifications
Model
GMGA1316
GMGA1319
GMGA1322
GMGA1325
GMGA1616
GMGA1619
GMGA1622
GMGA1625
GMGA1630
GMGA1919
GMGA1922
GMGA1925
GMGA1930
GMGA2019
GMGA2022
GMGA2025
GMGA2030
