Stamping & Mould Components
All Precision punching die base Precision mold base external guide pillars, guide bushings, and ball bearing bushings Precision inner guide pillars, guide sleeves, and cover plates for stripper plates. Mold base parts Precision punch Mold accessories Guide post and sleeve combination diagram

SRA, SRB, SRC, SRD

SRA, SRB, SRC, SRD
★Uriage (Mold Accessories) ★Model: SRA (Grade A) Green ★Model: SRB (Grade B) Orange ★Model: SRC (Grade A Tube) Green ★Model: SRD (Grade B Tube) Orange ★Material: A90 ★Unit: mm ★This urethane is made of polyurethane adhesive. When used as a spring in mold applications, such as for general mold springs, its rebound, load-bearing capacity, durability, oil resistance, and other properties are all well-suited. Custom sizes and shapes are available, and drawings can be provided for quotations. ★Uriage Length Calculation Example: For Ø25 × 500L urethane, in stamping operations, it is recommended to use a length that is twice the diameter, such as Ø25 × 2D = 50L. ★Stripper Plate Hole Design: If the length is greater than 2D, the stripper plate clearance hole design must consider the compression expansion rate. Normal usage is ØD + 20%; maximum usage is ØD + 30%. Example: Ø25 × 1.2 = Ø30; Ø25 × 1.3 = Ø32.5. ★Percentage of travel: Green A: 40%; Special B: 35%; B-grade: 30%; Red A: 35%. ★Number of uses: 20,000 times (within normal usage range).
  • Specifications
  • Technical Data
  • Image Download
Total of 84 models

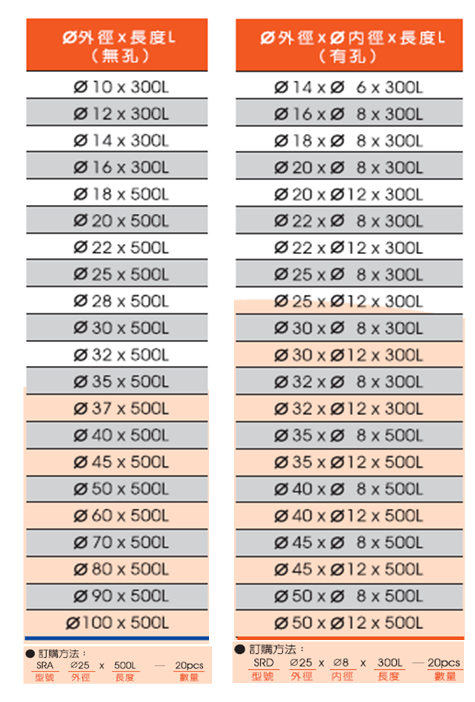

Model SRA10300 SRA12300 SRA14300 SRA16300 SRA18500 SRA20500 SRA22500 SRA25500 SRA28500 SRA30500 SRA32500 SRA35500 SRA37500 SRA40500 SRA45500 SRA50500 SRA60500 SRA70500 SRA80500 SRA90500 SRA100500 SRB10300 SRB12300 SRB14300 SRB16300 SRB18500 SRB20500 SRB22500 SRB25500 SRB28500 SRB30500 SRB32500 SRB35500 SRB37500 SRB40500 SRB45500 SRB50500 SRB60500 SRB70500 SRB80500 SRB90500 SRB100500 SRC146300 SRC168300 SRC188300 SRC208300 SRC2012300 SRC228300 SRC2212300 SRC258300 SRC2512300 SRC308300 SRC3012300 SRC328300 SRC3212300 SRC358500 SRC3512500 SRC408500 SRC4012500 SRC458500 SRC4512500 SRC508500 SRC5012500 SRD146300 SRD168300 SRD188300 SRD208300 SRD2012300 SRD228300 SRD2212300 SRD258300 SRD2512300 SRD308300 SRD3012300 SRD328300 SRD3212300 SRD358500 SRD3512500 SRD408500 SRD4012500 SRD458500 SRD4512500 SRD508500 SRD5012500
Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry
Type urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane urethane
Material A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90 A90
unit mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
Ø Outer diameter (mm) ø10 ø12 ø14 ø16 ø18 ø20 ø22 ø25 ø28 ø30 ø32 ø35 ø37 ø40 ø45 ø50 ø60 ø70 ø80 ø90 ø100 ø10 ø12 ø14 ø16 ø18 ø20 ø22 ø25 ø28 ø30 ø32 ø35 ø37 ø40 ø45 ø50 ø60 ø70 ø80 ø90 ø100 ø14 ø16 ø18 ø20 ø20 ø22 ø22 ø25 ø25 ø30 ø30 ø32 ø32 ø35 ø35 ø40 ø40 ø45 ø45 ø50 ø50 ø14 ø16 ø18 ø20 ø20 ø22 ø22 ø25 ø25 ø30 ø30 ø32 ø32 ø35 ø35 ø40 ø40 ø45 ø45 ø50 ø50
ØInner diameter(mm) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A ø6 ø8 ø8 ø8 ø12 ø8 ø12 ø8 ø12 ø8 ø12 ø8 ø12 ø8 ø12 ø8 ø12 ø8 ø12 ø8 ø12 ø6 ø8 ø8 ø8 ø12 ø8 ø12 ø8 ø12 ø8 ø12 ø8 ø12 ø8 ø12 ø8 ø12 ø8 ø12 ø8 ø12
L(mm) 300 300 300 300 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 300 300 300 300 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 500 300 300 300 300 300 300 300 300 300 300 300 300 300 500 500 500 500 500 500 500 500 300 300 300 300 300 300 300 300 300 300 300 300 300 500 500 500 500 500 500 500 500
Product Specifications
Specifications
Type
Material
unit
Ø Outer diameter (mm)
ØInner diameter(mm)
L(mm)
Send Clear
