Stamping & Mould Components
SBE

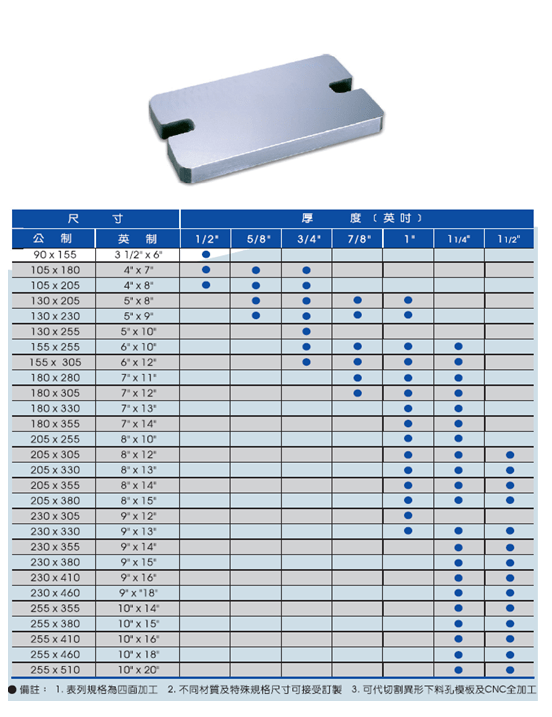

Template Material: SS41 Unit: Inches 1. The listed specifications are for four-sided machining. 2. Customization is available for different materials and special sizes. 3. We can cut irregularly shaped blanking holes and perform full CNC machining.
- Specifications
- Technical Data
- Image Download
Total of 70 models
| Model | SBE043046 | SBE0447 | SBE0547 | SBE0647 | SBE0448 | SBE0548 | SBE0648 | SBE0558 | SBE0658 | SBE0758 | SBE158 | SBE0559 | SBE0659 | SBE0759 | SBE159 | SBE06510 | SBE06610 | SBE07610 | SBE1610 | SBE102610 | SBE06612 | SBE07612 | SBE1612 | SBE102612 | SBE07711 | SBE1711 | SBE102711 | SBE07712 | SBE1712 | SBE102712 | SBE1713 | SBE102713 | SBE1714 | SBE102714 | SBE1810 | SBE102810 | SBE1812 | SBE102812 | SBE104812 | SBE1813 | SBE102813 | SBE104813 | SBE1814 | SBE102814 | SBE104814 | SBE1815 | SBE102815 | SBE104815 | SBE1912 | SBE1913 | SBE102913 | SBE104913 | SBE102914 | SBE104914 | SBE102915 | SBE104915 | SBE102916 | SBE104916 | SBE102918 | SBE104918 | SBE1021014 | SBE1041014 | SBE1021015 | SBE1041015 | SBE1021016 | SBE1041016 | SBE1021018 | SBE1041018 | SBE1021020 | SBE1041020 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Type | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template | Specifications Template |
| Material | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 | SS41 |
| Metric | 90×155 | 105×180 | 105×180 | 105×180 | 105×205 | 105×205 | 105×205 | 130×205 | 130×205 | 130×205 | 130×205 | 130×230 | 130×230 | 130×230 | 130×230 | 130×255 | 155×255 | 155×255 | 155×255 | 155×255 | 155×305 | 155×305 | 155×305 | 155×305 | 180×280 | 180×280 | 180×280 | 180×305 | 180×305 | 180×305 | 180×330 | 180×330 | 180×355 | 180×355 | 205×255 | 205×255 | 205×305 | 205×305 | 205×305 | 205×330 | 205×330 | 205×330 | 205×355 | 205×355 | 205×355 | 205×380 | 205×380 | 205×380 | 230×305 | 230×330 | 230×330 | 230×330 | 230×355 | 230×355 | 230×380 | 230×380 | 230×410 | 230×410 | 230×460 | 230×460 | 255×355 | 255×355 | 255×380 | 255×380 | 255×410 | 255×410 | 255×460 | 255×460 | 255×510 | 255×510 |
| Imperial | 3 1/2" x 6" | 4"×7" | 4"×7" | 4"×7" | 4"×8" | 4"×8" | 4"×8" | 5" x 8" | 5" x 8" | 5" x 8" | 5" x 8" | 5"×9" | 5"×9" | 5"×9" | 5"×9" | 5"×10" | 6"×10" | 6"×10" | 6"×10" | 6"×10" | 6"×12" | 6"×12" | 6"×12" | 6"×12" | 7"×11" | 7"×11" | 7"×11" | 7"×12" | 7"×12" | 7"×12" | 7"×13" | 7"×13" | 7"×14" | 7"×14" | 8"×10" | 8"×10" | 8"×12" | 8"×12" | 8"×12" | 8"×13" | 8"×13" | 8"×13" | 8"×14" | 8"×14" | 8"×14" | 8"×15" | 8"×15" | 8"×15" | 9"×12" | 9"×13" | 9"×13" | 9"×13" | 9"×14" | 9"×14" | 9" x 15" | 9" x 15" | 9"×16" | 9"×16" | 9" x 18" | 9" x 18" | 10" x 14" | 10" x 14" | 10" x 15" | 10" x 15" | 10" x 16" | 10" x 16" | 10" x 18" | 10" x 18" | 10" x 20" | 10" x 20" |
| Thickness (inches) | 1/2" | 1/2" | 5/8" | 3/4" | 1/2" | 5/8" | 3/4" | 5/8" | 3/4" | 7/8" | 1" | 5/8" | 3/4" | 7/8" | 1" | 3/4" | 3/4" | 7/8" | 1" | 1 1/4" | 3/4" | 7/8" | 1" | 1 1/4" | 7/8" | 1" | 1 1/4" | 7/8" | 1" | 1 1/4" | 1" | 1 1/4" | 1" | 1 1/4" | 1" | 1 1/4" | 1" | 1 1/4" | 1 1/2" | 1" | 1 1/4" | 1 1/2" | 1" | 1 1/4" | 1 1/2" | 1" | 1 1/4" | 1 1/2" | 1" | 1" | 1 1/4" | 1 1/2" | 1 1/4" | 1 1/2" | 1 1/4" | 1 1/2" | 1 1/4" | 1 1/2" | 1 1/4" | 1 1/2" | 1 1/4" | 1 1/2" | 1 1/4" | 1 1/2" | 1 1/4" | 1 1/2" | 1 1/4" | 1 1/2" | 1 1/4" | 1 1/2" |
Product Specifications
