MC-B
Flat Punch Press Plate (Die Accessory) ★Features: The plate is cast from malleable case iron, meeting usage standards for elasticity and pressure, eliminating the need for shims, saving time, increasing work efficiency, and boosting production (suitable for punch presses, planers, milling machines, and hydraulic presses). ★Characteristics: Cast from high-grade malleable case iron, it is tough and will never break, ensuring convenient and secure fixing of dies or other workpieces.
- Specifications
- Technical Data
- Image Download
Total of 4 models

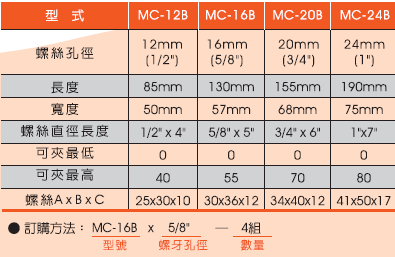

| Model | MC-12B | MC-16B | MC-20B | MC-24B |
|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Type | Flat punch press plate | Flat punch press plate | Flat punch press plate | Flat punch press plate |
| Screw hole diameter | 12mm (1/2") | 16mm (5/8") | 20mm (3/4") | 24mm(1") |
| Length (mm) | 85mm | 130mm | 155mm | 190mm |
| Width (mm) | 50mm | 57mm | 68mm | 75mm |
| Screw diameter (inch) | 1/2" × 4" | 5/8" × 5" | 3/4" × 6" | 1" × 7" |
| The lowest clamping depth (mm) | 0 | 0 | 0 | 0 |
| Maximum clamping height (mm) | 40 | 55 | 70 | 80 |
| Screws AxBxC | 25×30×10 | 30×36×12 | 34×40×12 | 41×50×17 |
