Stamping & Mould Components
MC-A
Flat punch press plate (mold accessory)
- Specifications
- Technical Data
- Image Download
Total of 4 models

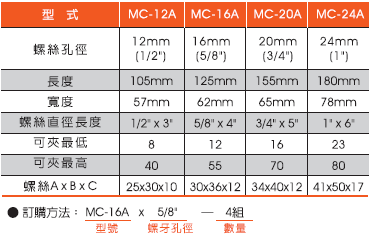

| Model | MC-12A | MC-16A | MC-20A | MC-24A |
|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Type | Flat punch press plate | Flat punch press plate | Flat punch press plate | Flat punch press plate |
| Screw hole diameter | 12mm (1/2") | 16mm (5/8") | 20mm (3/4") | 24mm(1") |
| Length (mm) | 105mm | 125mm | 155mm | 180mm |
| Width (mm) | 57mm | 62mm | 65mm | 78mm |
| Screw diameter (inch) | 1/2" × 3" | 5/8" × 4" | 3/4" × 5" | 1" × 6" |
| The lowest clamping depth (mm) | 8 | 12 | 16 | twenty three |
| Maximum clamping height (mm) | 40 | 55 | 70 | 80 |
| Screws AxBxC | 25×30×10 | 30×36×12 | 34×40×12 | 41×50×17 |
Product Specifications
