LPSB
T-shaped float pin (mold accessory) Material: SCM415 Hardness: HRC50
- Specifications
- Technical Data
- Image Download
Total of 31 models
| Model | SUT310 | SUT315 | SUT320 | SUT325 | SUT330 | SUT335 | SUT340 | SUT410 | SUT415 | SUT420 | SUT425 | SUT430 | SUT435 | SUT440 | SUT515 | SUT520 | SUT525 | SUT530 | SUT535 | SUT540 | SUT615 | SUT620 | SUT625 | SUT630 | SUT635 | SUT640 | SUT820 | SUT825 | SUT830 | SUT835 | SUT840 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Type | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip | T-shaped floating tip |
| Material | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 | SCM415 |
| hardness | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 | HRC50 |
| D(mm) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 5 | 5 | 5 | 6 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 |
| H(mm) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 7 | 7 | 7 | 7 | 7 | 7 | 8 | 8 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 10 |
| L(mm) | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 15 | 20 | 25 | 30 | 35 | 40 | 15 | 20 | 25 | 30 | 35 | 40 | 20 | 25 | 30 | 35 | 40 |

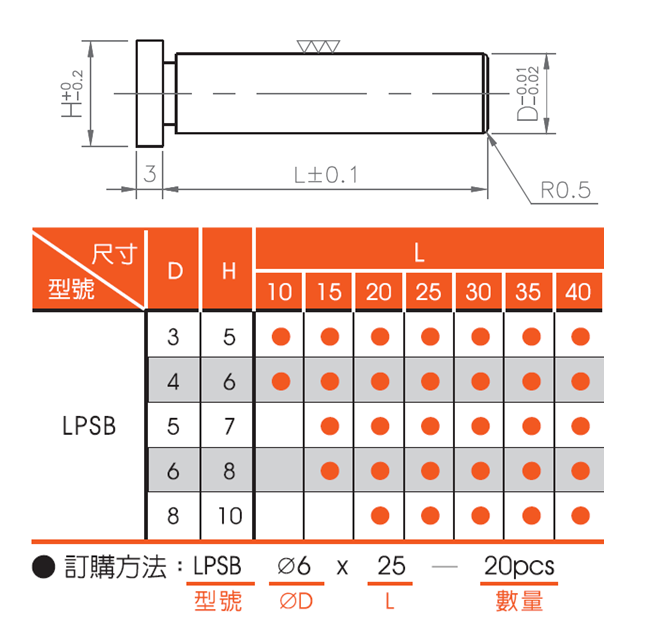

Product Specifications
