Stamping & Mould Components
All Precision punching die base Precision mold base external guide pillars, guide bushings, and ball bearing bushings Precision inner guide pillars, guide sleeves, and cover plates for stripper plates. Mold base parts Precision punch Mold accessories Guide post and sleeve combination diagram

CRSS

CRSS

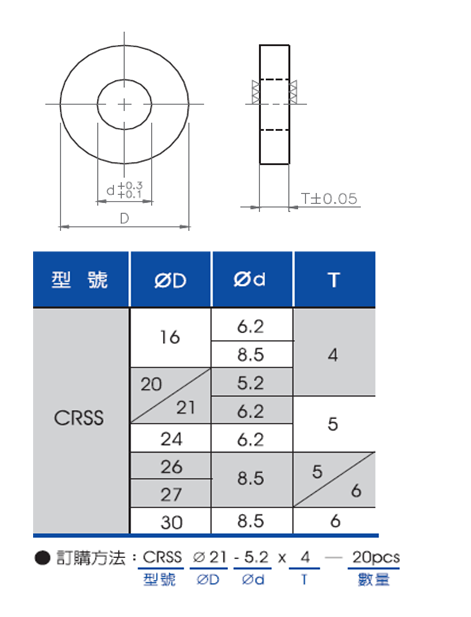

Equal-height screw spring washer (mold accessory) Material: S50C Hardness: HRC45~50
  • Specifications
  • Technical Data
  • Image Download
Total of 12 models
Model CRSS16624 CRSS16854 CRSS20524 CRSS21524 CRSS20625 CRSS21625 CRSS24625 CRSS26855 CRSS27855 CRSS26856 CRSS27856 CRSS30856
Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry
Type Washers for equal height screw springs Washers for equal height screw springs Washers for equal height screw springs Washers for equal height screw springs Washers for equal height screw springs Washers for equal height screw springs Washers for equal height screw springs Washers for equal height screw springs Washers for equal height screw springs Washers for equal height screw springs Washers for equal height screw springs Washers for equal height screw springs
Material S50C S50C S50C S50C S50C S50C S50C S50C S50C S50C S50C S50C
hardness HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50
ØD(mm) 16 16 20 twenty one 20 twenty one twenty four 26 27 26 27 30
Ød(mm) 6.2 8.5 5.2 5.2 6.2 6.2 6.2 8.5 8.5 8.5 8.5 8.5
T(mm) 4 4 4 4 5 5 5 5 5 6 6 6
Product Specifications
Specifications
Type
Material
hardness
ØD(mm)
Ød(mm)
T(mm)
