Stamping & Mould Components
All Precision punching die base Precision mold base external guide pillars, guide bushings, and ball bearing bushings Precision inner guide pillars, guide sleeves, and cover plates for stripper plates. Mold base parts Precision punch Mold accessories Guide post and sleeve combination diagram

CRSB

CRSB

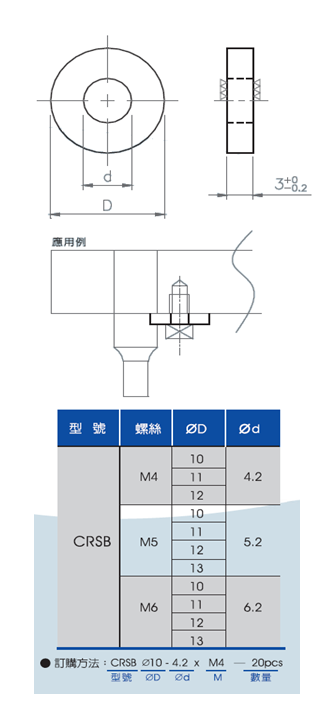

Keyway punch retaining key (mold accessory) Material: S50C Hardness: HRC45~50
  • Specifications
  • Technical Data
  • Image Download
Total of 11 models
Model CRSBM41042 CRSBM41142 CRSBM41242 CRSBM51052 CRSBM51152 CRSBM51252 CRSBM51352 CRSBM61062 CRSBM61162 CRSBM61262 CRSBM61362
Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry
Type Keyway punch fixing key Keyway punch fixing key Keyway punch fixing key Keyway punch fixing key Keyway punch fixing key Keyway punch fixing key Keyway punch fixing key Keyway punch fixing key Keyway punch fixing key Keyway punch fixing key Keyway punch fixing key
Material S50C S50C S50C S50C S50C S50C S50C S50C S50C S50C S50C
hardness HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50 HRC45~50
screw M4 M4 M4 M5 M5 M5 M5 M6 M6 M6 M6
ØD(mm) 10 11 12 10 11 12 13 10 11 12 13
Ød(mm) 4.2 4.2 4.2 5.2 5.2 5.2 5.2 6.2 6.2 6.2 6.2
Product Specifications
Specifications
Type
Material
hardness
screw
ØD(mm)
Ød(mm)
