Stamping & Mould Components
All Precision punching die base Precision mold base external guide pillars, guide bushings, and ball bearing bushings Precision inner guide pillars, guide sleeves, and cover plates for stripper plates. Mold base parts Precision punch Mold accessories Guide post and sleeve combination diagram

CRS

CRS

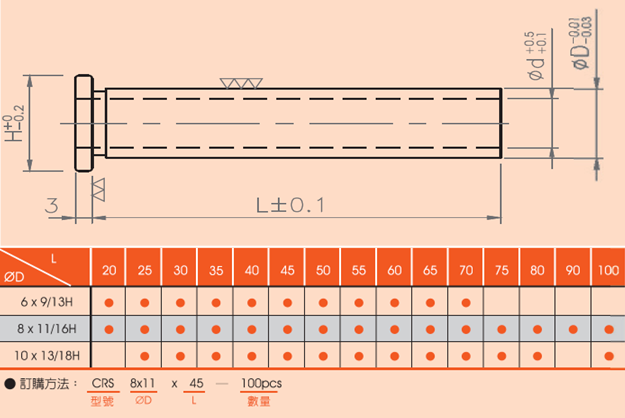

Equal height sleeve (mold accessory) Material: SCM435 Hardness: HRC52
  • Specifications
  • Technical Data
  • Image Download
Total of 39 models
Model SED620 SED625 SED630 SED635 SED640 SED645 SED650 SED655 SED660 SED665 SED670 SED820 SED825 SED830 SED835 SED840 SED845 SED850 SED855 SED860 SED865 SED870 SED875 SED880 SED890 SED8100 SED1025 SED1030 SED1035 SED1040 SED1045 SED1050 SED1055 SED1060 SED1065 SED1070 SED1075 SED1080 SED10100
Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry
Type Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve Equal height sleeve
Material SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435 SCM435
hardness HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52 HRC52
ØD(mm) 6 × 9 /13H 6 × 9 /13H 6 × 9 /13H 6 × 9 /13H 6 × 9 /13H 6 × 9 /13H 6 × 9 /13H 6 × 9 /13H 6 × 9 /13H 6 × 9 /13H 6 × 9 /13H 8 × 11 /16H 8 × 11 /16H 8 × 11 /16H 8 × 11 /16H 8 × 11 /16H 8 × 11 /16H 8 × 11 /16H 8 × 11 /16H 8 × 11 /16H 8 × 11 /16H 8 × 11 /16H 8 × 11 /16H 8 × 11 /16H 8 × 11 /16H 8 × 11 /16H 10 × 13 /18H 10 × 13 /18H 10 × 13 /18H 10 × 13 /18H 10 × 13 /18H 10 × 13 /18H 10 × 13 /18H 10 × 13 /18H 10 × 13 /18H 10 × 13 /18H 10 × 13 /18H 10 × 13 /18H 10 × 13 /18H
L(mm) 20 25 30 35 40 45 50 55 60 65 70 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 25 30 35 40 45 50 55 60 65 70 75 80 100
Product Specifications
Specifications
Type
Material
hardness
ØD(mm)
L(mm)
