Stamping & Mould Components
AFS
Rectangular head screws (mold parts)
- Specifications
- Technical Data
- Image Download
Total of 47 models

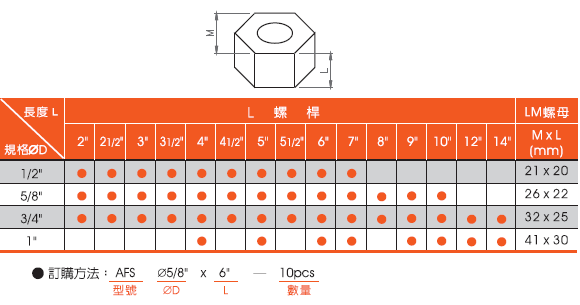

| Model | AFS042 | AFS04204 | AFS043 | AFS04304 | AFS044 | AFS04404 | AFS045 | AFS04505 | AFS046 | AFS047 | AFS052 | AFS05204 | AFS053 | AFS05304 | AFS054 | AFS05404 | AFS055 | AFS05505 | AFS056 | AFS057 | AFS058 | AFS059 | AFS0510 | AFS062 | AFS06204 | AFS063 | AFS06304 | AFS064 | AFS06404 | AFS065 | AFS06505 | AFS066 | AFS067 | AFS068 | AFS069 | AFS0610 | AFS0612 | AFS0614 | AFS14 | AFS15 | AFS16 | AFS17 | AFS18 | AFS19 | AFS110 | AFS112 | AFS114 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Type | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws | rectangular head screws |
| øD (inch) | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 5/8" | 5/8" | 5/8" | 5/8" | 5/8" | 5/8" | 5/8" | 5/8" | 5/8" | 5/8" | 5/8" | 5/8" | 5/8" | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" | 3/4" | 1" | 1" | 1" | 1" | 1" | 1" | 1" | 1" | 1" |
| L-screw (inch) | 2" | 2 1/2" | 3" | 3 1/2" | 4" | 4 1/2" | 5" | 5 1/2" | 6" | 7" | 2" | 2 1/2" | 3" | 3 1/2" | 4" | 4 1/2" | 5" | 5 1/2" | 6" | 7" | 8" | 9" | 10" | 2" | 2 1/2" | 3" | 3 1/2" | 4" | 4 1/2" | 5" | 5 1/2" | 6" | 7" | 8" | 9" | 10" | 12" | 14" | 4" | 5" | 6" | 7" | 8" | 9" | 10" | 12" | 14" |
| M×L nuts (mm) | 21 × 20 | 21 × 20 | 21 × 20 | 21 × 20 | 21 × 20 | 21 × 20 | 21 × 20 | 21 × 20 | 21 × 20 | 21 × 20 | 26 × 22 | 26 × 22 | 26 × 22 | 26 × 22 | 26 × 22 | 26 × 22 | 26 × 22 | 26 × 22 | 26 × 22 | 26 × 22 | 26 × 22 | 26 × 22 | 26 × 22 | 32 × 25 | 32 × 25 | 32 × 25 | 32 × 25 | 32 × 25 | 32 × 25 | 32 × 25 | 32 × 25 | 32 × 25 | 32 × 25 | 32 × 25 | 32 × 25 | 32 × 25 | 32 × 25 | 32 × 25 | 41 × 30 | 41 × 30 | 41 × 30 | 41 × 30 | 41 × 30 | 41 × 30 | 41 × 30 | 41 × 30 | 41 × 30 |
Product Specifications
