Precision Motorized Stages
AZV90 - Precision
★Guide-Crossed-roller Guide, In structure, V-groove and crossed roller acquire movement in high accuracy and capacity by linear transmission to act a high precision movement and load capacity performance.
Transmission Parts
★Ball screw, It transmits through the ball involving in the locknut and screw to reach the accuracy and longer operation lifetime.
★Belt Driven, It mainly transmits the thrust and involves between two long-distance axes. It is suitable for high-speed and low-torque transmission.
★Material: Aluminum Alloy
★Model Shown: AZV9020-A8PN-CD
- Specifications
- Technical Data
- Image Download
Total of 2 models
| Model | AZV9010-A8PN-CD | AZV9020-A8PN-CD |
|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry |
| Table Size (mm) | 90*90 | 90*90 |
| Travel Stroke (mm) | 10 | 20 |
| Drive Type | Ø8 ball screw, 1mm lead, belt drive | Ø8 ball screw, 1mm lead, belt drive |
| Rail | Anti-slip type - cross roller guide | Anti-slip type - cross roller guide |
| Stage Material | Aluminum Alloy | Aluminum Alloy |
| Surface Treatment | Black anodized | Black anodized |
| Main Unit Weight (Kg) | 1.85 | 1.95 |
| Coupling | No coupling configured | No coupling configured |
| Accuracy Level | P: Precision type | P: Precision type |
| Wiring Method | N: Right exit | N: Right exit |
| Resolution(Pulse) (µm) | 1 (Full) / 0.5 (Half) | 1 (Full) / 0.5 (Half) |
| Max. Speed(Full Step) (mm/sec) | 5 | 5 |
| Positioning Precision (µm) | 10 | 10 |
| Repeatability Precision(µm) | ± 0.5 | ± 0.5 |
| Load Capacity (Kgf) | 5 | 5 |
| Missed Step (µm) | 1 | 1 |
| Parallelism (µm) | 60 | 60 |
| Dynamic Straightness (µm) | 5 | 5 |
| Dynamic Parallelism (µm) | 30 | 30 |
| Motor_Type/Shaft Numbers | 5-phase stepper motor / ☐ 42 dual output shafts | 5-phase stepper motor / ☐ 42 dual output shafts |
| Motor_Brand/Model | SANYO / 103F5505-8211 | SANYO / 103F5505-8211 |
| Driver brand/model | Please refer to the motor/drive comparison table. | Please refer to the motor/drive comparison table. |
| Connector_Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS |
| Connector_Controller Side Connector | 15-pin female connector D-SUB / 12-pin female connector HRS (optional) | 15-pin female connector D-SUB / 12-pin female connector HRS (optional) |
| Sensor_Origin Sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor |
| Sensor_Limit Sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor |
| Motor proximity sensor | N / A | N / A |
| Sensor_Power Voltage | 24V ± 10% | 24V ± 10% |
| Sensor_Control Output | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA |
| Sensor_Output Control | Detection (during sensing): Output transistor OFF (non-conducting) | Detection (during sensing): Output transistor OFF (non-conducting) |
Product Overview
System Configuration Diagram
♦ For selection of the drivers preferred, please refer to the reference table or the catalogue of Motor・Driver.
♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers according to real functional needs.
Axis Definition
GMT has defined different axis as the following figuration according to the movement direction:
Horizontal movement direction is X and Y axis.
Vertical movement direction is Z axis.
Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.
Green arrows present the specified axis movement direction.
Motor•driver Reference Table
Electrical specifications
Stepper Motor/Driver Specifications Comparison Table
Electric slide table and connecting cable
Introduction to Electromagnetic Brake Stepper Motors
Introduction to Feedback Stepper Motors
Linear sliding table detection method (X, Y, Z axes)

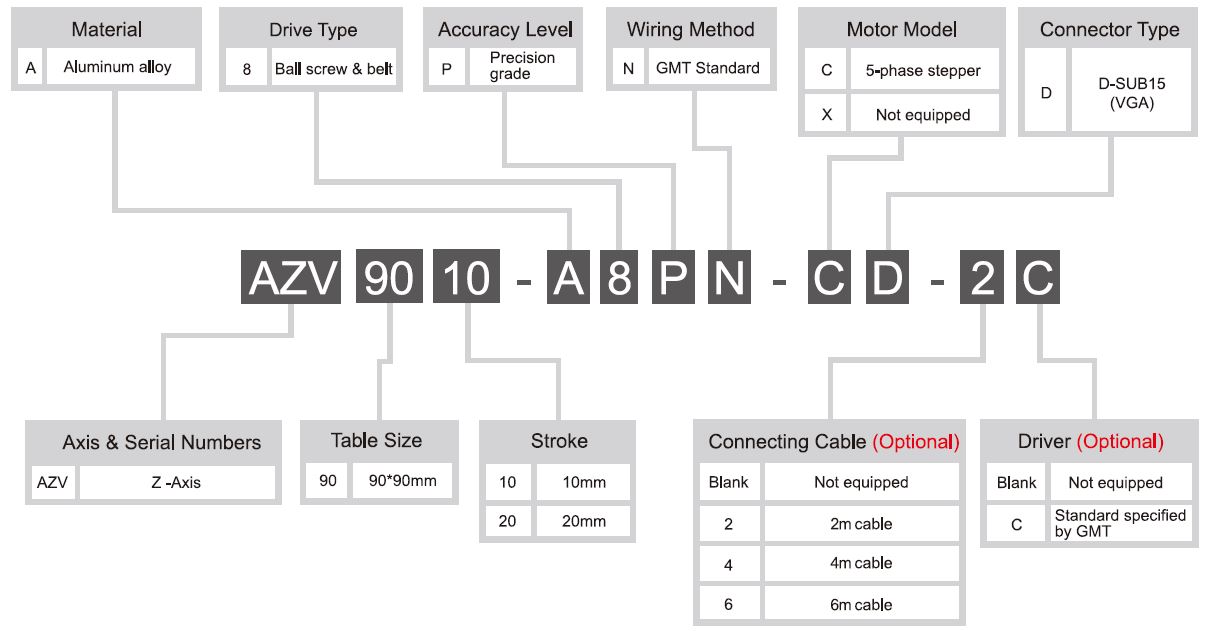

Model
AZV9010-A8PN-CD
AZV9020-A8PN-CD
