Mold base parts
SWP

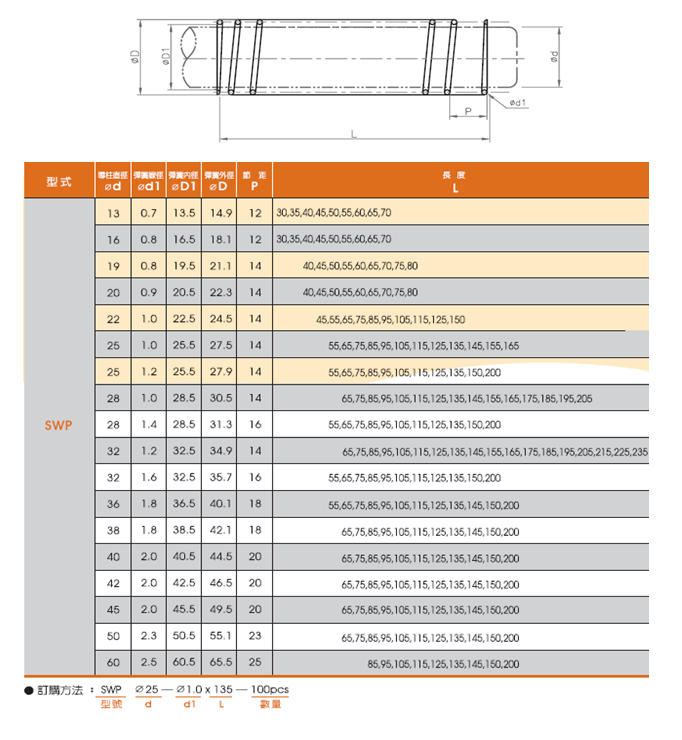

★Guide Post Accessories★Ball Sleeve Spring (placed outside the guide post) ★Material: SWP-B+Fe3O4 (dyed black)
- Specifications
- Technical Data
- Image Download
Total of 199 models
| Model | SWP130730 | SWP130735 | SWP130740 | SWP130745 | SWP130750 | SWP130755 | SWP130760 | SWP130765 | SWP130770 | SWP160830 | SWP160835 | SWP160840 | SWP160845 | SWP160850 | SWP160855 | SWP160860 | SWP160865 | SWP160870 | SWP190840 | SWP190845 | SWP190850 | SWP190855 | SWP190860 | SWP190865 | SWP190870 | SWP190875 | SWP190880 | SWP200940 | SWP200945 | SWP200950 | SWP200955 | SWP200960 | SWP200965 | SWP200970 | SWP200975 | SWP200980 | SWP221045 | SWP221055 | SWP221065 | SWP221075 | SWP221085 | SWP221095 | SWP2210105 | SWP2210115 | SWP2210125 | SWP2210150 | SWP251055 | SWP251065 | SWP251075 | SWP251085 | SWP251095 | SWP2510105 | SWP2510115 | SWP2510125 | SWP2510135 | SWP2510145 | SWP2510155 | SWP2510165 | SWP251255 | SWP251265 | SWP251275 | SWP251285 | SWP251295 | SWP2512105 | SWP2512115 | SWP2512125 | SWP2512135 | SWP2512150 | SWP2512200 | SWP281065 | SWP281075 | SWP281085 | SWP281095 | SWP2810105 | SWP2810115 | SWP2810125 | SWP2810135 | SWP2810145 | SWP2810155 | SWP2810165 | SWP2810175 | SWP2810185 | SWP2810195 | SWP2810205 | SWP281455 | SWP281465 | SWP281475 | SWP281485 | SWP281495 | SWP2814105 | SWP2814115 | SWP2814125 | SWP2814135 | SWP2814150 | SWP2814200 | SWP321265 | SWP321275 | SWP321285 | SWP321295 | SWP3212105 | SWP3212115 | SWP3212125 | SWP3212135 | SWP3212145 | SWP3212155 | SWP3212165 | SWP3212175 | SWP3212185 | SWP3212195 | SWP3212205 | SWP3212215 | SWP321225 | SWP3212235 | SWP321655 | SWP321665 | SWP321675 | SWP321685 | SWP321695 | SWP3216105 | SWP321115 | SWP3216135 | SWP3216150 | SWP3216200 | SWP361855 | SWP361865 | SWP361875 | SWP361885 | SWP361895 | SWP3618105 | SWP3618115 | SWP3618125 | SWP3618135 | SWP3618145 | SWP3618150 | SWP3618200 | SWP381865 | SWP381875 | SWP381885 | SWP381895 | SWP3818105 | SWP3818115 | SWP3818125 | SWP3818135 | SWP3818145 | SWP3818150 | SWP3818200 | SWP402065 | SWP402075 | SWP402085 | SWP402095 | SWP4020105 | SWP4020115 | SWP4020125 | SWP4020135 | SWP4020145 | SWP4020150 | SWP4020200 | SWP422065 | SWP422075 | SWP422085 | SWP422095 | SWP4220105 | SWP4220115 | SWP4220125 | SWP4220135 | SWP4220145 | SWP4220150 | SWP4220200 | SWP452065 | SWP452075 | SWP452085 | SWP452095 | SWP4520105 | SWP4520115 | SWP4520125 | SWP4520135 | SWP4520145 | SWP4520150 | SWP4520200 | SWP502365 | SWP502375 | SWP502385 | SWP502395 | SWP5023105 | SWP5023115 | SWP5023125 | SWP5023135 | SWP5023145 | SWP5023150 | SWP5023200 | SWP602585 | SWP602595 | SWP6025105 | SWP6025115 | SWP6025125 | SWP6025135 | SWP6025145 | SWP6025150 | SWP6025200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| name | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring | Ball sleeve spring |
| Material | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) | SWP-B+Fe3O4 (stains black) |
| Guide pillar diameter Ød (mm) | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | twenty two | twenty two | twenty two | twenty two | twenty two | twenty two | twenty two | twenty two | twenty two | twenty two | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Spring wire diameter Ød1 (mm) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.3 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Spring inner diameter ØD (mm) | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 19.5 | 19.5 | 19.5 | 19.5 | 19.5 | 19.5 | 19.5 | 19.5 | 19.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 28.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 32.5 | 36.5 | 36.5 | 36.5 | 36.5 | 36.5 | 36.5 | 36.5 | 36.5 | 36.5 | 36.5 | 36.5 | 36.5 | 38.5 | 38.5 | 38.5 | 38.5 | 38.5 | 38.5 | 38.5 | 38.5 | 38.5 | 38.5 | 38.5 | 40.5 | 40.5 | 40.5 | 40.5 | 40.5 | 40.5 | 40.5 | 40.5 | 40.5 | 40.5 | 40.5 | 42.5 | 42.5 | 42.5 | 42.5 | 42.5 | 42.5 | 42.5 | 42.5 | 42.5 | 42.5 | 42.5 | 45.5 | 45.5 | 45.5 | 45.5 | 45.5 | 45.5 | 45.5 | 45.5 | 45.5 | 45.5 | 45.5 | 50.5 | 50.5 | 50.5 | 50.5 | 50.5 | 50.5 | 50.5 | 50.5 | 50.5 | 50.5 | 50.5 | 60.5 | 60.5 | 60.5 | 60.5 | 60.5 | 60.5 | 60.5 | 60.5 | 60.5 |
| Spring outer diameter ØD1 (mm) | 14.9 | 14.9 | 14.9 | 14.9 | 14.9 | 14.9 | 14.9 | 14.9 | 14.9 | 18.1 | 18.1 | 18.1 | 18.1 | 18.1 | 18.1 | 18.1 | 18.1 | 18.1 | 21.1 | 21.1 | 21.1 | 21.1 | 21.1 | 21.1 | 21.1 | 21.1 | 21.1 | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 | 22.3 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 24.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.5 | 27.9 | 27.9 | 27.9 | 27.9 | 27.9 | 27.9 | 27.9 | 27.9 | 27.9 | 27.9 | 27.9 | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 | 30.5 | 31.3 | 31.3 | 31.3 | 31.3 | 31.3 | 31.3 | 31.3 | 31.3 | 31.3 | 31.3 | 31.3 | 34.9 | 34.9 | 34.9 | 34.9 | 34.9 | 34.9 | 34.9 | 34.9 | 34.9 | 34.9 | 34.9 | 34.9 | 34.9 | 34.9 | 34.9 | 34.9 | 34.9 | 34.9 | 35.7 | 35.7 | 35.7 | 35.7 | 35.7 | 35.7 | 35.7 | 35.7 | 35.7 | 35.7 | 40.1 | 40.1 | 40.1 | 40.1 | 40.1 | 40.1 | 40.1 | 40.1 | 40.1 | 40.1 | 40.1 | 40.1 | 42.1 | 42.1 | 42.1 | 42.1 | 42.1 | 42.1 | 42.1 | 42.1 | 42.1 | 42.1 | 42.1 | 44.5 | 44.5 | 44.5 | 44.5 | 44.5 | 44.5 | 44.5 | 44.5 | 44.5 | 44.5 | 44.5 | 46.5 | 46.5 | 46.5 | 46.5 | 46.5 | 46.5 | 46.5 | 46.5 | 46.5 | 46.5 | 46.5 | 49.5 | 49.5 | 49.5 | 49.5 | 49.5 | 49.5 | 49.5 | 49.5 | 49.5 | 49.5 | 49.5 | 55.1 | 55.1 | 55.1 | 55.1 | 55.1 | 55.1 | 55.1 | 55.1 | 55.1 | 55.1 | 55.1 | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 |
| Pitch P (mm) | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | twenty three | twenty three | twenty three | twenty three | twenty three | twenty three | twenty three | twenty three | twenty three | twenty three | twenty three | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| L(mm) | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 45 | 55 | 65 | 75 | 85 | 95 | 105 | 115 | 125 | 150 | 55 | 65 | 75 | 85 | 95 | 105 | 115 | 125 | 135 | 145 | 155 | 165 | 55 | 65 | 75 | 85 | 95 | 105 | 115 | 125 | 135 | 150 | 200 | 65 | 75 | 85 | 95 | 105 | 115 | 125 | 135 | 145 | 155 | 165 | 175 | 185 | 195 | 205 | 55 | 65 | 75 | 85 | 95 | 105 | 115 | 125 | 135 | 150 | 200 | 65 | 75 | 85 | 95 | 105 | 115 | 125 | 135 | 145 | 155 | 165 | 175 | 185 | 195 | 205 | 215 | 225 | 235 | 55 | 65 | 75 | 85 | 95 | 105 | 115 | 135 | 150 | 200 | 55 | 65 | 75 | 85 | 95 | 105 | 115 | 125 | 135 | 145 | 150 | 200 | 65 | 75 | 85 | 95 | 105 | 115 | 125 | 135 | 145 | 150 | 200 | 65 | 75 | 85 | 95 | 105 | 115 | 125 | 135 | 145 | 150 | 200 | 65 | 75 | 85 | 95 | 105 | 115 | 125 | 135 | 145 | 150 | 200 | 65 | 75 | 85 | 95 | 105 | 115 | 125 | 135 | 145 | 150 | 200 | 65 | 75 | 85 | 95 | 105 | 115 | 125 | 135 | 145 | 150 | 200 | 85 | 95 | 105 | 115 | 125 | 135 | 145 | 150 | 200 |
Product Specifications
