Mold base parts
All Guide post accessories Guide sleeve accessories Precision grade fixed pin Precision grade fixed pin bushing

STW

STW

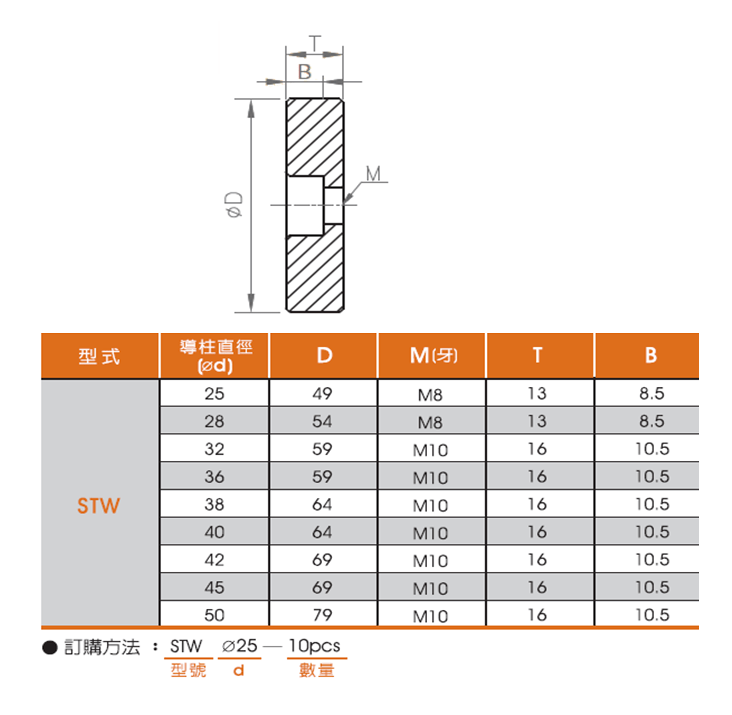

★Guide Post Accessories★Lower Spacer (for outer guide posts) ★Material: S50C
  • Specifications
  • Technical Data
  • Image Download
Total of 9 models
Model STW2513 STW2813 STW3216 STW3616 STW3816 STW4016 STW4216 STW4516 STW5016
Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry Add To Inquiry
name lower pad lower pad lower pad lower pad lower pad lower pad lower pad lower pad lower pad
Material S50C S50C S50C S50C S50C S50C S50C S50C S50C
outer diameter of guide post Ød (mm) 25 28 32 36 38 40 42 45 50
ØD(mm) 49 54 59 59 64 64 69 69 79
M (teeth) M8 M8 M10 M10 M10 M10 M10 M10 M10
T(mm) 13 13 16 16 16 16 16 16 16
B(mm) 8.5 8.5 10.5 10.5 10.5 10.5 10.5 10.5 10.5
Product Specifications
Specifications
name
Material
outer diameter of guide post Ød (mm)
ØD(mm)
M (teeth)
T(mm)
B(mm)
