Mold base parts
STV

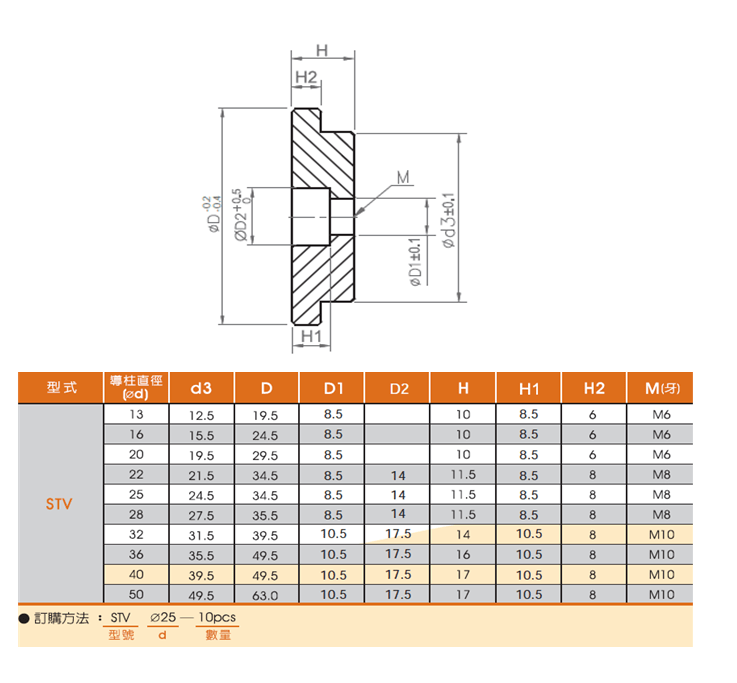

★Guide Post Accessories★Lower Spacer (for outer guide posts) ★Material: S50C
- Specifications
- Technical Data
- Image Download
Total of 10 models
| Model | STV1310 | STV1610 | STV2010 | STV22115 | STV25115 | STV28115 | STV3214 | STV3616 | STV4017 | STV5017 |
|---|---|---|---|---|---|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| name | Lower pad for outer guide post | Lower pad for outer guide post | Lower pad for outer guide post | Lower pad for outer guide post | Lower pad for outer guide post | Lower pad for outer guide post | Lower pad for outer guide post | Lower pad for outer guide post | Lower pad for outer guide post | Lower pad for outer guide post |
| Material | S50C | S50C | S50C | S50C | S50C | S50C | S50C | S50C | S50C | S50C |
| outer diameter of guide post Ød (mm) | 13 | 16 | 20 | twenty two | 25 | 28 | 32 | 36 | 40 | 50 |
| Ød3(mm) | 12.5 | 15.5 | 19.5 | 21.5 | 24.5 | 27.5 | 31.5 | 35.5 | 39.5 | 49.5 |
| ØD(mm) | 19.5 | 24.5 | 29.5 | 34.5 | 34.5 | 35.5 | 39.5 | 49.5 | 49.5 | 63 |
| ØD1(mm) | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| ØD2(mm) | none | none | none | 14 | 14 | 14 | 17.5 | 17.5 | 17.5 | 17.5 |
| H(mm) | 10 | 10 | 10 | 11.5 | 11.5 | 11.5 | 14 | 16 | 17 | 17 |
| H1(mm) | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 8.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| H2 (mm) | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| M (teeth) | M6 | M6 | M6 | M8 | M8 | M8 | M10 | M10 | M10 | M10 |
