Mold base parts
ST-HS
★Guide Post Accessories★High-Speed Buoyancy Cap★Material: S45C
- Specifications
- Technical Data
- Image Download
Total of 10 models
| Model | STHS2220 | STHS2225 | STHS2525 | STHS2530 | STHS2825 | STHS2830 | STHS3225 | STHS3230 | STHS3625 | STHS3630 |
|---|---|---|---|---|---|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| name | High-speed floating cover | High-speed floating cover | High-speed floating cover | High-speed floating cover | High-speed floating cover | High-speed floating cover | High-speed floating cover | High-speed floating cover | High-speed floating cover | High-speed floating cover |
| Material | S45C | S45C | S45C | S45C | S45C | S45C | S45C | S45C | S45C | S45C |

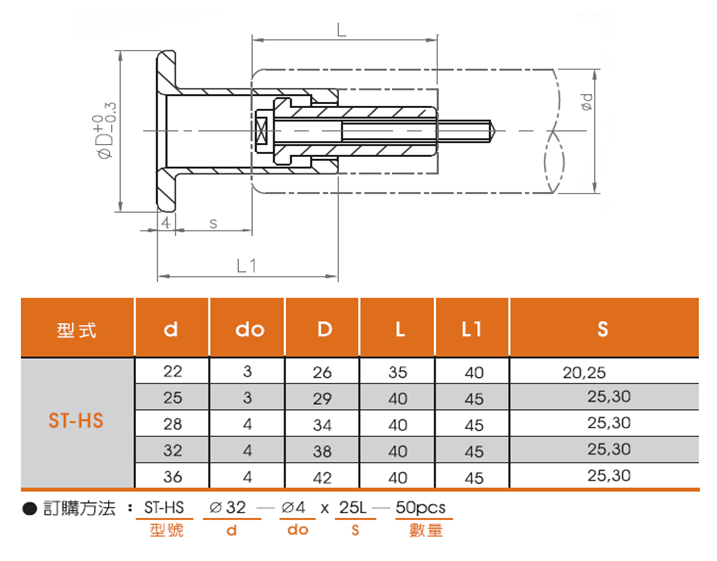

| outer diameter of guide post Ød (mm) | twenty two | twenty two | 25 | 25 | 28 | 28 | 32 | 32 | 36 | 36 |
| Ødo(mm) | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
| ØD(mm) | 26 | 26 | 29 | 29 | 34 | 34 | 38 | 38 | 42 | 42 |
| L(mm) | 35 | 35 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| L1(mm) | 40 | 40 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| S(mm) | 20 | 25 | 25 | 30 | 25 | 30 | 25 | 30 | 25 | 30 |
Product Specifications
