Automation Module Series
Actuator GK2650
★
Guiding type - Gothic arc - groove rail with linear ball bearing formed to a strong structure.
★
Ball screw feeding is equipped high and easy changeable transmission, as well as it's high precision and life utility feature.
★
Accuracy of Precision Type(P) and Standard(N) Type combined to various rail length for options fit to needs.
★
Lightweight design from aluminum alloy material to save transportation budget and inconvenience.
- Specifications
- Technical Data
- Image Download
Total of 2 models
| Model | GK2650-N | GK2650-P |
|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry |
| Body dimensions (height x width) (mm) | 26*50 | 26*50 |
| Travel Stroke (mm) | 60, 110, 160, 210 | 60, 110, 160, 210 |
| Lead (mm) | 2 | 2 |
| Maximum stepping speed (mm/sec) *1 | 40 | 40 |
| Servo maximum speed (mm/sec) *1 | 100 | 100 |
| Lead (mm) | 5 | 5 |
| Maximum stepping speed (mm/sec) *1 | 100 | 100 |
| Servo maximum speed (mm/sec) *1 | 250 | 250 |
| Drive Type | Ø8 ball screw | Ø8 ball screw |
| Rail type | Circulating linear ball guide | Circulating linear ball guide |
| Stage Material | A: Aluminum Alloy | A: Aluminum Alloy |
| Stage Material | S: Carbon steel | S: Carbon steel |
| Accuracy Level | N: Standard type | P: Precision type |
| Unidirectional positioning accuracy (mm) | - | 0.02 |
| Reciprocating positioning accuracy (mm) | ± 0.005 | ± 0.003 |
| Walking parallelism (mm) | 0.025 | 0.01 |
| Maximum torque (N・cm) | 1.5 | 3 |
| Open-loop driver | ☐28, GDL22G-D | ☐28, GDL22G-D |
| Closed-loop driver | - | - |
| Stepper Electric - Stage Table Side Connector | 15-pin male connector D-SUB | 15-pin male connector D-SUB |
| Stepper Electric - Transmission Line Side Connector | 15-pin female connector D-SUB | 15-pin female connector D-SUB |

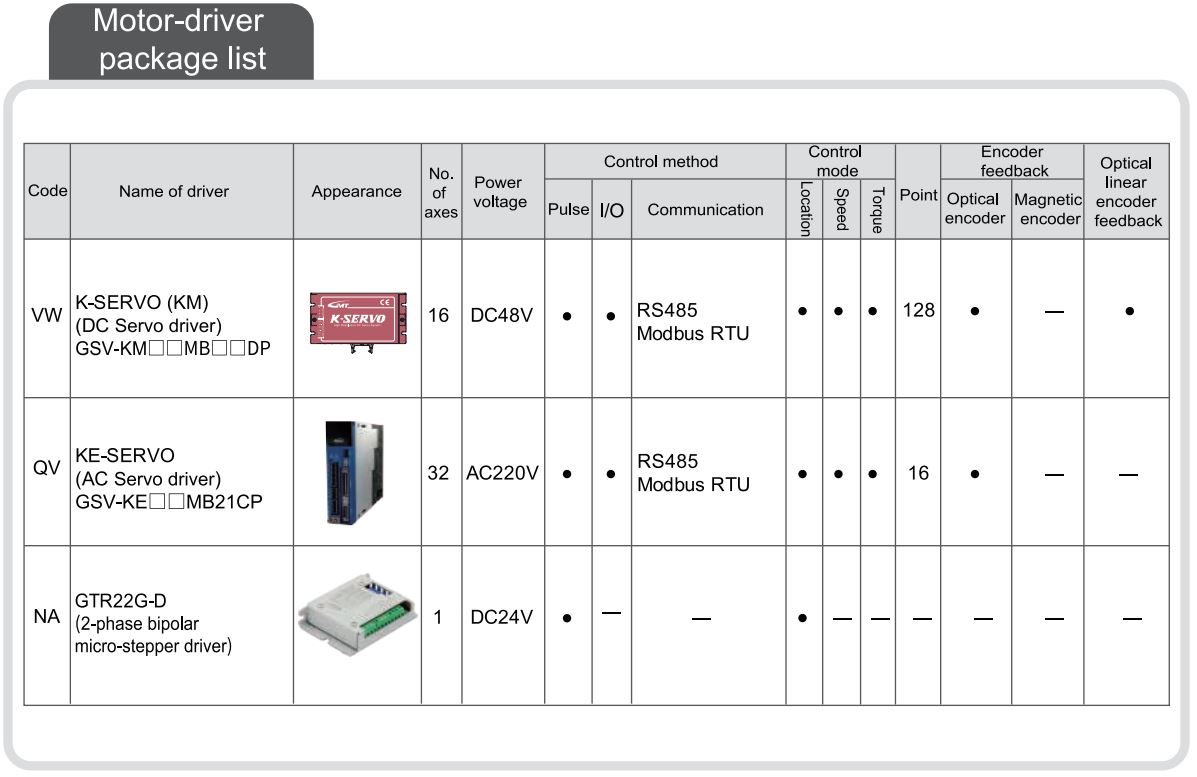

| DC servo motor | 100W: GSVM-D01MD4 | 100W: GSVM-D01MD4 |
| DC servo drive | 100W: K-SERVO (GSV-KM01MR-48DP) | 100W: K-SERVO (GSV-KM01MR-48DP) |
| DC Servo Electrical_Stage Table Side Connector | Manufacturer: TE Connectivity | Manufacturer: TE Connectivity |
| DC Servo Electrical_Stage Table Side Connector | Power line: 172159-1+170355-1 (male end) | Power line: 172159-1+170355-1 (male end) |
| DC Servo Electrical_Stage Table Side Connector | Encoding lines: 172161-1+170365-1 (male end) | Encoding lines: 172161-1+170365-1 (male end) |
| DC Servo Electrical - Transmission Line Side Connector | Manufacturer: KST | Manufacturer: KST |
| DC Servo Electrical - Transmission Line Side Connector | Power cable: E1510-RED (European standard terminal) | Power cable: E1510-RED (European standard terminal) |
| DC Servo Electrical - Transmission Line Side Connector | Manufacturer: JST | Manufacturer: JST |
| DC Servo Electrical - Transmission Line Side Connector | Encoding cable: PHDR-12VS+SPHD-001T-P0.5 (female end) | Encoding cable: PHDR-12VS+SPHD-001T-P0.5 (female end) |
| AC servo motor | 100W: GSVM-A01LC4 | 100W: GSVM-A01LC4 |
| AC servo drive | 100W: GSV-KE01MB21CP | 100W: GSV-KE01MB21CP |
| AC Servo Electrical - Stage Table Side Connector | Manufacturer: Tyco Electronics | Manufacturer: Tyco Electronics |
| AC Servo Electrical - Stage Table Side Connector | Power line: 172167-1 (male end) | Power line: 172167-1 (male end) |
| AC Servo Electrical - Stage Table Side Connector | Encoding line: 172171-1 (male end) | Encoding line: 172171-1 (male end) |
| AC Servo Electrical - Transmission Line Side Connector | Manufacturer: Tyco Electronics | Manufacturer: Tyco Electronics |
| AC Servo Electrical - Transmission Line Side Connector | Power line: 172159-1 (female end) | Power line: 172159-1 (female end) |
| AC Servo Electrical - Transmission Line Side Connector | Encoding line: 172163-1 (female end) | Encoding line: 172163-1 (female end) |
Product Overview
Updated: November 23, 2023
*1 The servo motor's maximum speed is calculated with 3000rpm and the stepper motor's maximum speed is calculated with 1200rpm.
*2 Without the folded parts installed, the accuracy of folded motor is measured when it is directly coupled with an actuator.
Detection method
Model

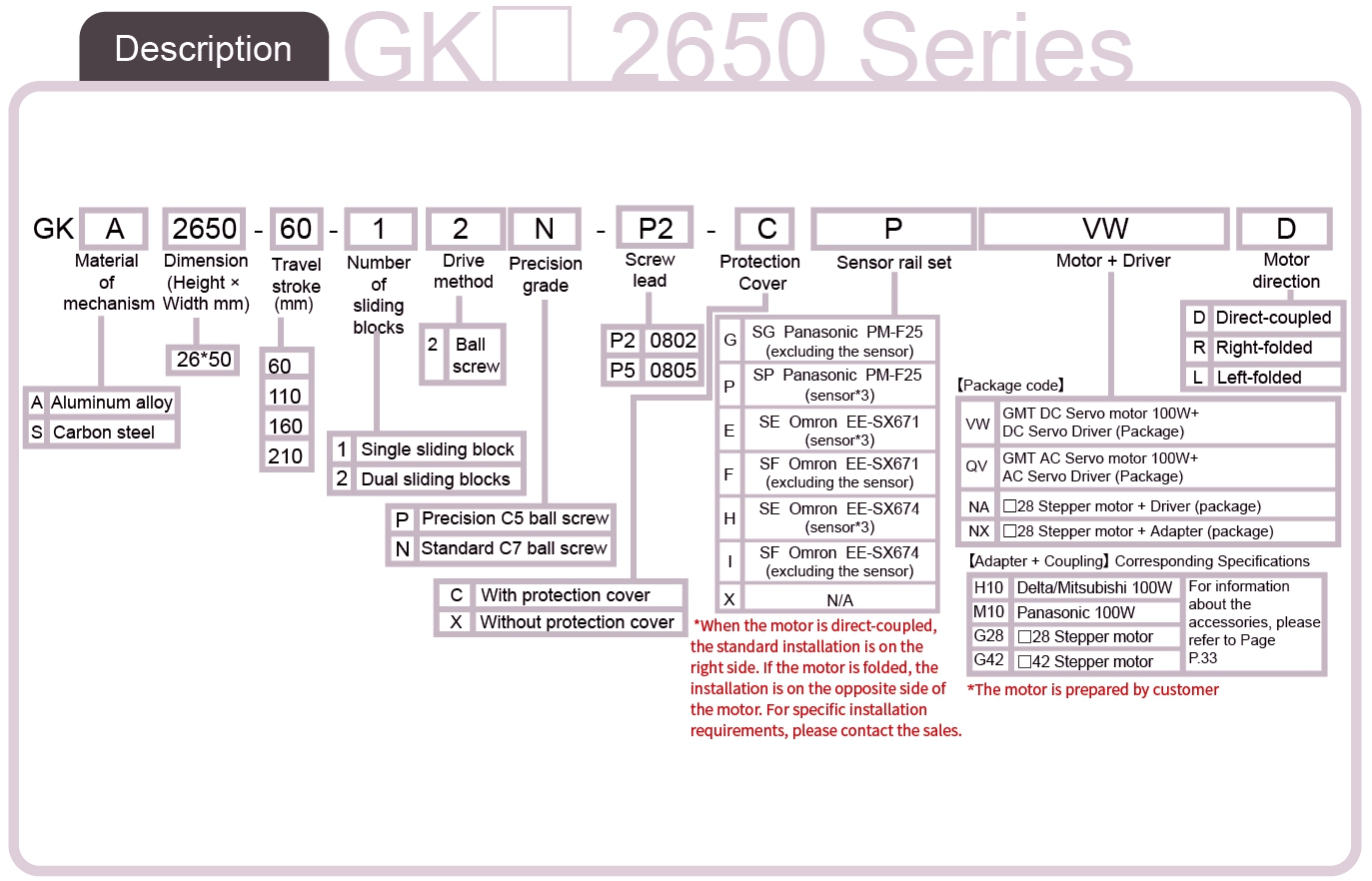

{GKA Series} GKA2650-60-12N-P2-CPXXX
{GKA Series} GKA2650-60-12N-P2-CXXXX
{GKA Series} GKA2650-60-12N-P2-XXXXX
{GKA Series} GKA2650-110-12N-P2-CPXXX
{GKA Series} GKA2650-110-12N-P2-CXXXX
{GKA Series} GKA2650-110-12N-P2-XXXXX
{GKA Series} GKA2650-160-12N-P2-CPXXX
{GKA Series} GKA2650-160-12N-P2-CXXXX
{GKA Series} GKA2650-160-12N-P2-XXXXX
{GKA Series} GKA2650-210-12N-P2-CPXXX
{GKA Series} GKA2650-210-12N-P2-CXXXX
{GKA Series} GKA2650-210-12N-P2-XXXXX
{GKS Series} GKS2650-60-12N-P2-CPXXX
{GKS Series} GKS2650-60-12N-P2-CXXXX
{GKS Series} GKS2650-60-12N-P2-XXXXX
{GKS Series} GKS2650-110-12N-P2-CPXXX
{GKS Series} GKS2650-110-12N-P2-CXXXX
{GKS Series} GKS2650-110-12N-P2-XXXXX
{GKS Series} GKS2650-160-12N-P2-CPXXX
{GKS Series} GKS2650-160-12N-P2-CXXXX
{GKS Series} GKS2650-160-12N-P2-XXXXX
{GKS Series} GKS2650-210-12N-P2-CPXXX
{GKS Series} GKS2650-210-12N-P2-CXXXX
{GKS Series} GKS2650-210-12N-P2-XXXXX
{GK Adapter Plate} GK26-G28
{GK Adapter Plate} GK26-G42
{GK Adapter Plate} GK-H10
{GK Adapter Plate} GK-M10
