Automation Module Series
Actuator GK2040
★
Guiding type - Gothic arc - groove rail with linear ball bearing formed to a strong structure.
★
Ball screw feeding is equipped high and easy changeable transmission, as well as it's high precision and life utility feature.
★
Accuracy of Precision Type(P) and Standard(N) Type combined to various rail length for options fit to needs.
★
Lightweight design from aluminum alloy material to save transportation budget and inconvenience.
- Specifications
- Technical Data
- Image Download
Total of 4 models
| Model | GKA2040-N | GKS2040-N | GKA2040-P | GKS2040-P |
|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Body dimensions (height x width) (mm) | 20*40 | 20*40 | 20*40 | 20*40 |
| Travel Stroke (mm) | 30, 80, 130 | 30, 80, 130 | 30, 80, 130 | 30, 80, 130 |
| Lead (mm) | 2 | 2 | 2 | 2 |
| Maximum stepping speed (mm/sec) *1 | 40 | 40 | 40 | 40 |
| Servo maximum speed (mm/sec) *1 | 100 | 100 | 100 | 100 |
| Lead (mm) | 6 | 6 | 6 | 6 |
| Maximum stepping speed (mm/sec) *1 | 120 | 120 | 120 | 120 |
| Servo maximum speed (mm/sec) *1 | 300 | 300 | 300 | 300 |
| Drive Type | Ø6 ball screw | Ø6 ball screw | Ø6 ball screw | Ø6 ball screw |
| Rail type | Circulating linear ball guide | Circulating linear ball guide | Circulating linear ball guide | Circulating linear ball guide |
| Stage Material | A: Aluminum Alloy | A: Aluminum Alloy | A: Aluminum Alloy | A: Aluminum Alloy |
| Stage Material | S: Carbon steel | S: Carbon steel | S: Carbon steel | S: Carbon steel |
| Accuracy Level | N: Standard type | N: Standard type | P: Precision type | P: Precision type |
| Unidirectional positioning accuracy (mm) | - | - | 0.02 | 0.02 |
| Reciprocating positioning accuracy (mm) | ± 0.005 | ± 0.005 | ± 0.003 | ± 0.003 |
| Walking parallelism (mm) | 0.025 | 0.025 | 0.01 | 0.01 |
| Maximum torque (N・cm) | 0.5 | 0.5 | 1.2 | 1.2 |
| Open-loop driver | ☐28, GDL22G-D | ☐28, GDL22G-D | ☐28, GDL22G-D | ☐28, GDL22G-D |
| Closed-loop driver | - | - | - | - |
| Stepper motor_stage side connector | 15-pin male connector D-SUB | 15-pin male connector D-SUB | 15-pin male connector D-SUB | 15-pin male connector D-SUB |
| Stepper motor - Transmission line side connector | 15-pin female connector D-SUB | 15-pin female connector D-SUB | 15-pin female connector D-SUB | 15-pin female connector D-SUB |

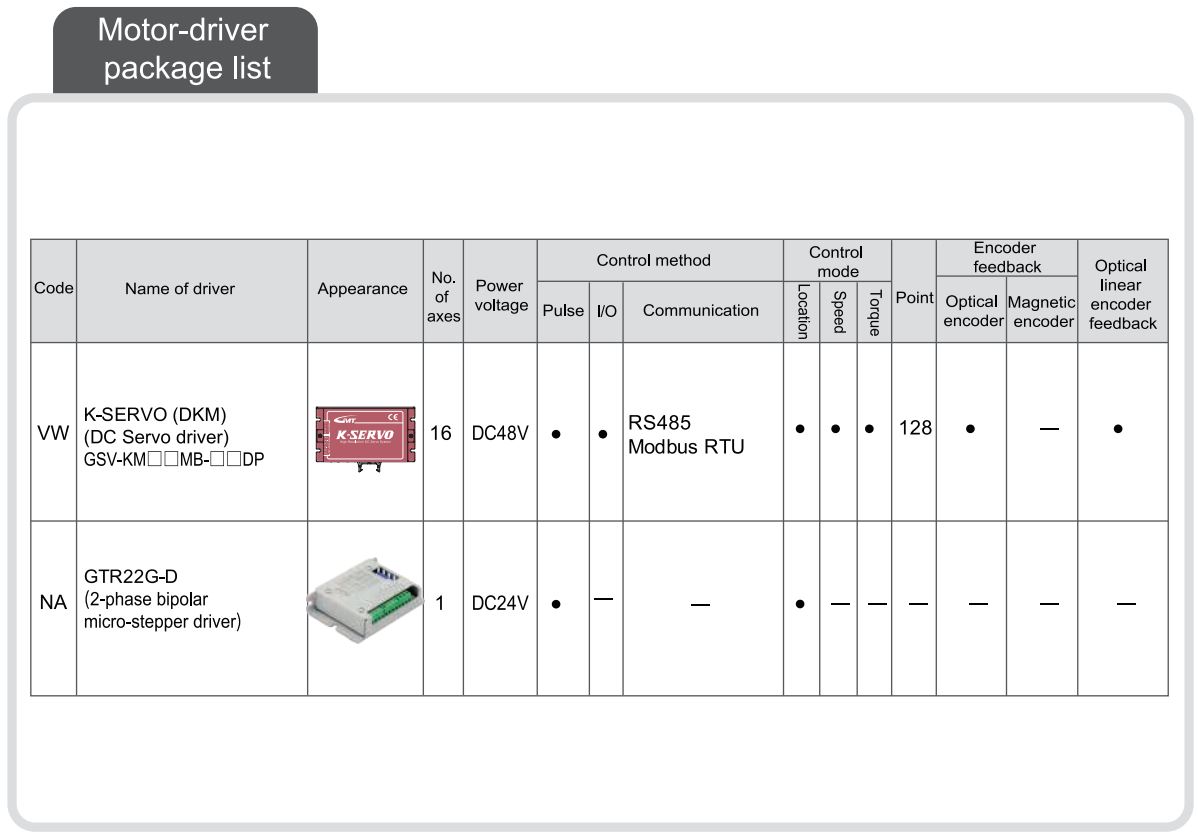

| DC servo motor | 50W: GSVM-D0BMD4 | 50W: GSVM-D0BMD4 | 50W: GSVM-D0BMD4 | 50W: GSVM-D0BMD4 |
| DC servo drive | 50W: K-SERVO (GSV-KM0BMR-48DP) | 50W: K-SERVO (GSV-KM0BMR-48DP) | 50W: K-SERVO (GSV-KM0BMR-48DP) | 50W: K-SERVO (GSV-KM0BMR-48DP) |
| DC servo electrical components - stage side connector | Manufacturer: TE Connectivity | Manufacturer: TE Connectivity | Manufacturer: TE Connectivity | Manufacturer: TE Connectivity |
| DC servo electrical components - stage side connector | Power line: 172159-1+170355-1 (male end) | Power line: 172159-1+170355-1 (male end) | Power line: 172159-1+170355-1 (male end) | Power line: 172159-1+170355-1 (male end) |
| DC servo electrical components - stage side connector | Encoding lines: 172161-1+170365-1 (male end) | Encoding lines: 172161-1+170365-1 (male end) | Encoding lines: 172161-1+170365-1 (male end) | Encoding lines: 172161-1+170365-1 (male end) |
| DC servo electrical appliance - transmission line side connector | Manufacturer: KST | Manufacturer: KST | Manufacturer: KST | Manufacturer: KST |
| DC servo electrical appliance - transmission line side connector | Power cable: E1510-RED (European standard terminal) | Power cable: E1510-RED (European standard terminal) | Power cable: E1510-RED (European standard terminal) | Power cable: E1510-RED (European standard terminal) |
| DC servo electrical appliance - transmission line side connector | Manufacturer: JST | Manufacturer: JST | Manufacturer: JST | Manufacturer: JST |
| DC servo electrical appliance - transmission line side connector | Encoding cable: PHDR-12VS+SPHD-001T-P0.5 (female end) | Encoding cable: PHDR-12VS+SPHD-001T-P0.5 (female end) | Encoding cable: PHDR-12VS+SPHD-001T-P0.5 (female end) | Encoding cable: PHDR-12VS+SPHD-001T-P0.5 (female end) |
Product Overview
Updated: November 23, 2023
*1 The servo motor's maximum speed is calculated with 3000rpm and the stepper motor's maximum speed is calculated with 1200rpm.
*2 Without the folded parts installed, the accuracy of folded motor is measured when it is directly coupled with an actuator.

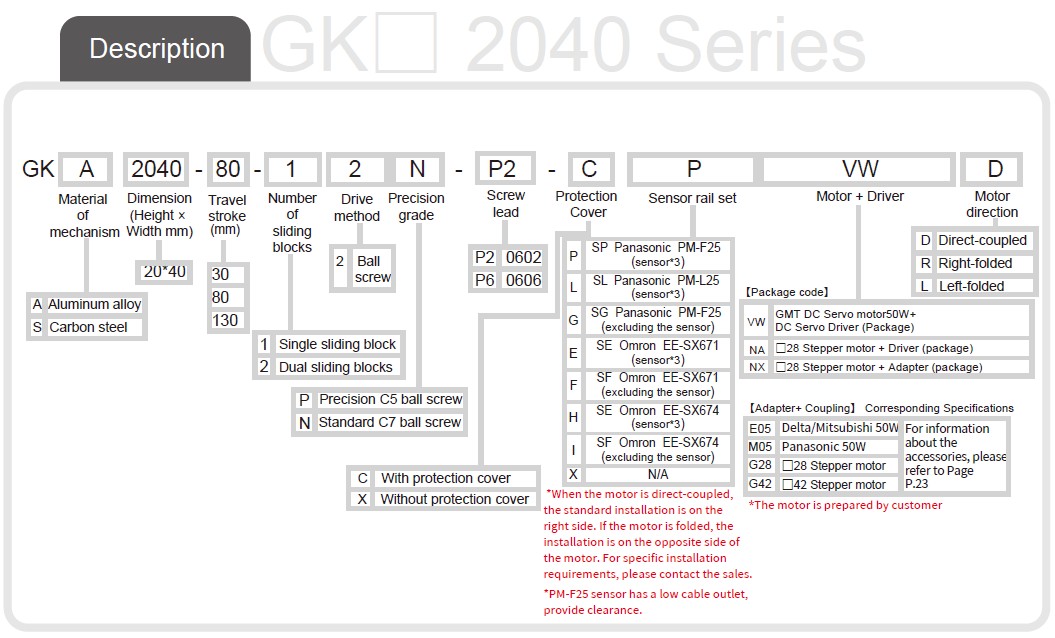

Detection method
Model (GKA Series)
GKA2040-30-12N-P2-CPXXX
GKA2040-30-12N-P2-CXXXX
GKA2040-30-12N-P2-XXXXX
GKA2040-80-12N-P2-CPXXX
GKA2040-80-12N-P2-CXXXX
GKA2040-80-12N-P2-XXXXX
GKA2040-130-12N-P2-CPXXX
GKA2040-130-12N-P2-CXXXX
GKA2040-130-12N-P2-XXXXX
Model (GKS Series)
GKS2040-30-12N-P2-CPXXX
GKS2040-30-12N-P2-CXXXX
GKS2040-30-12N-P2-XXXXX
GKS2040-80-12N-P2-CPXXX
GKS2040-80-12N-P2-CXXXX
GKS2040-80-12N-P2-XXXXX
GKS2040-130-12N-P2-CPXXX
GKS2040-130-12N-P2-CXXXX
GKS2040-130-12N-P2-XXXXX
Model (GK Adapter Plate)
GK20-E05
GK20-G28
GK20-G42
GK20-M05
