Goniometer Stage
All Goniometer Stage - α Axis Goniometer Stage - αβ Axis

MXG9-CS

MXG9-CS
MXG9-CS

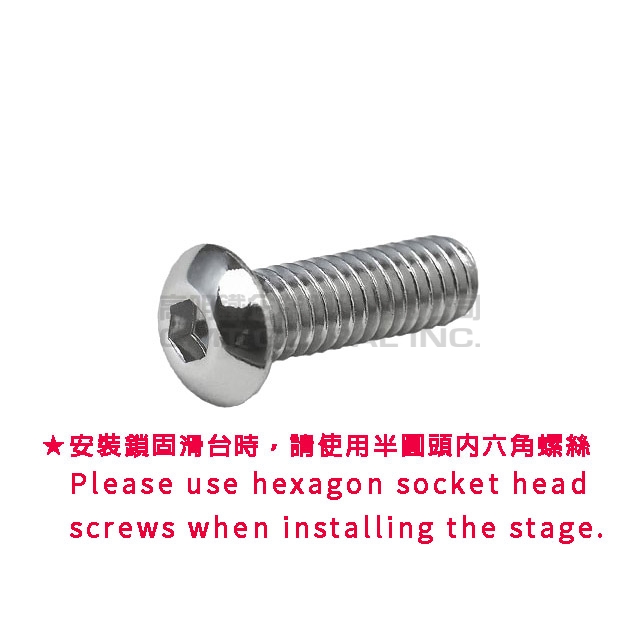

★ Dovetail groove type α-axis angle measuring stage ★ Dovetail groove track method ★ Worm gear + worm wheel drive, transmission of rotation through gears. ★ This product image is MXG4-40CS ★ When installing and locking the stage, please use round head hex socket screws.
  • Specifications
  • Technical Data
  • Image Download
Total of 1 models
Model MXG9-100CS
Inquiry Add To Inquiry
Table Size (mm) 90 x 90
Transmission direction α-axis
Transmission position central
Rotation center height H (mm) 100
Travel Stroke (mm) ± 12°
Minimum read size 1° / scale
Minimum reading size of a centimeter card ≒ 92"
Load(Kgf) 7.5
Main Unit Weight (Kg) 1.9
Material copper alloy
Surface Treatment Black fluorine
Surface Treatment Resin treatment
Main feed methods of slide table
Precision detection method
Installation method
Application Examples

Model

MXG9-100CS
Specifications
Table Size (mm)
Transmission direction
Transmission position
Rotation center height H (mm)
Travel Stroke (mm)
Minimum read size
Minimum reading size of a centimeter card
Load(Kgf)
Main Unit Weight (Kg)
Material
Surface Treatment
Send Clear
