Goniometer Stage
MXG6-VM

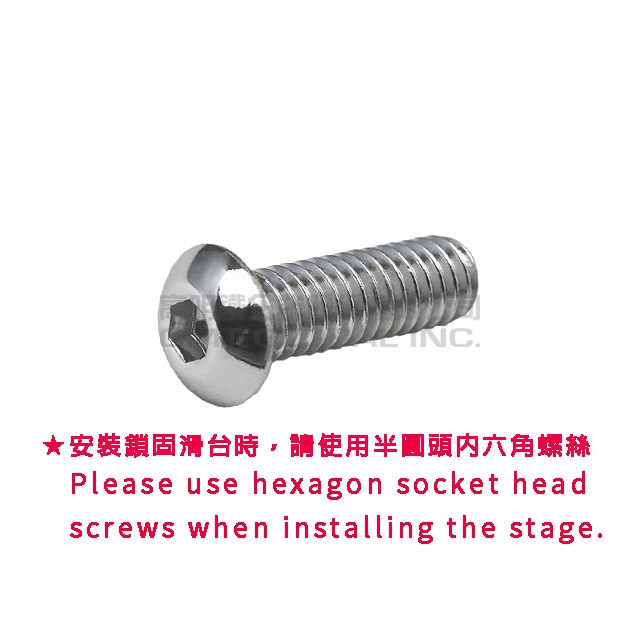

★ Cross roller type α-axis angle measuring stage ★ V-rail system ★ Micrometer drive ★ This product image is of MXG4-60VM ★ When installing and locking the stage, please use round head hex socket screws.
- Specifications
- Technical Data
- Image Download
Total of 4 models
| Model | MXG6-50VM | MXG6-75VM | MXG6-100VM | MXG6-125VM |
|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Table Size (mm) | 60 x 60 | 60 x 60 | 60 x 60 | 60 x 60 |
| Transmission direction | α-axis | α-axis | α-axis | α-axis |
| Transmission position | side | side | side | side |
| Rotation center height H (mm) | 50 | 75 | 100 | 125 |
| Travel Stroke (mm) | ± 4° | ± 3° | ± 3° | ± 2.5° |
| Minimum read size | 0.1° / graduation | 0.1° / graduation | 0.1° / graduation | 0.1° / graduation |
| Minimum reading size of a centimeter card | ≒ 32" | ≒ 23" | ≒ 18" | ≒ 15" |
| Load(Kgf) | 4.5 | 4.5 | 4.5 | 4.5 |
| Main Unit Weight (Kg) | 0.33 | 0.33 | 0.33 | 0.33 |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Surface Treatment | Black anodizing | Black anodizing | Black anodizing | Black anodizing |
