Goniometer Stage
All Goniometer Stage - α Axis Goniometer Stage - αβ Axis

MXG6-CS

MXG6-CS
MXG6-CS

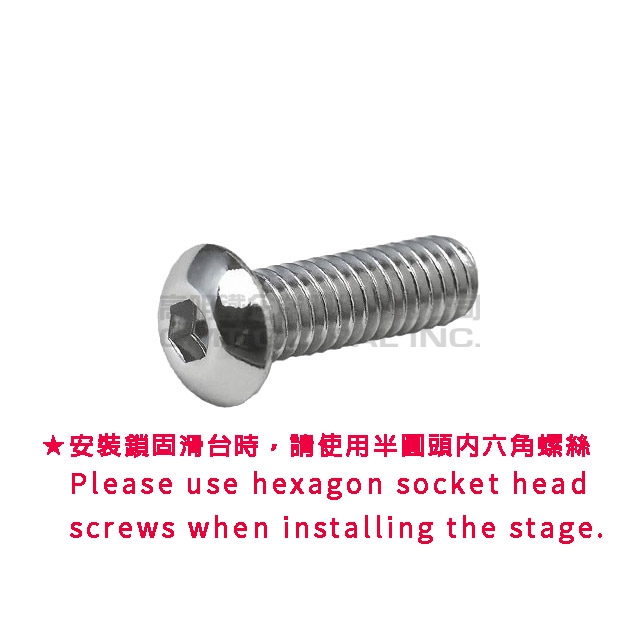

★ Dovetail groove type α-axis angle measuring stage ★ Dovetail groove track method ★ Worm gear + worm wheel drive, transmission of rotation through gears. ★ This product image is MXG4-40CS ★ When installing and locking the stage, please use round head hex socket screws.
  • Specifications
  • Technical Data
  • Image Download
Total of 3 models
Model MXG6-35CS MXG6-60CS MXG6-80CS
Inquiry Add To Inquiry Add To Inquiry Add To Inquiry
Table Size (mm) 60 x 60 60 x 60 60 x 60
Rotation center height H (mm) 35 60 80
Travel Stroke (mm) ± 25° ± 20° ± 15°
Minimum read size 0.1° / graduation 0.1° / graduation 0.1° / graduation
The amount of movement when the hand is rotated one full circle ≒ 2° ≒ 1.3° ≒ 1°
Load(Kgf) 6 6 6
Main Unit Weight (Kg) 0.69 0.55 0.55
Material copper alloy copper alloy copper alloy
Surface Treatment Black fluorine Black fluorine Black fluorine
Surface Treatment Resin treatment Resin treatment Resin treatment
Main feed methods of slide table
Precision detection method
Installation method
Application Examples

Model

MXG6-35CS
MXG6-60CS
MXG6-80CS
Specifications
Table Size (mm)
Rotation center height H (mm)
Travel Stroke (mm)
Minimum read size
The amount of movement when the hand is rotated one full circle
Load(Kgf)
Main Unit Weight (Kg)
Material
Surface Treatment
Send Clear
