Goniometer Stage
All Goniometer Stage - α Axis Goniometer Stage - αβ Axis

MXG3-CE

MXG3-CE
MXG3-CE

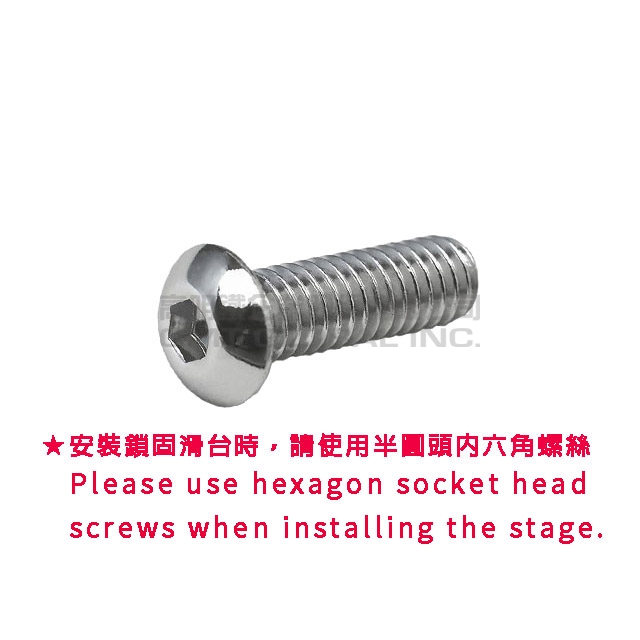

★ Dovetail groove type α-axis measuring stage ★ Dovetail groove track method ★ Threaded drive ★ This diagram is for MXG6-70CE ★ When installing and locking the stage, please use round head hex socket screws.
  • Specifications
  • Technical Data
  • Image Download
Total of 3 models
Model MXG3-30CE MXG3-44CE MXG3-57CE
Inquiry Add To Inquiry Add To Inquiry Add To Inquiry
Table Size (mm) 30 x 30 30 x 30 30 x 30
Rotation center height H (mm) 30 44 57
Travel Stroke (mm) ± 8° ± 6° ± 5°
Minimum read size 1° / scale 1° / scale 1° / scale
The amount of movement when the hand is rotated one full circle ≒ 44'39" ≒ 33'23" ≒ 26'39"
Load(Kgf) 1.5 1.5 1.5
Main Unit Weight (Kg) 0.1 0.1 0.1
Material copper alloy copper alloy copper alloy
Surface Treatment Black fluorine Black fluorine Black fluorine
Surface Treatment Resin treatment Resin treatment Resin treatment
Main feed methods of slide table
Precision detection method
Installation method
Application Examples

Model

MXG3-30CE
MXG3-44CE
MXG3-57CE
Specifications
Table Size (mm)
Rotation center height H (mm)
Travel Stroke (mm)
Minimum read size
The amount of movement when the hand is rotated one full circle
Load(Kgf)
Main Unit Weight (Kg)
Material
Surface Treatment
Send Clear
