Crossed Roller Stage
MYW40-AS

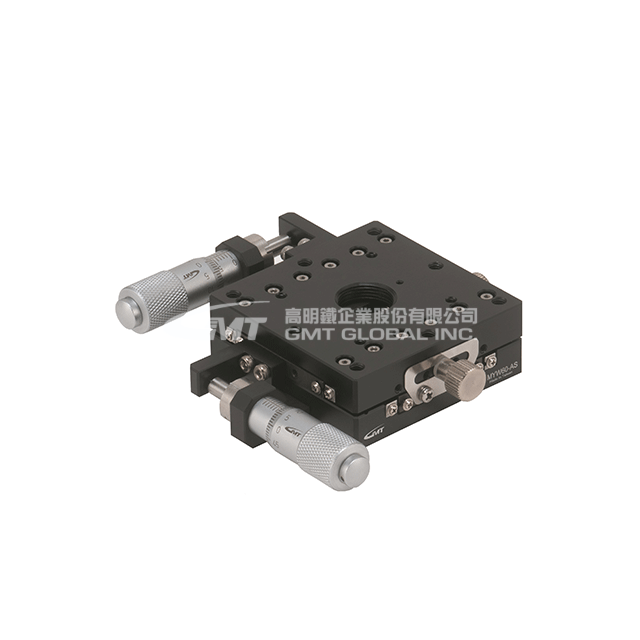

XY-axis Precision Stage - Ultra-thin Double Rail - XY-axis Table Size: 40 (mm) Travel: ±6.5 (mm) Drive Position - Side-mounted ★ The track uses a cross roller guide, employing V-grooves and cross rollers for line contact transmission, achieving high-precision movement and heavy-duty performance. ★ Uses a micrometer head (0.01mm unit) for transmission, suitable for high-precision movement. ★ Material - Aluminum alloy (lightweight, excellent conductivity) ★ This image is for MYW60-AS. SKU: MYW40-AS
- Specifications
- Technical Data
- Image Download
Total of 1 models
| Model | MYW40-AS |
|---|---|
| Inquiry | Add To Inquiry |
| Table Size (mm) | 40*40 |
| Transmission direction | XY axis |
| Transmission position | side |
| Travel Stroke (mm) | ± 6.5 |
| Minimum read size (μm) for micrometers | 10 |
| Motion accuracy (μm) | 3 |
| Load(Kgf) | 1 |
| Main Unit Weight (Kg) | 0.2 |
| Material | Aluminum Alloy |
| Surface Treatment | Black anodizing |
