Crossed Roller Stage
MYW100-AS

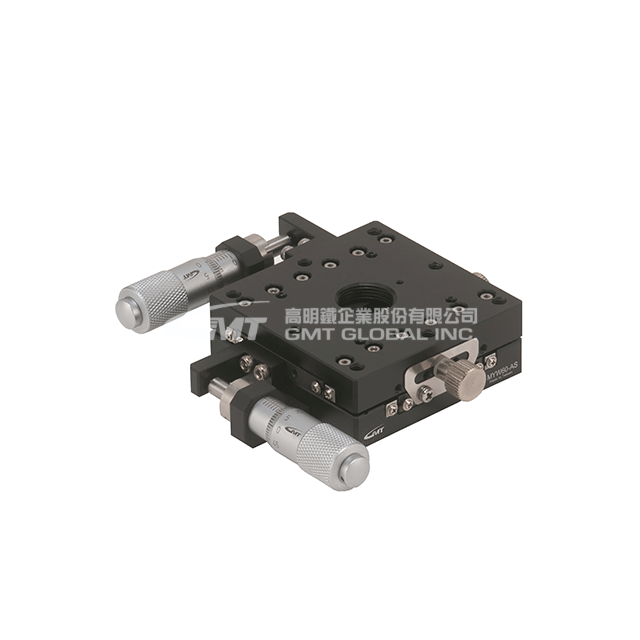

XY-axis Precision Stage - Ultra-thin Double Rail - XY-axis Table Size: 100 (mm) Travel: ±12.5 (mm) Drive Position - Side-mounted ★ The track uses a crossed roller guide, employing V-grooves and crossed rollers for line contact transmission, achieving high-precision movement and heavy-duty performance. ★ Uses a micrometer head (0.01mm unit) for transmission, suitable for high-precision movement. ★ Material - Aluminum alloy (lightweight, excellent conductivity) ★ This image is for MYW60-AS. SKU: MYW100-AS
- Specifications
- Technical Data
- Image Download
Total of 1 models
| Model | MYW100-AS |
|---|---|
| Inquiry | Add To Inquiry |
| Table Size (mm) | 100*100 |
| Transmission direction | XY axis |
| Transmission position | side |
| Travel Stroke (mm) | ± 12.5 |
| Minimum read size (μm) for micrometers | 10 |
| Motion accuracy (μm) | 3 |
| Load(Kgf) | 4 |
| Main Unit Weight (Kg) | 1.1 |
| Material | Aluminum Alloy |
| Surface Treatment | Black anodizing |
