Crossed Roller Stage
MX20-AC
★ The track system uses a crossed roller guide, and its construction utilizes V-grooves and crossed rollers for line contact transmission, achieving high-precision movement and load-bearing capacity. ★ It uses a micrometer head (0.01mm unit) for transmission, suitable for high-precision movement. ★ Material - Aluminum alloy (lightweight, excellent conductivity).
★ Model Shown: MX20-AC
★ Model Shown: MX20-AC
- Specifications
- Technical Data
- Image Download
Total of 1 models
| Model | MX20-AC |
|---|---|
| Inquiry | Add To Inquiry |
| Table Size (mm) | 20*20 |
| Transmission direction | X-axis |
| Transmission position | central |
| Travel Stroke (mm) | ± 3.2 |
| Minimum read size (μm) for micrometers | 10 |
| Motion accuracy (μm) | 3 |
| Load(Kgf) | 1 |
| Main Unit Weight (Kg) | 0.03 |
| Material | Aluminum Alloy |
| Surface Treatment | Black anodizing |
Main feed methods of slide table
Precision detection method

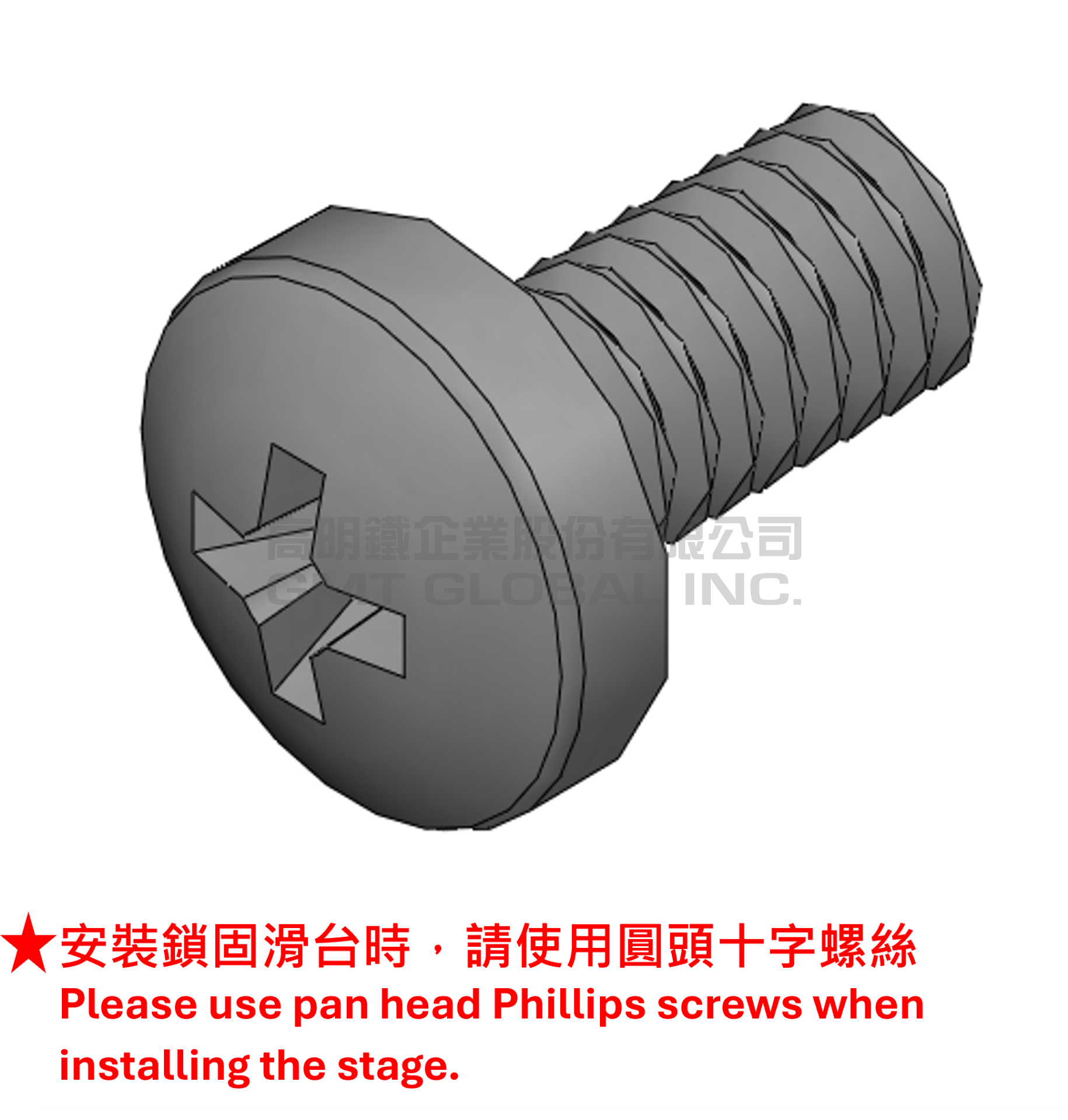

Installation method
Application Examples
Model
MX20-AC
