Gonio Stage
AXG6 - Standard
★
Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke
★
Transmission parts-Worm & Worm Gear, It transmits through the gear and is usually used in Reducer
★
Material-Brass Alloy
★

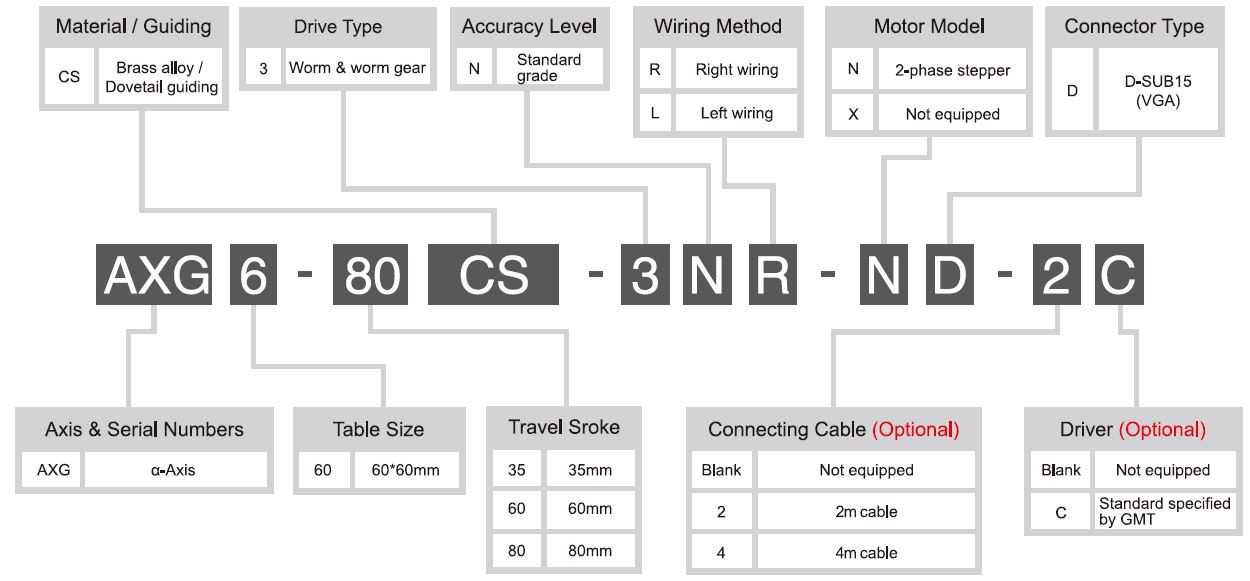

Model Shown: AXG6-80CS-3NR-ND
- Specifications
- Technical Data
- Image Download
Total of 6 models
| Model | AXG6-35CS-3NR-ND | AXG6-35CS-3NL-ND | AXG6-60CS-3NR-ND | AXG6-60CS-3NL-ND | AXG6-80CS-3NR-ND | AXG6-80CS-3NL-ND |
|---|---|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Table Size (mm) | 60*60 | 60*60 | 60*60 | 60*60 | 60*60 | 60*60 |
| Travel distance (°) | ± 12 | ± 12 | ± 10 | ± 10 | ± 7 | ± 7 |
| Drive Type | worm gear | worm gear | worm gear | worm gear | worm gear | worm gear |
| Drive Type | (Reduction ratio 1 / 188) | (Reduction ratio 1 / 188) | (Reduction ratio 1 / 276) | (Reduction ratio 1 / 276) | (Reduction ratio 1/356) | (Reduction ratio 1/356) |
| Rail | Dovetail Groove | Dovetail Groove | Dovetail Groove | Dovetail Groove | Dovetail Groove | Dovetail Groove |
| Stage Material | copper alloy | copper alloy | copper alloy | copper alloy | copper alloy | copper alloy |
| Surface Treatment | Black optical paint | Black optical paint | Black optical paint | Black optical paint | Black optical paint | Black optical paint |
| Main Unit Weight (Kg) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Coupling | FAMML16-4*5 | FAMML16-4*5 | FAMML16-4*5 | FAMML16-4*5 | FAMML16-4*5 | FAMML16-4*5 |
| Accuracy Level | N: Standard type | N: Standard type | N: Standard type | N: Standard type | N: Standard type | N: Standard type |
| Outgoing cable type (connector type) | R: Right-side installation | L: Left side installation | R: Right-side installation | L: Left side installation | R: Right-side installation | L: Left side installation |
| Resolution (pulse) (°) | 0.0095 (Full) / 0.0047 (Half) | 0.0095 (Full) / 0.0047 (Half) | 0.0065 (Full) / 0.0032 (Half) | 0.0065 (Full) / 0.0032 (Half) | 0.005 (Full) / 0.0025 (Half) | 0.005 (Full) / 0.0025 (Half) |
| Maximum speed (full-range) (°/sec) | 15 | 15 | 7.5 | 7.5 | 7 | 7 |
| One-way positioning accuracy (°) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Repeat positioning accuracy (°) | ± 0.05 | ± 0.05 | ± 0.05 | ± 0.05 | ± 0.05 | ± 0.05 |
| Load Capacity (Kgf) | 6 | 6 | 6 | 6 | 6 | 6 |
| Idling (°) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Parallelism (µm) | 50 | 50 | 50 | 50 | 50 | 50 |
| Rotation center height (mm) | ± 0.4 | ± 0.4 | ± 0.4 | ± 0.4 | ± 0.4 | ± 0.4 |
| Rotation center accuracy (mm) | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 |
| Motor_Type/Shaft Numbers | 2-phase stepper motor / ☐ 35 dual output shaft | 2-phase stepper motor / ☐ 35 dual output shaft | 2-phase stepper motor / ☐ 35 dual output shaft | 2-phase stepper motor / ☐ 35 dual output shaft | 2-phase stepper motor / ☐ 35 dual output shaft | 2-phase stepper motor / ☐ 35 dual output shaft |
| Motor_Brand/Model | GMT / 2MS-N35D36A | GMT / 2MS-N35D36A | GMT / 2MS-N35D36A | GMT / 2MS-N35D36A | GMT / 2MS-N35D36A | GMT / 2MS-N35D36A |
| Driver brand/model | GMT / GDL22G-D (optional) | GMT / GDL22G-D (optional) | GMT / GDL22G-D (optional) | GMT / GDL22G-D (optional) | GMT / GDL22G-D (optional) | GMT / GDL22G-D (optional) |
| Connector_Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS |
| Connector_Controller Side Connector | 15-pin female connector D-SUB / 12-pin female connector HRS (optional) | 15-pin female connector D-SUB / 12-pin female connector HRS (optional) | 15-pin female connector D-SUB / 12-pin female connector HRS (optional) | 15-pin female connector D-SUB / 12-pin female connector HRS (optional) | 15-pin female connector D-SUB / 12-pin female connector HRS (optional) | 15-pin female connector D-SUB / 12-pin female connector HRS (optional) |
| Sensor_Origin Sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor |
| Sensor_Limit Sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor |
| Motor proximity sensor | N / A | N / A | N / A | N / A | N / A | N / A |
| Sensor_Power Voltage | 24V ± 10% | 24V ± 10% | 24V ± 10% | 24V ± 10% | 24V ± 10% | 24V ± 10% |
| Sensor_Control Output | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA |
| Sensor_Output Control | Detection (during sensing): Output transistor OFF (non-conducting) | Detection (during sensing): Output transistor OFF (non-conducting) | Detection (during sensing): Output transistor OFF (non-conducting) | Detection (during sensing): Output transistor OFF (non-conducting) | Detection (during sensing): Output transistor OFF (non-conducting) | Detection (during sensing): Output transistor OFF (non-conducting) |
