Gonio Stage
AXG6 - Precision - Worm & Worm Gear Drive
★
Guide-Crossed-roller Guide, In structure, V-groove and crossed roller acquire movement in high accuracy and capacity by linear transmission to act a high precision movement and load capacity performance
★
Transmission parts-Worm & Worm Gear, It transmits through the gear and is usually used in Reducer
★
Material-Aluminum Alloy
★

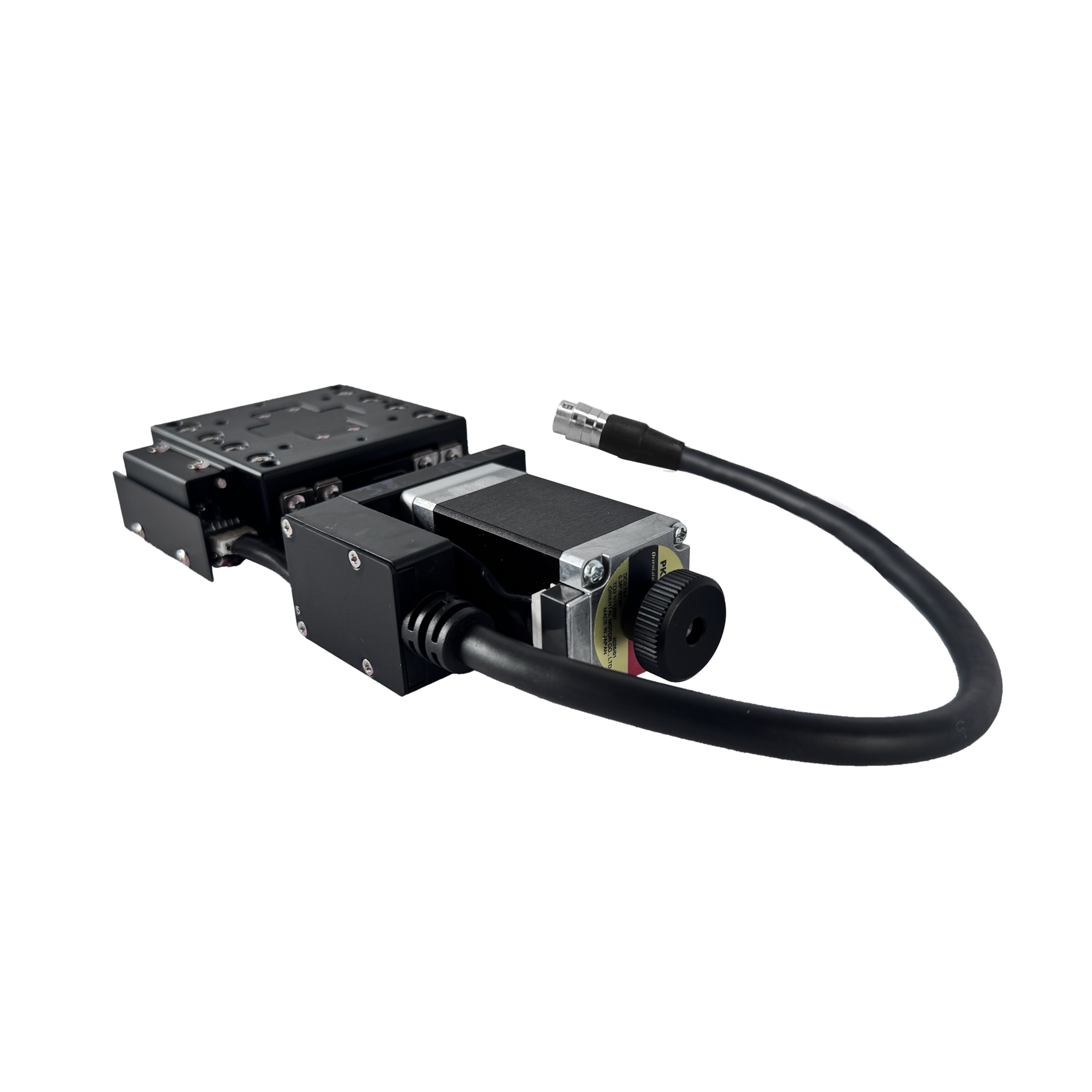

Model Shown: AXG6-75VM
- Specifications
- Technical Data
- Image Download
Total of 4 models
| Model | AXG6-50VM-3PR-CD | AXG6-75VM-3PR-CD | AXG6-100VM-3PR-CD | AXG6-125VM-3PR-CD |
|---|---|---|---|---|
| Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry | Add To Inquiry |
| Table Size (mm) | 60*60 | 60*60 | 60*60 | 60*60 |
| Travel distance (°) | ± 10 | ± 8 | ± 6 | ± 5 |
| Drive Type | Worm & Worm Gear | Worm & Worm Gear | Worm & Worm Gear | Worm & Worm Gear |
| Drive Type | (Reduction ratio 1 / 158) | (Reduction ratio 1 / 224) | (Reduction ratio 1 / 292) | (Reduction ratio 1/360) |
| Rail | Cross roller guide | Cross roller guide | Cross roller guide | Cross roller guide |
| Stage Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Surface Treatment | Black anodized | Black anodized | Black anodized | Black anodized |
| Main Unit Weight (Kg) | 0.48 | 0.48 | 0.48 | 0.48 |
| Coupling | FAMMS12-3*5 | FAMMS12-3*5 | FAMMS12-3*5 | FAMMS12-3*5 |
| Accuracy Level | P: Precision type | P: Precision type | P: Precision type | P: Precision type |
| Wiring Method | R : Right wiring | R : Right wiring | R : Right wiring | R : Right wiring |
| Wiring Method | L : Left wiring | L : Left wiring | L : Left wiring | L : Left wiring |
| Resolution (pulse) (°) | 0.00456 (Full)/ 0.00228 (Half) | 0.0032 (Full) / 0.0016 (Half) | 0.0025 (Full) / 0.00125 (Half) | 0.002 (Full) / 0.001 (Half) |
| Maximum speed (full-range) (°/sec) | 22.5 | 16 | 12.5 | 10 |
| Repeat positioning accuracy (°) | ± 0.003 | ± 0.003 | ± 0.003 | ± 0.003 |
| Load Capacity (Kgf) | 5.1 | 5.1 | 5.1 | 5.1 |
| Idling (°) | 0.01 | 0.01 | 0.01 | 0.01 |
| Rotation center height (mm) | 50 ± 0.15 | 75 ± 0.15 | 100 ± 0.15 | 125 ± 0.15 |
| Rotation center accuracy (mm) | 0.01 | 0.01 | 0.01 | 0.01 |
| Motor_Type/Shaft Numbers | 5-phase stepper motor / 28 dual output shafts | 5-phase stepper motor / 28 dual output shafts | 5-phase stepper motor / 28 dual output shafts | 5-phase stepper motor / 28 dual output shafts |
| Motor_Brand/Model | SANYO / SH5281-7211 | SANYO / SH5281-7211 | SANYO / SH5281-7211 | SANYO / SH5281-7211 |
| Driver brand/model | Please refer to the motor/drive comparison table. | Please refer to the motor/drive comparison table. | Please refer to the motor/drive comparison table. | Please refer to the motor/drive comparison table. |
| Connector_Stage Side Connector | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS | 15-Pin male end connetor D-SUB / 12-Pin male end connetor HRS |
| Connector_Controller Side Connector | 15-pin female connector D-SUB / 12-pin female connector HRS (optional) | 15-pin female connector D-SUB / 12-pin female connector HRS (optional) | 15-pin female connector D-SUB / 12-pin female connector HRS (optional) | 15-pin female connector D-SUB / 12-pin female connector HRS (optional) |
| Sensor_Origin Sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor |
| Sensor_Limit Sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor | Photoelectric sensor GMT-sensor |
| Motor proximity sensor | N / A | N / A | N / A | N / A |
| Sensor_Power Voltage | 24V ± 10% | 24V ± 10% | 24V ± 10% | 24V ± 10% |
| Sensor_Control Output | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA | NPN open collector output under 24V 8mA |
| Sensor_Output Control | Detection (during sensing): Output transistor OFF (non-conducting) | Detection (during sensing): Output transistor OFF (non-conducting) | Detection (during sensing): Output transistor OFF (non-conducting) | Detection (during sensing): Output transistor OFF (non-conducting) |
Product Overview

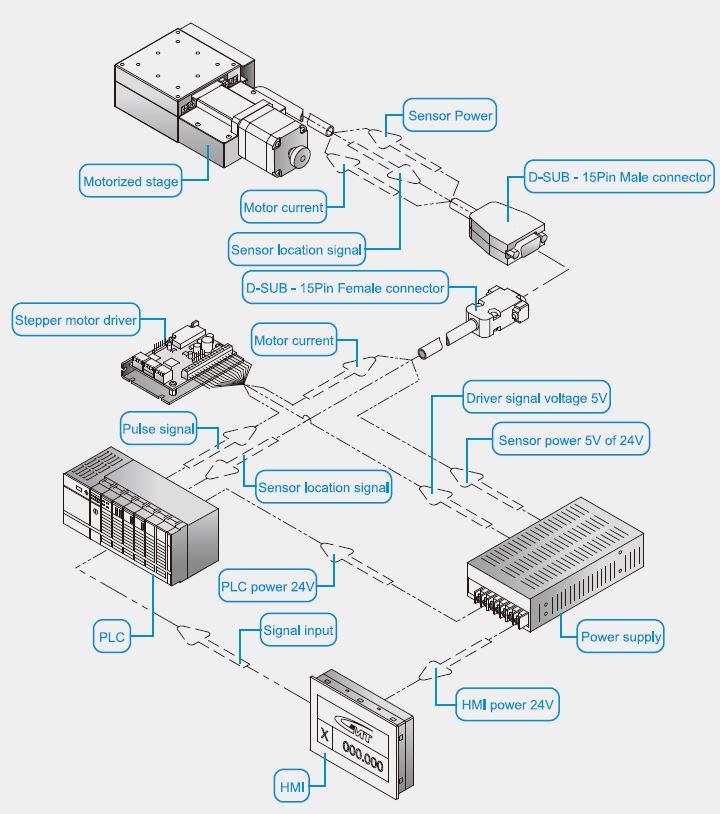

System Configuration Diagram
♦ For selection of the drivers preferred, please refer to the reference table or the catalogue of Motor・Driver.
♦ All of the drivers chosed are the specification of GMT preferred. For different needs, please choose the suitable drivers according to real functional needs.
Axis Definition

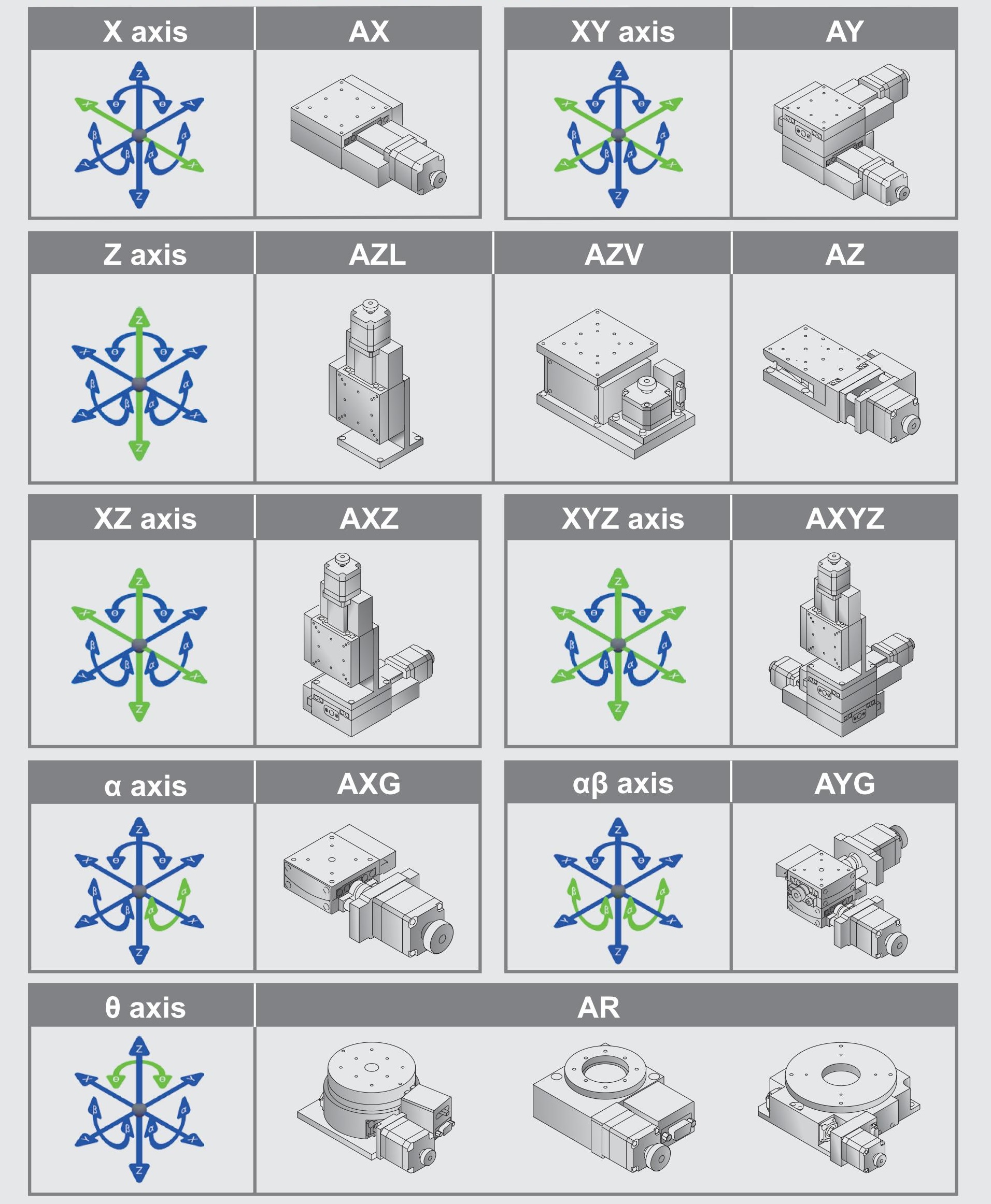

GMT has defined different axis as the following figuration according to the movement direction:
Horizontal movement direction is X and Y axis.
Vertical movement direction is Z axis.
Movement around X, Y, Z axis is defined to α axis, β axis, and θ axis.
Green arrows present the specified axis movement direction.

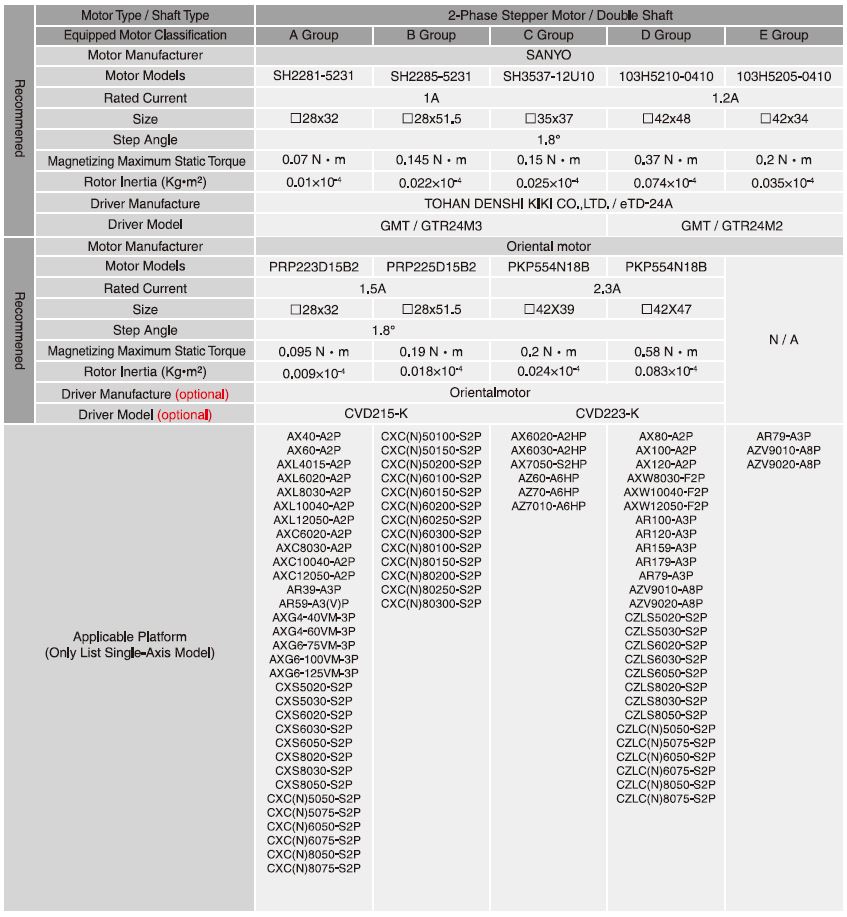

Motor•driver Reference Table
Electrical specifications

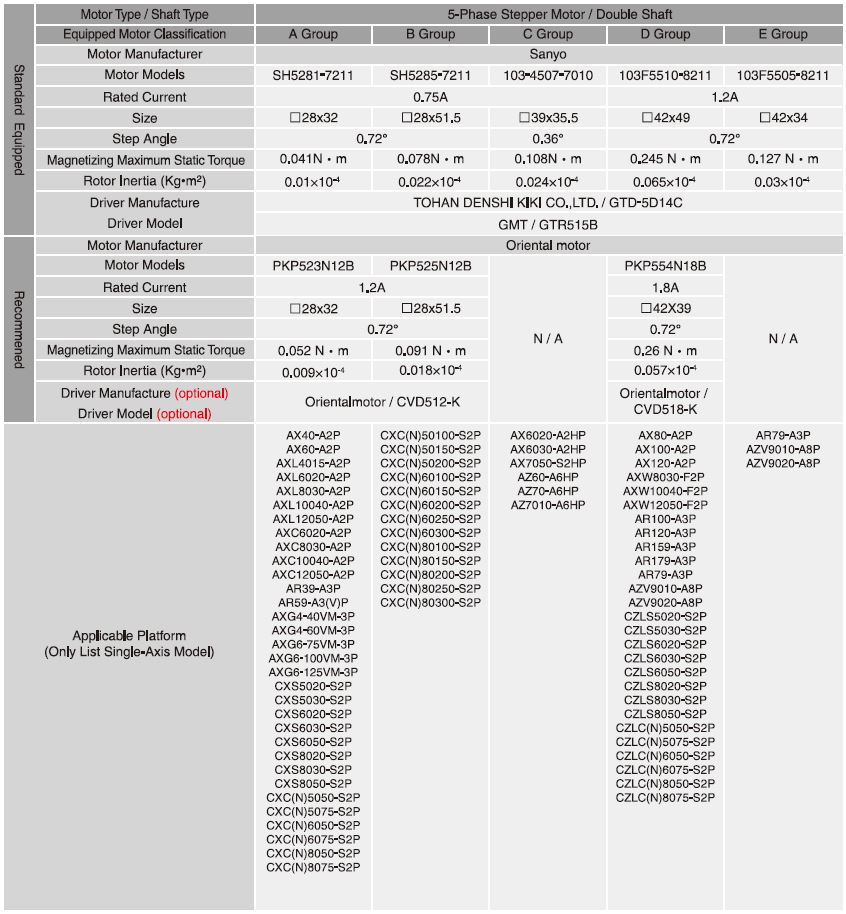

Stepper Motor/Driver Specifications Comparison Table
Electric slide table and connecting cable
Introduction to Electromagnetic Brake Stepper Motors
Introduction to Feedback Stepper Motors
Angle measuring slide table detection method (α axis)

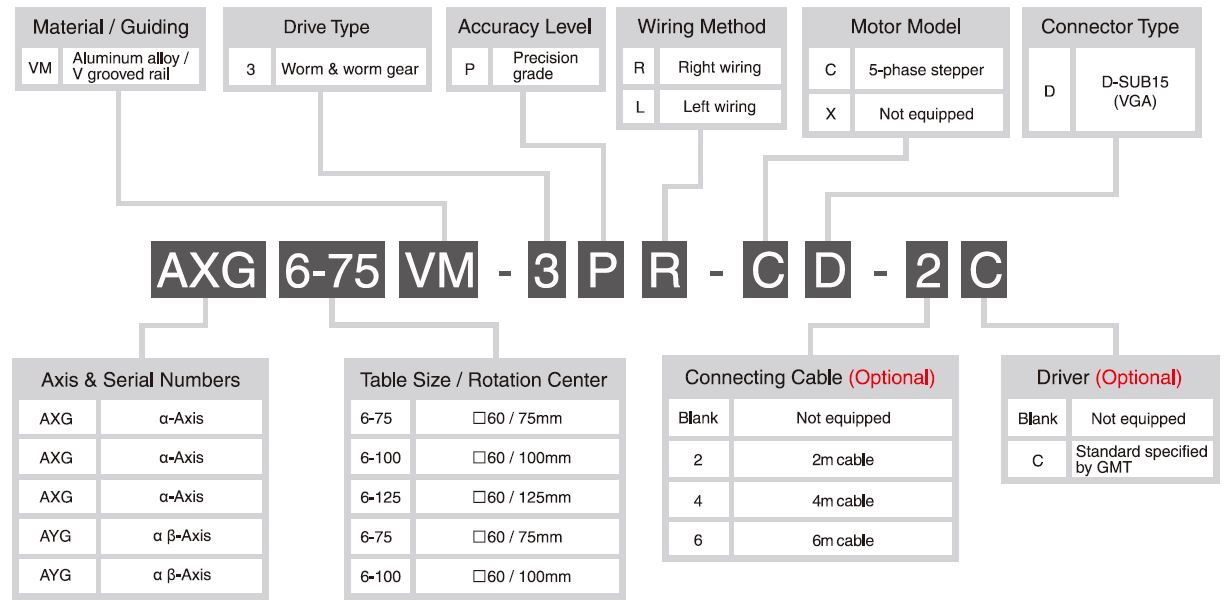

Model
AXG6-50VM-3PR-CD
AXG6-50VM-3PL-CD
AXG6-75VM-3PR-CD
AXG6-75VM-3PL-CD
AXG6-100VM-3PR-CD
AXG6-100VM-3PL-CD
AXG6-125VM-3PR-CD
AXG6-125VM-3PL-CD
