    Sorry - this product is no longer available

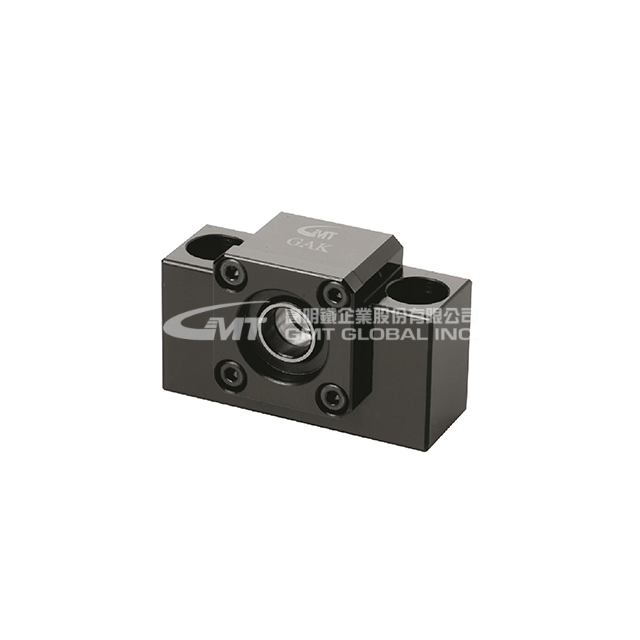

    Economic Type - Square Fixed Side-GAK-E

    Ball Screw Support Unit-Square Fixed Side Grade-Economic type (Integrated with Deep-groove Ball Bearings) Universal (without axial play) High Rigidity (with axial play)
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Model NoShaft Dia.TypePre-Loaded MaterialSurface finish
    GAK-06-E6EconomicHigh Rigidity (R)/ Universal(G)S50CBlack Dyed/ Ni-plating
    GAK-08-E8EconomicHigh Rigidity (R)/ Universal(G)S50CBlack Dyed/ Ni-plating

    GAK-10-E

    10EconomicLHigh Rigidity (R)/ Universal(G)S50CBlack Dyed/ Ni-plating
    GAK-12-E12EconomicHigh Rigidity (R)/ Universal(G)S50CBlack Dyed/ Ni-plating
    GAK-15-E15EconomicHigh Rigidity (R)/ Universal(G)S50CBlack Dyed/ Ni-Plating
    GAK-20-E20EconomicHigh Rigidity (R)/ Universal(G)S50CBlack Dyed/ Ni-plating




    Selection Notes

    [Model]:Pick up the model according to assembly method.

    Assembly:

    1.      Plane mounting:GAK、GBK、GEK、GAF、GBF、GEF、GSW、GSWE、GUN、GTN。

    2.      Suspension and spindle mount:GFK、GFF、GRWE、GUR、GTR。

    [Size]:Decide the size according to the ball screw shaft O.D., and the centre height.

    [Grade]:Standard and economic types for options.

    [Surface Finish]:Black dyed - Regular environment use, low humidity.

                               Nickel plating - Clean room use.

    [Bearing category]:Available Japanese series and Taiwanese series.
