    MXG5-CS


    α axis Dovetail Goniometer Stage
    Single axis-α axis
    Axis direction : α&β axis
    Table size : 50 (mm)
    Travel stroke : ±8°、±10°
    ★ Guide- Dovetail type.
    ★ Transmission parts- Worm gears.
    ★ Material - Brass Alloy


    This product pic. shows as MXG4-40CS.

    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update:2022.5.10

    Model No.

    MXG5-50CS

    MXG5-68CS

    MXG5-86CS

    Specification

    Table Size (mm)

    50 X 50

    Height of Rotation Center H (mm)

    50

    68

    86

    Travel Stroke (mm)

    ± 10°

    ± 10°

    ± 8°

    Micrometer Minimum Reading

    0.1° / Veriner

    Stroke Per Revolution

    ≒ 1.55°≒ 1.2°≒ 0.97°

    Allowable Loading (Kgf)

    3

    Weight (Kg)

    0.36

    0.36

    0.36

    Material

    Brass Alloy

    Surface Finish

    Black Fluororesin Finished

    Feed Position



    Characterisitc of Different Guiding Type

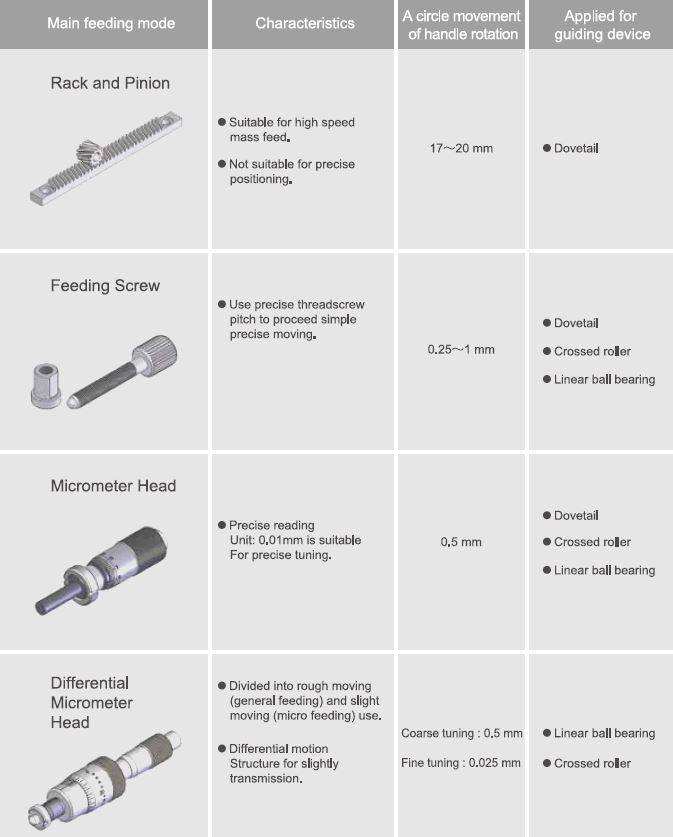

    The Main Feeding Mode of Mini Stages
