MX30-SS-28

X axis manual stage
Single axis-X axis
Table size : 30 (mm)
Travel stroke : ±3.2 (mm)
Feed position-Side feeding
★ Guide-Linear ball bearing. Slide way and body is in one unit. Ball moving in single groove is structured by 2 points – contact, and total 4 contact points in dual arc-groove to form strong rail construction.
★ Transmission Parts-Feeding screw. It is suitable for simple precise moving.
★ Material- Stainless steel

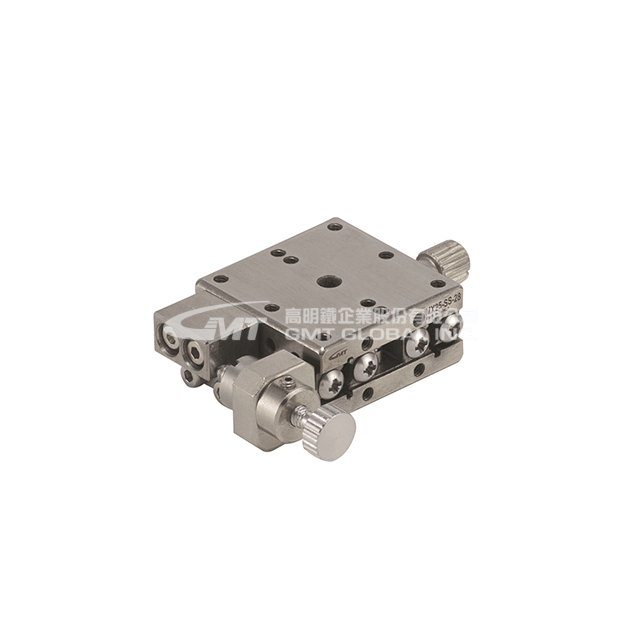

★This product pic. shows as MX25-SS-28.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Contact Us

Update：2022.4.22

Model No.		MX30-SS-28
Specification	Table Size (mm)	30 X 30
	Axis	X-Axis
	Feed Position	Side
	Travel Stroke (mm)	± 3.2
	Movement Per Knob Rotation (mm)	0.5
	Straightness Accuracy (μm)	3
	Allowable Loading (Kgf)	6
	Weight (Kg)	0.95
	Material	SUS 440C
	Surface Finish	Electroless Nickel Plating
