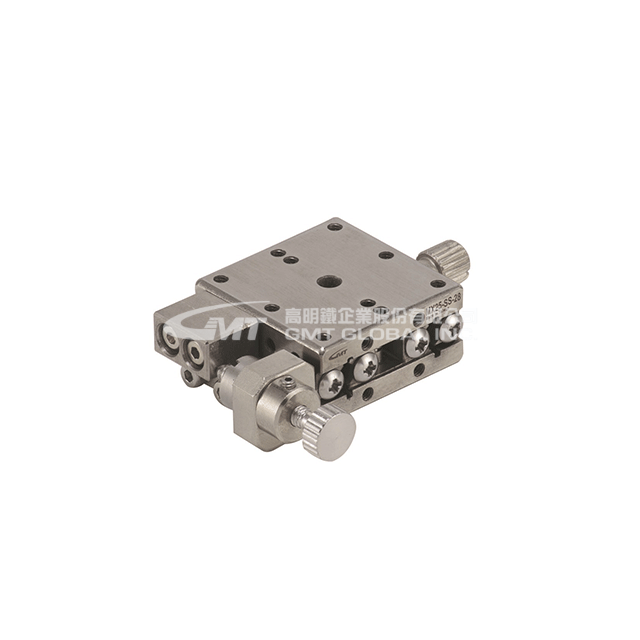

<span style="font-size: 12pt;">X axis manual stage</span> <br /><span style="font-size: 12pt;">Single axis-X axis</span> <br /><span style="font-size: 12pt;">Table size : 25 (mm)</span> <br /><span style="font-size: 12pt;">Travel stroke : ±3.2 (mm)</span> <br /><span style="font-size: 12pt;">Feed position-Side feeding</span> <br /><span style="font-size: 12pt;">★ Guide-Linear ball bearing. Slide way and body is in one unit. Ball moving in single groove is structured by 2 points – contact, and total 4 contact points in dual arc-groove to form strong rail construction.</span> <br /><span style="font-size: 12pt;">★ Transmission Parts-Feeding screw. It is suitable for simple precise moving.</span> <br /><span style="font-size: 12pt;">★ Material- Stainless steel</span>">
Update:2022.4.22
Model No. | MX25-SS-28 | |
Specification | Table Size (mm) | 25 X 25 |
Axis | X-Axis | |
Feed Position | Side | |
Travel Stroke (mm) | ± 3.2 | |
Movement Per Knob Rotation (mm) | 0.5 | |
Straightness Accuracy (μm) | 3 | |
Allowable Loading (Kgf) | 4 | |
Weight (Kg) | 0.07 | |
Material | SUS 440C | |
Surface Finish | Electroless Nickel Plating |
