MX100-SC-28

X axis manual stage
Single axis-X axis
Table size : 100 (mm)
Travel stroke : ±12.5 (mm)
Feed position-Central feeding
★ Guide-Linear ball bearing. Slide way and body is in one unit. Ball moving in single groove is structured by 2 points – contact, and total 4 contact points in dual arc-groove to form strong rail construction.
★ Transmission Parts-Feeding screw. It is suitable for simple precise moving.
★ Material- Stainless steel

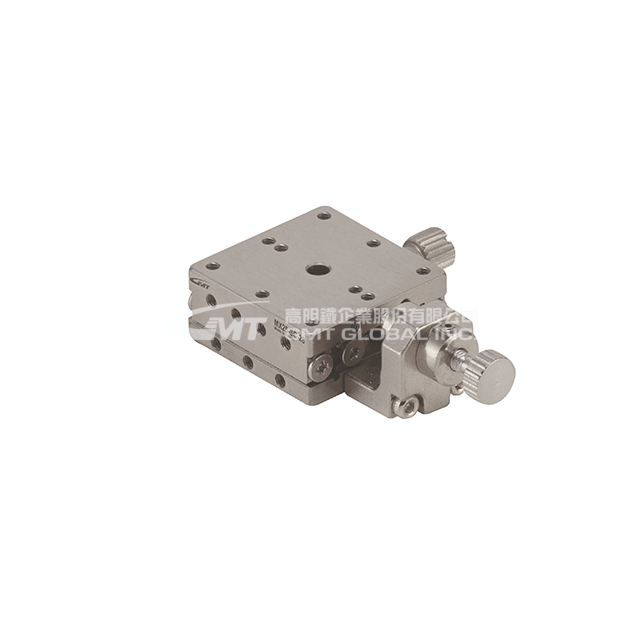

★This product pic. shows as MX25-SC-28.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Contact Us

Update：2022.4.22

Model No.		MX100-SC-28
Specification	Table Size (mm)	100 X 100
	Axis	X-Axis
	Feed Position	Central
	Travel Stroke (mm)	± 12.5
	Movement Per Knob Rotation (mm)	0.5
	Straightness Accuracy (μm)	3
	Allowable Loading (Kgf)	35
	Weight (Kg)	1.33
	Material	SUS 440C
	Surface Finish	Electroless Nickel Plating
