MRE110-A

θ axis Rotary stage – Economy type
Single axis-θ axis
Table size : Ø110 (mm)
★ Guide-brass rotation interface
★ Transmission parts - Shifter
★ Material-Aluminum alloy
★ General connective to MC1B、MC2B、MC4B、MC1C each other.

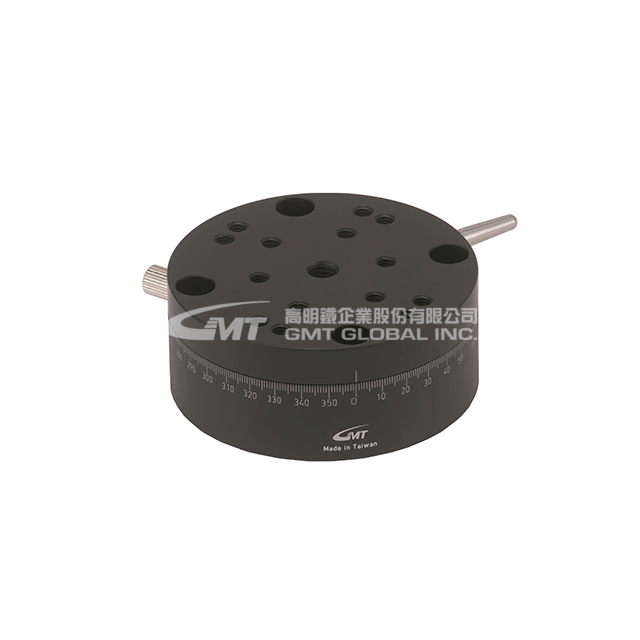

★This product pic. shows as MRE60-A.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Contact Us

Update：2022.5.9

Model No.		MRE110-A
Specification	Table Size (mm)	Ø 110
	Travel Stroke (mm)	Cursory：360°
	Micrometer Min. Reading	1° / Vernier
	Offset (Eccentric) (mm)	0.05
	Allowable Loading (Kgf)	9
	Weight (Kg)	0.66
	Material	Aluminum Alloy
	Surface Finish	Black Anodized

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages

MRE110-A
