MNE2E-25

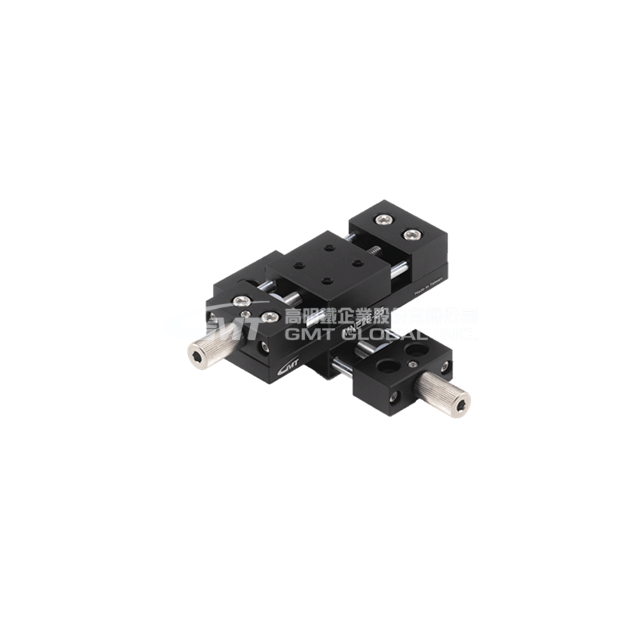

XY axis Manual stage – Simplified stage
Dual axis-XY axis
Travel stroke : ±7 (mm)
★ Guide-Double bars- threading type. The stage table is moved by thread which has been crossed through to the table. The stage table will be feed-movement in Z-axis application. The stage is suitable for heavier loading compared to feeding screw with spring transmission type.
★ Transmission parts – Feeding screw. It is suitable for simple precise tuning.
★ Material-Aluminum Alloy

SKU: MNE2E-25

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Contact Us

Update：2022.5.4

Model No.		MNE2E-25
Specification	Table Size (mm)	25 X 25
	Axis	XY-Axis
	Travel Stroke (mm)	± 7
	Movement Per Knob Rotation (mm)	0.7
	Allowable Loading (Kgf)	1.9
	Weight (Kg)	0.13
	Material	Aluminum Alloy
	Surface Finish	Black Anodized

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages
