MN1A-15

X axis Manual stage – Micro-designed type
Single axis-X axis
Travel stroke : ±5 (mm)
★ Guide-Double bars with single springs.
★ Transmission parts – Feeding screw. It is suitable for simple precise tuning.
★ Material-Aluminum Alloy

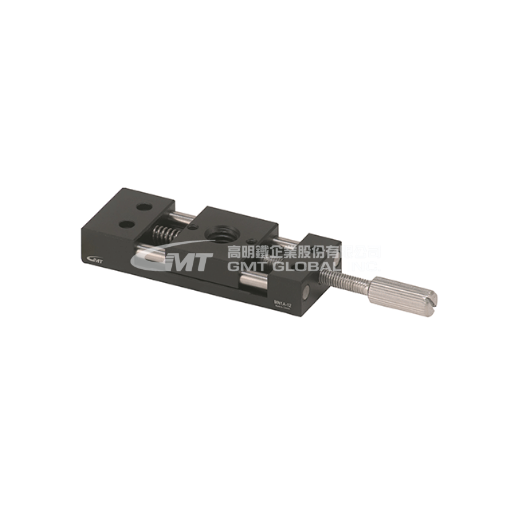

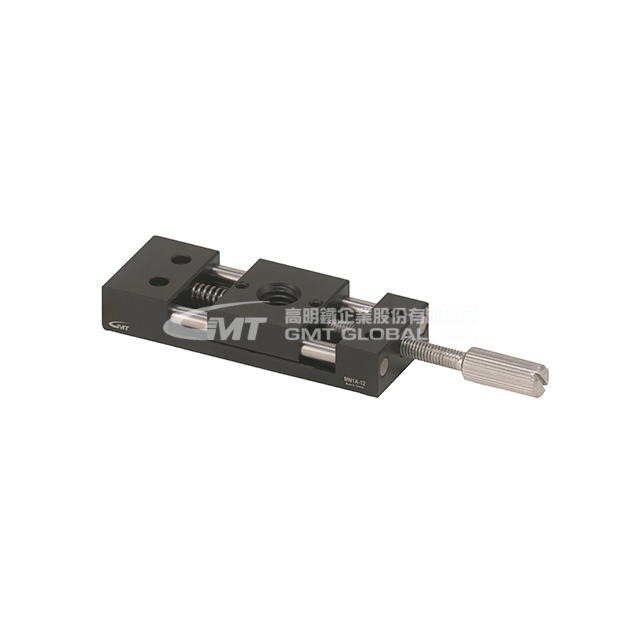

★This product pic. shows as MN1A-12.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
2D/3D Downloads
Specifications
Contact Us

Update：2022.5.4

Model No.		MN1A-15
Specification	Table Size (mm)	15 X 17
	Axis	X-Axis
	Travel Stroke (mm)	± 5
	Straightness Accuracy (μm)	50
	Allowable Loading (Kgf)	1
	Weight (Kg)	0.02
	Material	Aluminum Alloy
	Surface Finish	Black Anodized

Feed Position

Characterisitc of Different Guiding Type

The Main Feeding Mode of Mini Stages
