    Sorry - this product is no longer available

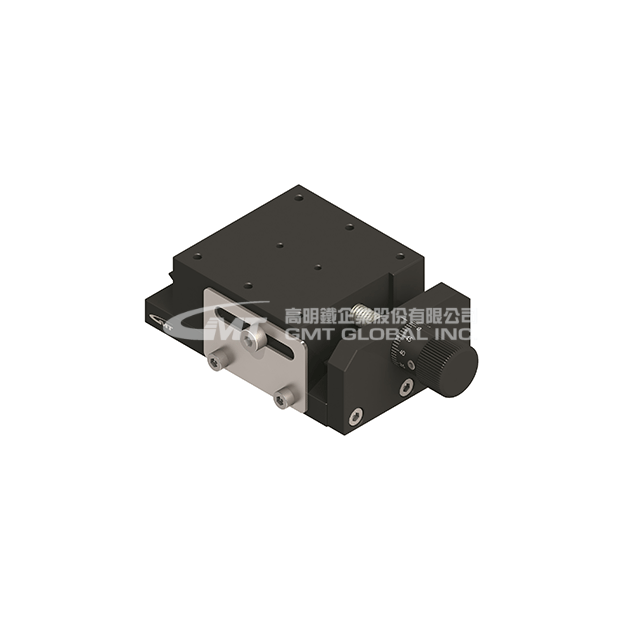

    MC1G-525F


    X axis manual stage
    Single axis-X axis
    Table size : 50x50 (mm)
    Travel stroke : ±11 (mm)
    ★ Guide- Dovetail type – pinion and rack. It is suitable for higher working frequency, requirement of faster movement and large stroke.
    ★ Transmission Parts- Feeding screw. It is suitable for simple precise tuning.
    ★ Material- Aluminum Alloy
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Update：2022.4.26

    Model No.

    MC1G-525F

    Specification

    Table Size (mm)

    50 X 50

    Base Dimensions (mm)

    50 X 79

    Movement Per Knob Cycle (mm)

    0.25

    Knob Minimum Reading

    0.005 mm / Veriner

    Travel Stroke (mm)

    ± 11

    Straightness Accuracy (μm)

    30

    Parallel (μm)

    		50

    Dynamic Parallel (μm)

    40

    Allowable Loading (Kgf)

    5

    Weight (Kg)

    0.27

    Material

    Aluminum Alloy

    Surface Finish

    Black Anodized

    Feed Position



    Characterisitc of Different Guiding Type



    The Main Feeding Mode of Mini Stages
